Blackmagic Design Teranex Mini HDMI to SDI 12G – Converter
Product Overview

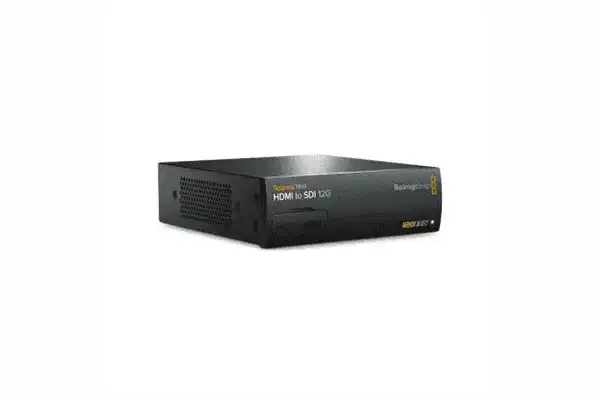

The Blackmagic Design Teranex Mini HDMI to SDI 12G converts an HDMI signal up to Full DCI 4K to 12G-SDI, with two independent SDI outputs for feeding multiple destinations. Built on Teranex video processing, it adds switchable XLR audio inputs, Ethernet control with PoE, and an intelligent thermal design for rack, desktop, or cable-duct installation. It's a professional HDMI-to-SDI 12G converter for broadcast, post, and live-event use.
Product Description

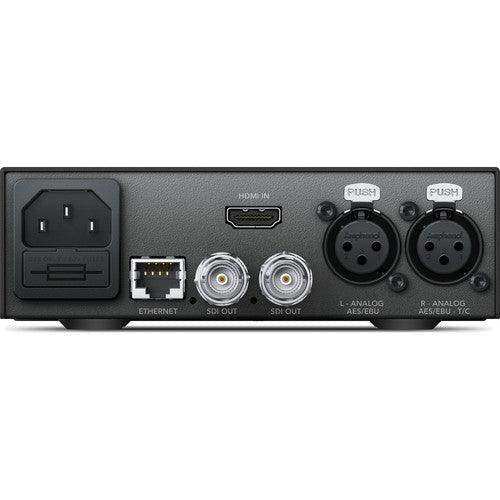

The Teranex Mini HDMI to SDI 12G accepts an HDMI 2.0 input up to Full DCI 4K (4096x2160p60) and routes it out over two independent 12G-SDI outputs at the matching resolution, auto-switching between SD, HD, 2K, and 4K with full re-clocking. You can run 4096x2160p approximately 70 ft over 6G-SDI cable, and lower-resolution signals such as 3G-SDI or HD-SDI considerably farther. Separate audio can be added via full-size XLR inputs switchable between balanced analog (2-channel) and AES/EBU digital (4-channel), with the right XLR configurable for timecode input. A rear Ethernet port allows remote management or PoE power, and a built-in 90–240V supply means you only need a standard IEC cable (sold separately) if not using PoE. The standard front panel has mini switches for instant settings changes and can be swapped for the optional Smart Panel with a spin knob, color LCD, and six buttons to view the conversion, monitor audio, and verify timecode and video standard. Multiple units can be managed over Ethernet from Mac or Windows using the included Converter Utility, and a smart crossflow thermal design keeps units cool when rack-mounted side by side — up to three fit in an optional 1U 19" rack tray. Note that HDMI inputs cannot capture from copy-protected (HDCP) sources.
Key Features
- HDMI to 12G-SDI — Up to Full DCI 4K (4096×2160p60) input to SDI.
- Two independent SDI outputs — Auto-matching SD/HD/3G/6G/12G-SDI, full re-clocking.
- Switchable XLR audio in — Balanced analog or AES/EBU digital; right XLR for timecode.
- Ethernet control and PoE — Remote management or power over Ethernet.
- Smart thermal design — Crossflow cooling for side-by-side rack mounting.
- Flexible mounting — Desktop, cable duct, or three units in an optional 1U rack tray.
- Optional Smart Panel — Spin knob, color LCD, and six buttons replace the mini-switch panel.
- Converter Utility — Manage multiple units from Mac or Windows.
Technical Specifications
| Model | CONVNTRM/AB/HSDI |
| Video Input | 1× HDMI 2.0 Type A |
| Video Outputs | 2× BNC SDI (auto SD/HD/3G/6G/12G) |
| Audio Inputs | 2× XLR — analog (2-ch) or AES/EBU (4-ch); right XLR timecode-capable |
| Max Format | DCI 4K / UHD 4096×2160 & 3840×2160 up to 60p |
| Sampling | SDI 4:2:2 / 4:4:4; audio 48 kHz / 24-bit |
| Control | USB and Ethernet; mini switches; optional Smart Panel |
| Standards | SMPTE 259M–425M; ITU-R BT.601/656 |
| Power | 90–240 VAC (IEC C14) or PoE (48 VDC); 15 W |
| Dimensions | 5.5 × 1.8 × 6.7" / 14 × 4.6 × 17 cm |
| Weight | 1.3 lb / 0.6 kg |
Frequently Asked Questions
What does it convert?
An HDMI input up to Full DCI 4K to two independent 12G-SDI outputs at the matching resolution.
How far can the SDI outputs run?
Around 70 ft for 4096×2160p over 6G-SDI cable; lower-resolution signals run considerably farther.
Can it capture protected HDMI sources?
No — HDMI inputs cannot capture from copy-protected (HDCP) sources.
How is it powered?
Via a built-in 90–240V supply (standard IEC cable, sold separately) or PoE over the Ethernet port.
