Blackmagic Design Teranex Mini Audio to SDI 12G – Converter
Product Overview

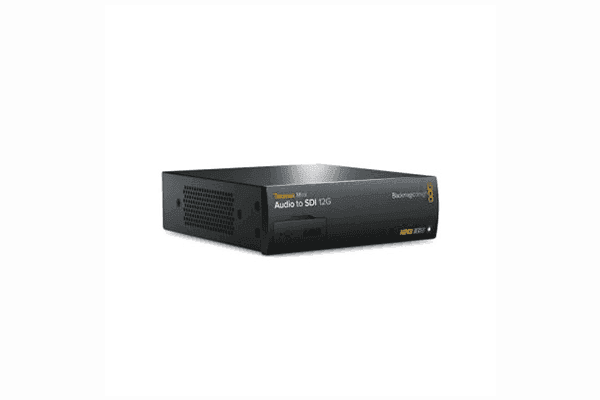

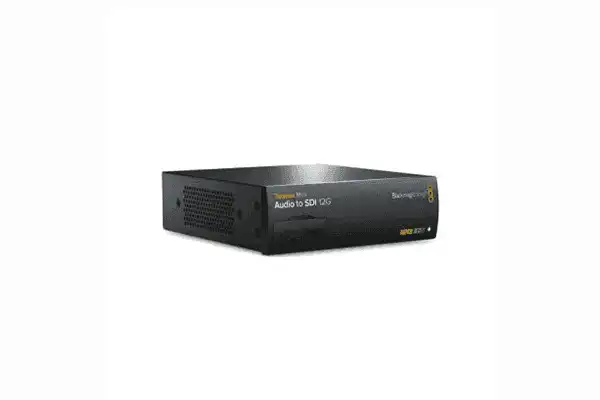

The Blackmagic Design Teranex Mini Audio to SDI 12G embeds external audio into a 12G-SDI signal up to Full DCI 4K, accepting audio from XLR, RCA, or optical S/PDIF and outputting the combined signal over 12G-SDI. Built on Teranex video processing, it adds Ethernet control with PoE and an intelligent thermal design for rack, desktop, or cable-duct installation. It's a professional audio-to-SDI 12G embedder for adding external audio into an SDI workflow.
Product Description

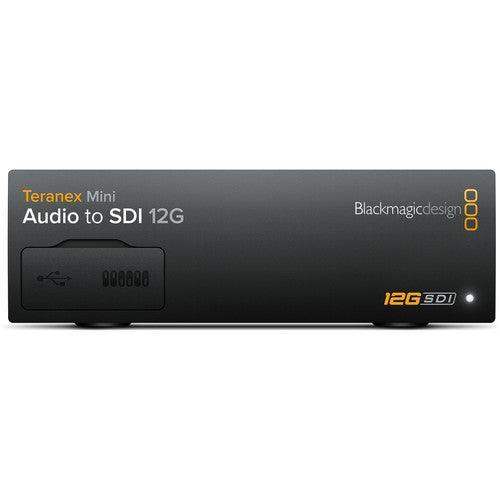

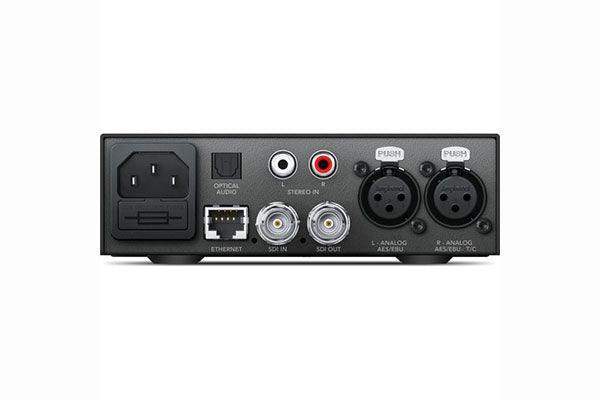

The Teranex Mini Audio to SDI 12G accepts a 12G-SDI input (auto-switching SD/HD/2K/4K up to 4096x2160p) and embeds audio from a diverse input set: two channels of balanced analog or up to four channels of AES/EBU digital via full-size XLR connectors, two channels of unbalanced line-level analog via RCA, or optical S/PDIF via TOSLINK. The combined signal is output over 12G-SDI with full re-clocking, and the right XLR can be configured for timecode input. A rear Ethernet port allows remote management or PoE power, and a built-in 90–240V supply means you only need a standard IEC cable (sold separately) if not using PoE. The standard front panel has mini switches for instant settings changes and can be swapped for the optional Smart Panel with a spin knob, color LCD, and six buttons to view the conversion, monitor audio, and verify timecode and video standard. Multiple units can be managed over Ethernet from Mac or Windows using the included Converter Utility, and a smart crossflow thermal design keeps units cool when rack-mounted side by side — up to three fit in an optional 1U 19" rack tray.
Key Features
- Audio embed to SDI — Embed external audio into SDI signals up to DCI 4K.
- Versatile audio inputs — XLR (analog or AES/EBU), RCA, and optical S/PDIF TOSLINK.
- 12G-SDI in and out — Outputs the combined signal with full re-clocking.
- Ethernet control and PoE — Remote management or power over Ethernet.
- Smart thermal design — Crossflow cooling for side-by-side rack mounting.
- Flexible mounting — Desktop, cable duct, or three units in an optional 1U rack tray.
- Optional Smart Panel — Spin knob, color LCD, and six buttons replace the mini-switch panel.
- Converter Utility — Manage multiple units from Mac or Windows.
Technical Specifications
| Model | CONVNTRM/CB/AUSDI |
| Video Input | 1× 12G-SDI (auto SD/HD/2K/4K, up to 4096×2160p) |
| Video Output | 1× 12G-SDI (with embedded audio) |
| Audio Inputs | XLR analog (2-ch) / AES-EBU (4-ch); RCA (2-ch); optical S/PDIF TOSLINK |
| Timecode | Right XLR configurable for timecode input |
| Audio Sampling | 48 kHz / 24-bit |
| Control | USB and Ethernet; mini switches; optional Smart Panel |
| Standards | SMPTE 259M–425M, ST-2036; ITU-R BT.601/656 |
| Power | 90–240 VAC (IEC C14) or PoE (48 VDC); 15 W |
| Dimensions | 5.5 × 1.8 × 6.7" / 14 × 4.6 × 17 cm |
| Weight | 1.3 lb / 0.6 kg |
Frequently Asked Questions
What does it do?
It embeds external audio into a 12G-SDI signal (up to DCI 4K) and outputs the combined signal over 12G-SDI.
What audio inputs are available?
XLR (balanced analog or AES/EBU digital), RCA line-level, and optical S/PDIF via TOSLINK.
Can it carry timecode?
Yes — the right XLR can be configured for timecode input.
How is it powered?
Via a built-in 90–240V supply (standard IEC cable, sold separately) or PoE over the Ethernet port.
