Blackmagic Design Teranex Mini Analog to SDI 12G – Converter
Product Overview

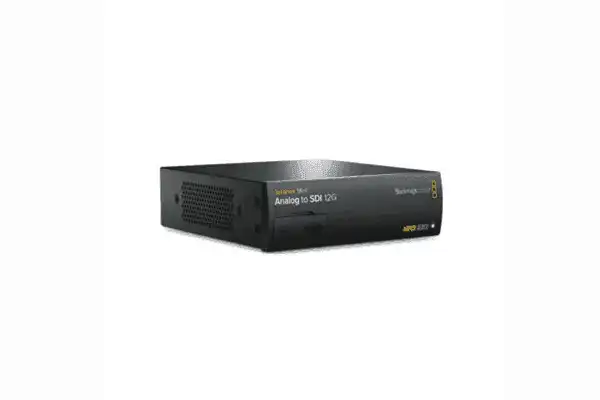

The Blackmagic Design Teranex Mini Analog to SDI 12G digitizes analog video — component, composite (NTSC/PAL), and S-Video — to SDI, with two independent 12G-SDI outputs for feeding modern equipment. Built on Teranex video processing, it adds switchable XLR audio inputs, Ethernet control with PoE, and an intelligent thermal design for rack, desktop, or cable-duct installation. It's a professional analog-to-SDI 12G converter for bringing legacy sources into an SDI workflow.
Product Description

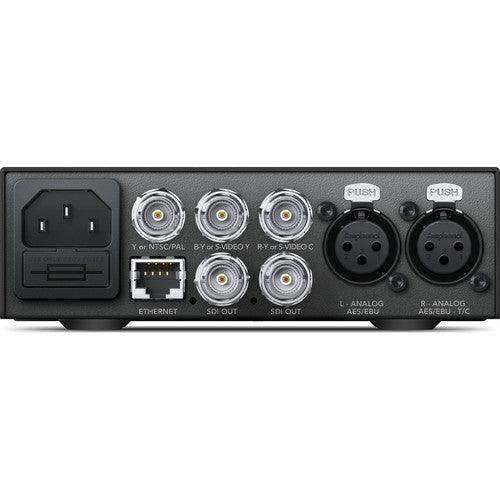

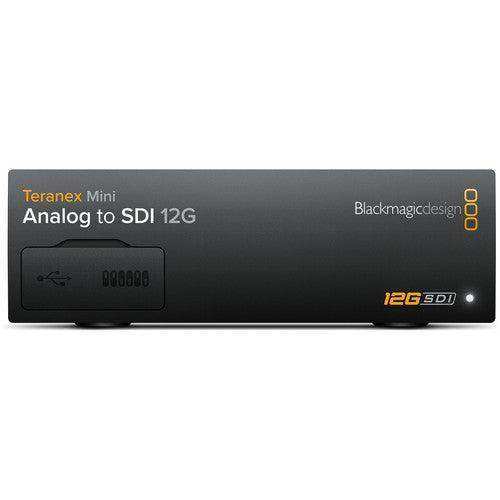

The Teranex Mini Analog to SDI 12G converts an analog input — component SD/HD, NTSC, PAL, or S-Video — to SDI and routes it out over two independent SDI outputs that auto-match SD, HD, 3G, 6G, or 12G-SDI. You can run higher-resolution signals approximately 70 ft over 6G-SDI cable, and lower-resolution signals such as 3G-SDI or HD-SDI considerably farther. Separate audio can be added via full-size XLR inputs switchable between balanced analog (2-channel) and AES/EBU digital (4-channel), with the right XLR configurable for timecode input. A rear Ethernet port allows remote management or PoE power, and a built-in 90–240V supply means you only need a standard IEC cable (sold separately) if not using PoE. The standard front panel has mini switches for instant settings changes and can be swapped for the optional Smart Panel with a spin knob, color LCD, and six buttons to view the conversion, monitor audio, and verify timecode and video standard. Multiple units can be managed over Ethernet from Mac or Windows using the included Converter Utility, and a smart crossflow thermal design keeps units cool when rack-mounted side by side — up to three fit in an optional 1U 19" rack tray.
Key Features
- Analog to SDI — Digitizes component, composite (NTSC/PAL), and S-Video to SDI.
- Two independent SDI outputs — Auto-matching SD/HD/3G/6G/12G-SDI, full re-clocking.
- Switchable XLR audio in — Balanced analog or AES/EBU digital; right XLR for timecode.
- Ethernet control and PoE — Remote management or power over Ethernet.
- Smart thermal design — Crossflow cooling for side-by-side rack mounting.
- Flexible mounting — Desktop, cable duct, or three units in an optional 1U rack tray.
- Optional Smart Panel — Spin knob, color LCD, and six buttons replace the mini-switch panel.
- Converter Utility — Manage multiple units from Mac or Windows.
Technical Specifications
| Model | CONVNTRM/BB/ANSDI |
| Video Input | Analog component SD/HD, NTSC, PAL, S-Video |
| Video Outputs | 2× BNC SDI (auto SD/HD/3G/6G/12G) |
| Audio Inputs | 2× XLR — analog (2-ch) or AES/EBU (4-ch); right XLR timecode-capable |
| Analog Input Formats | NTSC/PAL, 1080i, 720p |
| Sampling | SDI 4:2:2 / 4:4:4; audio 48 kHz / 24-bit |
| Control | USB and Ethernet; mini switches; optional Smart Panel |
| Standards | SMPTE 259M–424M; ITU-R BT.601/656 |
| Power | 90–240 VAC (IEC C14) or PoE (48 VDC); 15 W |
| Dimensions | 5.5 × 1.8 × 6.7" / 14 × 4.6 × 17 cm |
| Weight | 1.4 lb / 0.63 kg |
Frequently Asked Questions
What does it convert?
Analog video — component, composite (NTSC/PAL), and S-Video — to SDI, with two independent SDI outputs.
What resolutions does the analog input support?
Standard definition (NTSC/PAL) and HD up to 1080i / 720p.
How is audio handled?
Via full-size XLR inputs switchable between balanced analog and AES/EBU digital; the right XLR can carry timecode.
How is it powered?
Via a built-in 90–240V supply (standard IEC cable, sold separately) or PoE over the Ethernet port.
