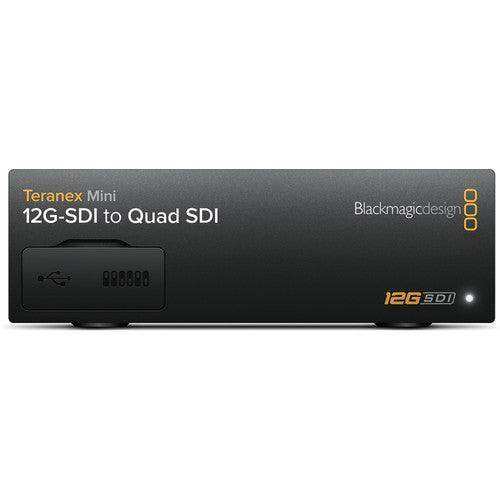

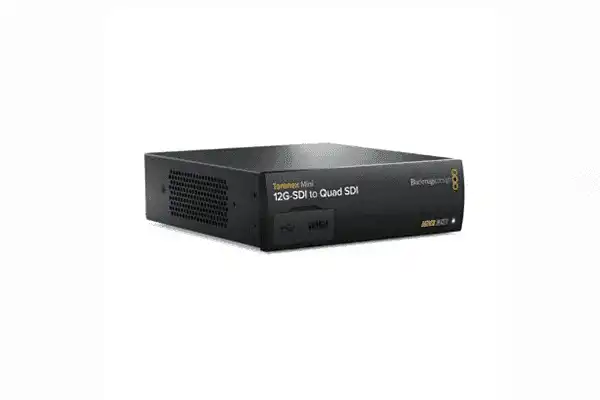

Blackmagic Design Teranex Mini 12G-SDI to Quad SDI Converter - CONVNTRM/DB/SDIQD

Blackmagic Design SKU: CONVNTRM/DB/SDIQD
No reviews

Price:
Sale price$545.00

Description

Distribute a high-resoution 12G-SDI source to Quad-Link SDI equipment with the Teranex Mini 12G-SDI to Quad SDI Converter from Blackmagic Design. Housed in a low-profile enclosure, this Teranex Mini Converter seamlessly fits in studio and post-production workflows or anywhere with multiple displays or a video wall design. The unit features one 12G-SDI input, one 12G-SDI loop output, and four 3G-SDI distribution outputs that support multirate auto-switching between DCI 4K, UHD 4K, HD, and SD sources and destinations. The unit also supports up to 16 channels of broadcast-quality 24-bit, 48 kHz audio.

DaVinci Resolve Studio, from Blackmagic Design, is a renowned advanced color correction software and now also a full-fledged, non-linear editing system — it even allows to you to import projects from other NLEs, such as from Premiere Pro, as XML files. You can edit, color correct, finish, and deliver all from one system. Moreover, Resolve is highly sophisticated and oriented at the same time toward the individual user, large collaborative teams, and the growing studio owner. It's completely scalable and resolution independent, so it can be used on set, in a small studio, or integrated into large production pipelines.

Resolve is a node-based color grading system — nodes being similar layers — where each node can have color correction, isolated areas (power windows), and effects, and in which unlimited numbers of nodes can be joined together sequentially or in parallel. In all, you can combine grades, effects, mixers, keys, and plug-ins in any order to create limitless color effects and unique looks. This is the core of Resolve's color grading functionality, and there are hundreds of advanced features and capabilities in addition, such as grading from raw Files, automatic color matching, and 3D tracking.

  • 1 x 12G-SDI Input, 12G-SDI Loop Output
  • 4 x 3G-SDI Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 16-Channel, 24-Bit, 48 kHz Audio Support
  • Control via DIP Switches or Software
  • Power via PoE or IEC C14 Power Cable
  • Ethernet or USB for Firmware Updates

Blackmagic Design Teranex Mini Specs

Video Inputs 1 x BNC Female
Audio Inputs None
Video Outputs 4 x BNC (3G-SDI / HD-SDI / SD-SDI) Female
1 x BNC (12G-SDI) Female (Loop Output)
Audio Outputs None
Other I/O 1 x RJ45 LAN, PoE Input/Output
1 x USB-A Firmware Input
Expansion Slots None
Input Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Output Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines 50 fps
480i / 525 lines 59.94 fps
Embedded Audio SDI: 16-Channel
Standards
Video Standard Compliance SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
Wi-Fi None
Power
Power I/O 1 x IEC C14 Input
PoE Support PoE+ 802.3at
Power Consumption Device: 90 to 240 VAC (16 W)
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm
Weight 1.28 lb / 581 g
Packaging Info
Package Weight 1.955 lb
Box Dimensions (LxWxH) 9.05 x 7.9 x 2.35"
