Blackmagic Design ATEM Micro Camera Panel – 4-Camera CCU Control
Blackmagic Design ATEM Micro Camera Panel – 4-Camera CCU Control is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Blackmagic Design ATEM Micro Camera Panel – 4-Camera CCU Control
Product Overview

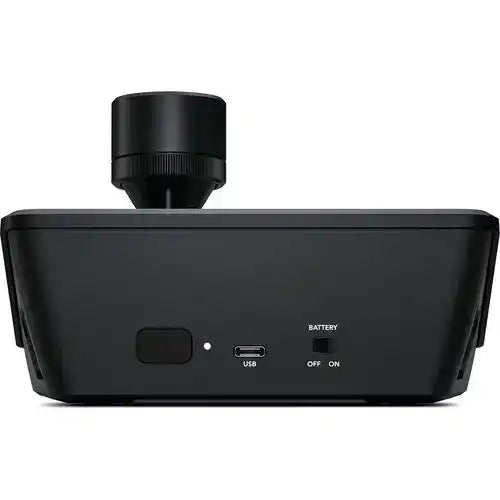

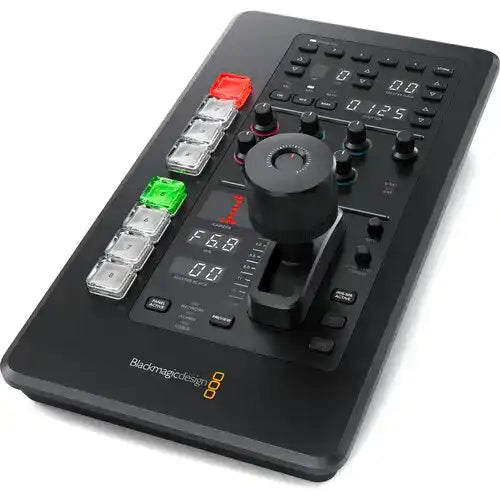

The Blackmagic Design ATEM Micro Camera Panel (SWPANELCCU1) is a compact CCU control panel for managing up to four Blackmagic Studio or URSA Broadcast cameras remotely. It brings broadcast-style camera control unit adjustments — iris, master black, gain, and color balance — to a small footprint that fits on a production desk. As an Ethernet camera control panel for ATEM systems, it lets a single operator match and balance multiple cameras during live production.
Product Description
The ATEM Micro Camera Panel gives operators hands-on CCU control of up to four cameras from a portable tabletop surface. Dedicated controls for iris and master black handle exposure and image balance, while gain and color-balance controls let an operator match cameras for a consistent look across a multi-camera shoot. It connects to ATEM switchers over Ethernet for plug-and-play setup and reliable communication in both studio and field environments, and includes tally. Compared with the full-sized ATEM Camera Control Panel, this micro panel controls the same four cameras with the same iris, master black, and color-balance functions, but in a compact, more portable, lower-cost form factor — where the full panel adds expanded controls and LCD displays. For multi-camera color matching during live events, news, sports, and streaming, this 4-camera control unit provides the core CCU functions in a desk-friendly package.
Key Features
- Controls up to 4 cameras — CCU control of multiple Blackmagic Studio or URSA Broadcast cameras from one panel.
- Iris and master black — Precision exposure and image-balance adjustment per camera.
- Gain and color balance — Fine-tune white balance and match cameras for consistent output.
- Ethernet connectivity — Plug-and-play setup with ATEM switchers over a standard network.
- Tally support — Indicates on-air status as part of the control workflow.
- Compact, portable build — Tabletop footprint with tactile knobs and buttons for studio or field use.
Typical Applications
- Broadcast studio — Operator CCU control and camera matching for multi-camera production.
- House of worship — Balancing multiple cameras for live services and streaming.
- Auditorium — Portable camera control for live events from the production desk.
Technical Specifications
| Model | SWPANELCCU1 |
| Control Channels | 4 cameras |
| Connectivity | Ethernet 10/100/1000 Base-T |
| Control Functions | Iris, master black, gain, color balance, tally |
| Compatible Cameras | Blackmagic Studio Camera, URSA Broadcast |
| Compatible Switchers | ATEM series with camera control support |
| Power Supply | 12V DC external |
| Dimensions | Approx. 13.0 × 5.0 × 3.0" |
| Weight | Approx. 2.5 lb / 1.13 kg |
Frequently Asked Questions
How many cameras can it control?
Up to four Blackmagic Studio or URSA Broadcast cameras.
How does it connect to the system?
Over Ethernet (10/100/1000 Base-T) to an ATEM switcher with camera control support, for plug-and-play setup.
What camera parameters can it adjust?
Iris, master black, gain, and color balance, plus tally — the core CCU functions for matching cameras.
How does it compare to the full ATEM Camera Control Panel?
It controls the same four cameras with the same core functions in a compact, more portable, lower-cost form factor; the full panel adds expanded controls and LCD displays.
