Blackmagic Design ATEM 1 M/E Constellation 4K – 10-Input Switcher

Product Overview

The Blackmagic Design ATEM 1 M/E Constellation 4K is a compact 1 M/E Ultra HD live production switcher with 10 standards-converted 12G-SDI inputs. Part of the ATEM Constellation family, it brings advanced broadcast features — ATEM Advanced Keyers, DVE, media players, multiview, and a built-in Fairlight audio mixer — into a rack-mount chassis with a built-in control panel.

Product Description

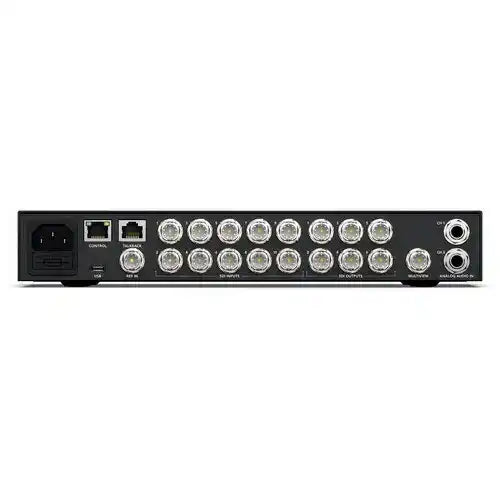

The 1 M/E Constellation 4K gives you 10 independent 12G-SDI inputs, each with its own standards converter so sources running at different formats re-sync to the switcher automatically. It includes 6 SDI outputs that can be independently routed from any input or internal source, 4 ATEM Advanced Keyers, a DVE, two media players, and a built-in multiview. The Fairlight audio mixer provides a 6-band parametric EQ, compressor, limiter, noise gate, and expander on each input.

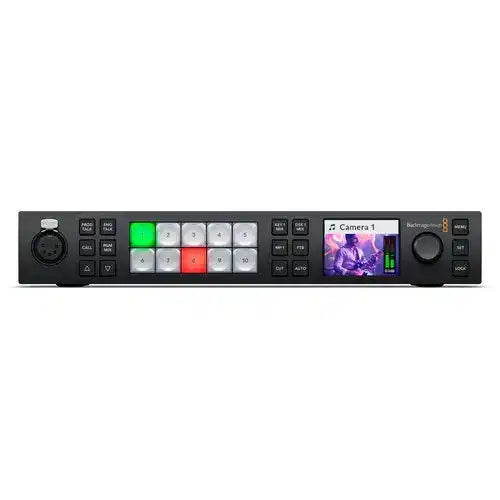

Like the rest of the Constellation line, it uses professional program/preview switching — the same workflow used by broadcasters — so operators preview a source before cutting it to air, reducing mistakes. The compact rack-mount design has a built-in front control panel with a large LCD for program output and on-screen menus, plus a 5-pin talkback headset connector. The free ATEM Software Control for macOS and Windows is included, and you can add a 1 M/E ATEM Advanced Panel for hardware control. A USB-C connection lets the switcher act as a webcam source for Zoom, Teams, OBS, and similar software.

Key Features

• 10× 12G-SDI inputs — Each with a dedicated standards converter.
• 6 SDI outputs — Independently routable from any source.
• 4 ATEM Advanced Keyers — Chroma, luma, pattern, and DVE keying.
• Fairlight audio mixer — 6-band EQ, compressor, limiter, expander per input.
• DVE & media players — Picture-in-picture and two media players.
• Built-in multiview — Monitor multiple sources on one display.
• Front control panel — Walk-up operation with LCD and talkback.
• USB webcam output — Works with Zoom, Teams, and streaming apps.

Typical Applications

• House of worship — Professional multi-camera services that volunteers can learn quickly.
• Broadcast studio — News, interviews, and virtual sets with program/preview workflow.
• Auditorium and live events — Concerts, theater, and stage productions.
• Training rooms — Broadcast-style training on industry-standard switching.
• All-hands and conference spaces — Multi-camera internal broadcasts and webcasts.

Technical Specifications

FAQ

How does this compare to the 2 M/E and 4 M/E Constellation 4K? The 1 M/E model has 10 inputs and 4 keyers; the 2 M/E has 20 inputs, 8 keyers, and SuperSource; the 4 M/E has 40 inputs, 16 keyers, and dual SuperSource.

Are the inputs SDI or HDMI? All 10 inputs are 12G-SDI, each with its own standards converter.

Can it be controlled from hardware? Yes — the free ATEM Software Control is included, and you can add a 1 M/E ATEM Advanced Panel.

Can I use it as a webcam for streaming? Yes — the USB-C output appears as a webcam in 1080HD to video and streaming software.

Are all features included? Yes — there are no license fees; multiview, DVE, keyers, and the audio mixer are always enabled.
