Blackmagic Design Streaming Decoder 4K – Hardware Decoder

Product Overview

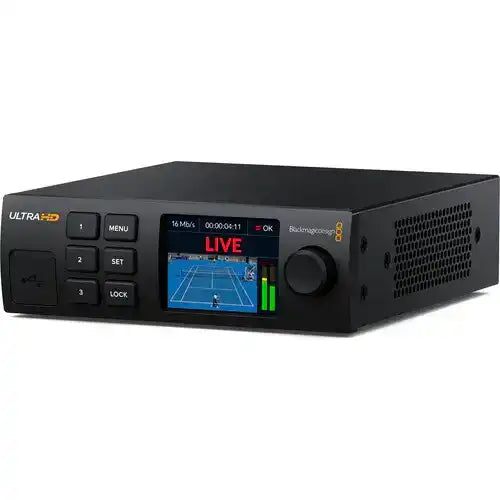

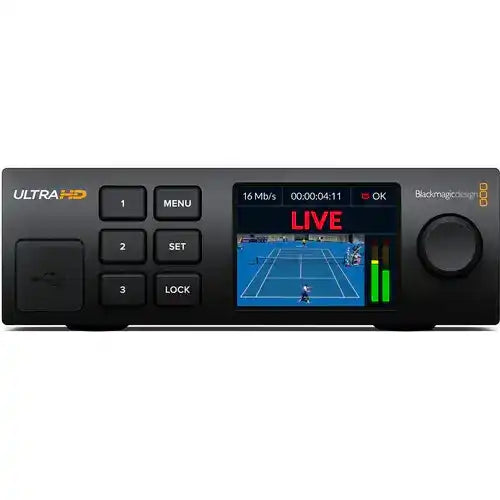

The Blackmagic Design Streaming Decoder 4K converts H.264 or H.265 streams back into SDI and HDMI video at up to DCI 4K60. It's the receiving end for streams from the Blackmagic Streaming Encoder or from Blackmagic cameras with built-in streaming, enabling point-to-point video between remote locations. A 12G-SDI reference input carries SDI tally, camera control, and talkback back to the encoder, and USB-C phone tethering provides automatic failover if the internet drops.

Product Description

This compact 1U decoder turns an incoming H.264/H.265 SRT or RTMP stream into SDI and HDMI output for monitors, switchers, and recorders, decoding up to 4096×2160 at 60p. Many Blackmagic cameras — including the Studio Camera Pro, PYXIS, URSA Cine, and URSA Broadcast G2 — can stream directly, so the decoder enables point-to-point links without extra hardware; for cameras without built-in streaming, the Streaming Encoder is used at the source. A 12G-SDI reference input sends SDI tally, camera control, and talkback back to the encoder. Front and rear USB-C ports tether 4G/5G phones, and if the internet connection fails the unit automatically switches to the phone's data connection, with Ethernet or phone prioritized as needed. At only 5.5" wide it sits up to three across in 1U of rack space, and it ships with the Blackmagic Streaming Utility software.

Key Features

• Decodes to 4K — H.264/H.265 to SDI and HDMI up to DCI 4K60.
• Camera streaming — Receives direct streams from streaming-capable Blackmagic cameras.
• Return path — 12G-SDI reference input for tally, camera control, and talkback.
• Phone failover — USB-C tether to 4G/5G phones with automatic internet failover.

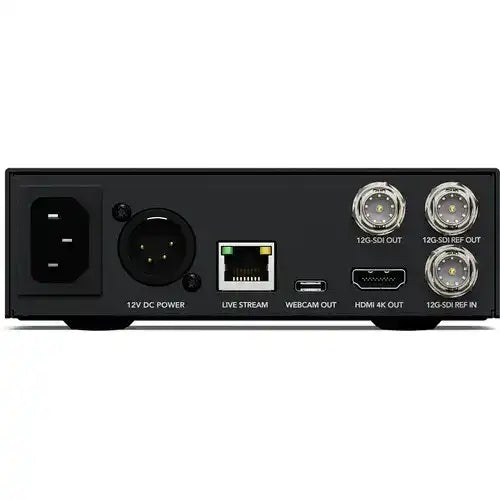

• Multiple outputs — Two 12G-SDI outputs plus HDMI 2.0.
• Compact rack fit — 5.5" wide; up to three units in 1U.
• Software included — Blackmagic Streaming Utility.

Typical Applications

• Broadcast studio — Receiving remote camera streams into an SDI/HDMI production chain.
• House of worship — Decoding a streamed feed for displays or recording at a second site.
• Auditorium — Point-to-point video between venues for live events.

Technical Specifications

FAQ

What does it pair with? The Blackmagic Streaming Encoder, or Blackmagic cameras with built-in streaming such as the Studio Camera Pro, PYXIS, URSA Cine, and URSA Broadcast G2.

What resolution can it decode? Up to 4096×2160 (DCI 4K) at 60p.

What happens if the internet drops? It automatically switches to a tethered 4G/5G phone's data connection; you can prioritize Ethernet or phone.

Can it send tally and talkback back to the source? Yes — a 12G-SDI reference input carries SDI tally, camera control, and talkback back to the encoder.
