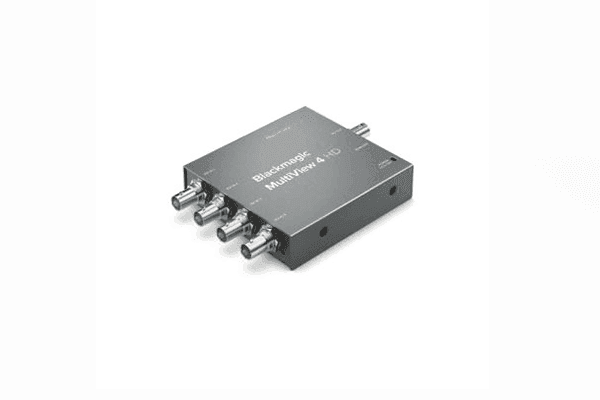

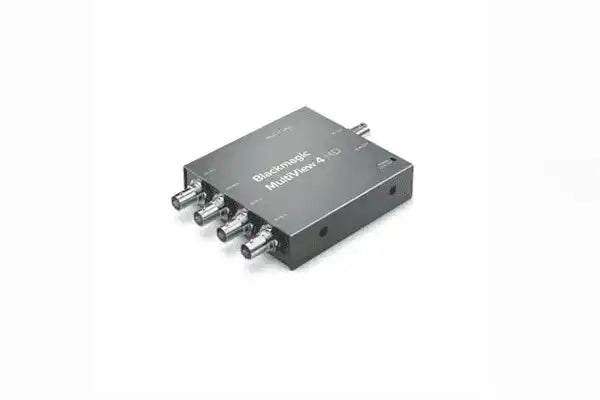

Blackmagic Design MultiView 4 HD - HDL-MULTIP3G/04HD

The Blackmagic Design MultiView 4 HD is a compact mini-converter that enables you to display up to four separate SDI streams via its HDMI or 10-bit SDI multiview outputs. This unit supports SD/HD/3G-SDI formats, and features automatic signal detection, SDI re-clocking, and monitor EDID support.

Each view can display custom overlays like labels and audio meters, and the integrated USB 2.0 interface can be used for updates. The MultiView 4 HD's metal housing measures approximately 5.3 x 3.6", and it includes a power supply with international adapters.

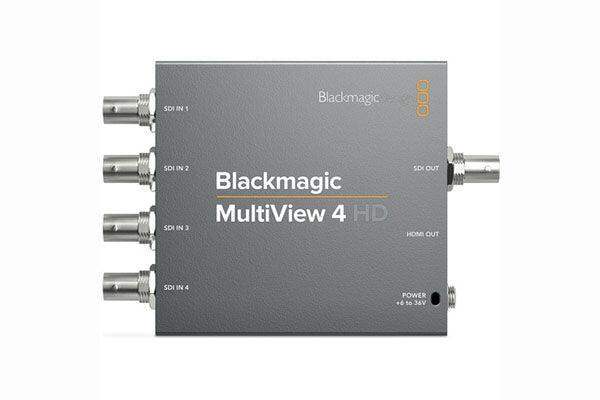

Four SDI inputs output to one SDI and one HDMI multiview
Automatic signal detection, SDI output re-clocking
Monitor any combination of HD or SD formats, and frame rates

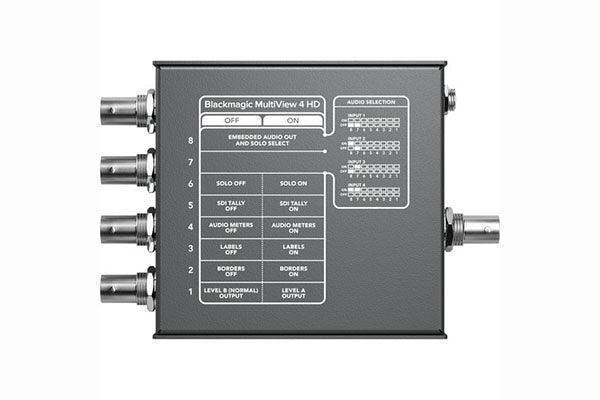

Display custom labels, audio metering, and more on each view

Blackmagic Design MultiView 4 HD Specs

Interfaces

Input	4 x BNC (3G-SDI)
Output	1 x BNC (3G-SDI) 1 x HDMI

Standards

Video Standard Compliance	SMPTE 259M/292M/296M/310M/425M-B ITU -R BT.601/BT.656
Reclocking	No
HDR Compatibility	None
HDCP Support	None
EDID Support	None
Audio Decoding	None

Transmission

Video Format	SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) DCI 2K 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps
Maximum Sampling Rate	48 kHz / 24-Bit

CPU

OS Compatibility

macOS 10.15 macOS 11.1 or Later Windows 10 or Later (64-Bit Only) *As of July, 2020: Check with manufacturer for the most up-to-date compatibility

Power

Power Connector	1 x Barrel Input
Power Consumption	6 to 36 VDC (5.5 W)

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90%

General

LED Indicators	No
Dimensions	4.8 x 3.1 x 1.2" / 123.0 x 79.5 x 29.5 mm
Weight	8.53 oz / 0.24 kg

Packaging Info

Package Weight	1.07 lb
Box Dimensions (LxWxH)	5.75 x 5.55 x 2.55"
