Blackmagic Design MultiView 16 - HDL-MULTIP6G/16
Product Overview
The Blackmagic Design MultiView 16 displays up to sixteen SD, HD, or 4K sources on a single Ultra HD monitor, with selectable 4, 9, or 16 view layouts and full re-synchronization of every input. Sixteen 10-bit 6G-SDI inputs each include a loop output, and HD-SDI, 6G-SDI, and HDMI multi-view outputs are provided, all in a compact 1 RU chassis for live production and broadcast monitoring.
Key Specs
- Monitors up to 16 SD/HD/4K sources on one Ultra HD display
- 16x 10-bit 6G-SDI inputs with loop outputs
- 4, 9, or 16-view layouts with full re-sync
- HD-SDI, 6G-SDI, and HDMI multiview outputs
- 1 RU machined aluminum; built-in power supply
Product Description
The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high-resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

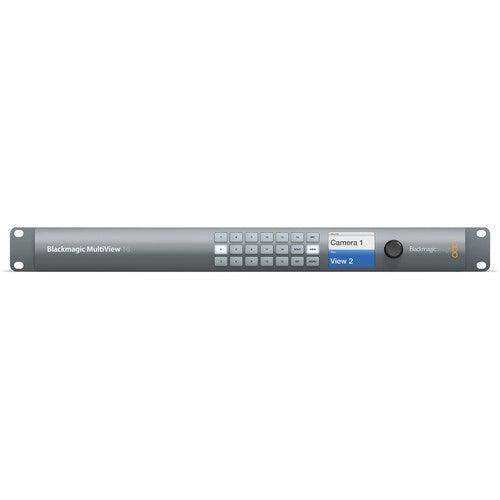

Housed in a 1 RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 100 to 240 VAC.
- Supports up to 16 views on an HD or UHD monitor
- Mix SD, HD, and UHD 4K sources on the same display
- 2 x 2, 3 x 3, or 4 x 4 grids
- Customize your display with labels, audio meters, tally indicators, and more
- Choose which audio source is routed to the video output
Features
- 16 x 6G-SDI Inputs with Loop Outputs
- 1 x HDMI, 4 x SDI Multiview Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 2 x 2, 3 x 3, 4 x 4 Multiview Grids
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- 1 RU Machined Aluminum Chassis
- Built-In Multi-Voltage Power Supply
Specifications
Blackmagic Design MultiView 16 Specs

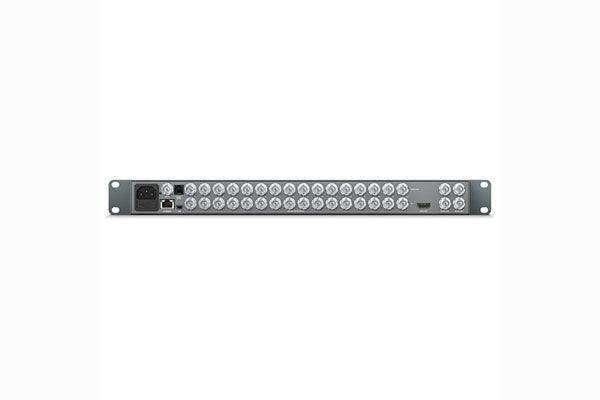

| Input | 16 x BNC (3G-SDI / 6G-SDI / HD-SDI) |
| Embedded Audio | SDI |
| Output | 16 x BNC (6G-SDI / HD-SDI / SD-SDI, Looping) 2 x BNC (6G-SDI) 2 x BNC (HD-SDI) 1 x HDMI |
| Other I/O | 1 x RJ45 (RS-422) 1 x RJ45 (10/100 Mbps Ethernet) 1 x Mini-USB 2.0 |
| Video Standard Compliance | SMPTE 259M/292M/296M/425M-B ITU -R BT.601/BT.656 |
| Reclocking | Yes |
| HDR Compatibility | None |
| HDCP Support | Yes |
| EDID Support | Yes |
| Video Format | SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K: 24 fps UHD 4K: 23.98/24/25/29.97/30 fps DCI 2KPsF: 23.98/24/25 fps DCI 2K: 23.98/24/25 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 59.94 fps PAL: 50 fps |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Maximum Data Rate | 6 Gb/s |
| OS Compatibility | macOS 10.15 to 11.1 or Later Windows 10 (64-Bit Only) *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Connector | 1 x IEC C14 Input |
| Power Consumption | 90 to 240 VAC (45 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Rack Form Factor | 1 RU |
| Certifications | FCC Class A *as per Manufacturer |
| Maximum Multiple Display Configuration | 4 x 4 |
| Material of Construction | Metal |
| Dimensions | 19.0 x 6.0 x 1.7" / 482.6 x 152.4 x 43.2 mm |
| Weight | 5.07 lb / 2.3 kg |
| Package Weight | 5.8 lb |
| Box Dimensions (LxWxH) | 19.3 x 7.5 x 3.4" |
Frequently Asked Questions
How many sources can it show?
Up to 16, in 2x2, 3x3, or 4x4 layouts on a single Ultra HD monitor.
Can it mix formats?
Yes, SD, HD, and UHD 4K sources can be combined and are re-synchronized.
How is it controlled?
Via the front-panel buttons, spin knob, and LCD, or remotely over Ethernet.
