Blackmagic Design Sync Generator - CONVMSYNC
Product Overview

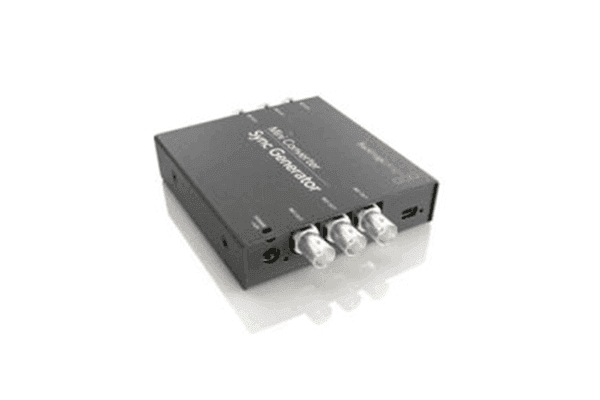

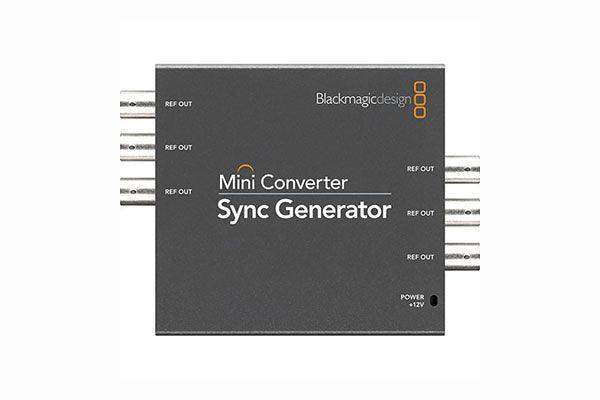

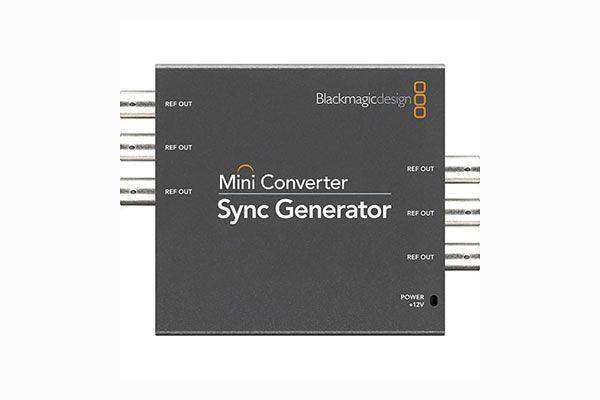

The Blackmagic Design Sync Generator is a compact Mini Converter that outputs a stable reference signal in HD tri-level sync or SD black burst on six BNC outputs, locking multiple devices to a common timing reference in a broadcast facility.
Key Specs
- Mini Converter reference/sync generator
- HD tri-level sync or SD black burst output
- Six BNC outputs
Product Description
The Blackmagic Design CONVMSYNC is a sync generator. This generator will generate a reference signal in either high definition or standard definition parmeters. It is part of the Mini Converter series and offers six BNC outputs.
Space Saving
Broadcast Converter models are extremely compact, so you can install in the front or rear side of equipment racks, saving valuable equipment space.
Security
This device features a handy cable tie point to lock the power down tight and prevent your power being disconnected.
Formats
Many video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.
HD or SD
Tri-level high definition or standard definition black burst can be selected for the matching video format needed.
Features
- Mini Converter Series
- Six Output
- Tri-Sync or Black Burst
Specification
Blackmagic Design CONVMSYNC Specs
| Output | Reference Output x6, Analog Black Burst or Tri-Level Sync, on BNC connectors |
| Input | None |
| Television System | 625/25 PAL 525/29.97 NTSC 1080PsF23.98 1080PsF24 1080i50 1080i59.94 720p50 720p59.94 Selectable |

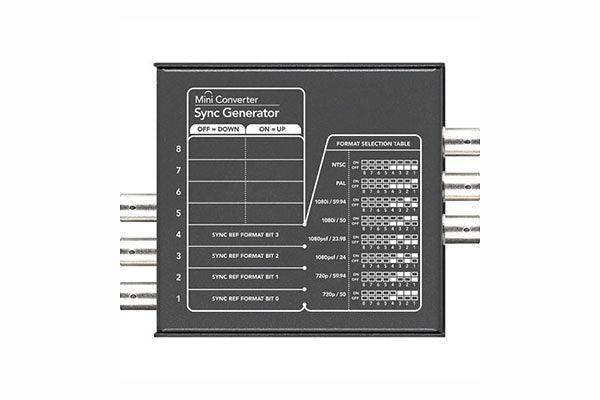

| Control | Dip Switch Format Selection |
| Power Source | 12VDC on an AC Power Adapter |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.6 x 2.55" |
Frequently Asked Questions
What does it output?
A reference signal (tri-level sync or black burst) on six BNC outputs.
Why use it?
To lock multiple devices to a common timing reference in a facility.
