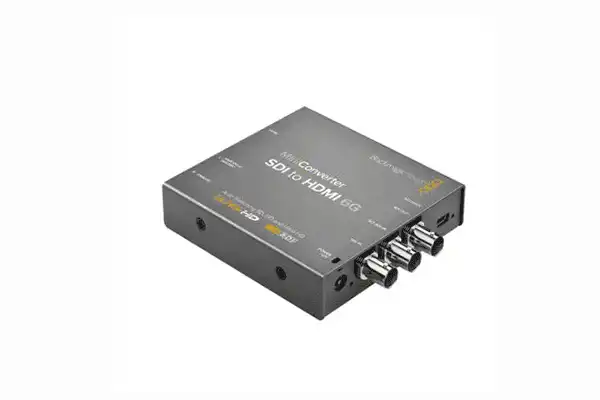

Blackmagic Design Mini Converter - SDI to HDMI 6G - CONVMBSH4K6G

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVMBSH4K6G
No reviews
Price:
$199.00

Description

The Blackmagic Design Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected!

  • The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.
  • The device is powered by an included 12V power supply and includes international socket adapters.
  • 4:2:2 Sampling and color precision
  • HD scaler and SD down-conversion
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
  • Down-conversion for monitoring Ultra HD on HD monitors
  • Built-in 3D LUTs
  • HDMI instant lock for instant video display when an SDI input is connected
  • 2 x 4K SDI Input
  • 1 x HDMI Type A and 1 x SDI Output
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • 24-Bit, 48 kHz Audio
  • Analog & AES-EBU Digital Audio Outputs
  • De-Embeds Audio from SDI
  • Settings via Mini Switches or Software
  • USB 2.0 Port for Firmware Updates
  • 12V Universal Power Supply Included

Blackmagic Design CONVMBSH Specs
Video Inputs 2 x BNC (6G-SDI)
Input Video Format SDI
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30 fps
DCI 2K 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs None
Video Outputs 1 x HDMI
1 x BNC (6G-SDI)
Output Video Format HDMI (4:4:4/4:2:2 RGB, YUV)
UHD 4K at 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines
480i / 525 lines
Audio Outputs 2 x 1/4" TRS Stereo Analog Female
HDR Compatibility Not Specified by Manufacturer
Expansion Slots None
Wi-Fi None
Power
Power I/O 1 x Barrel (12 to 31 VDC) Input
Power Consumption Device: 12 to 18 VDC (5.2 W)
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90% (Non-Condensing)
General
Dimensions 4.49 x 3.63 x 0.9" / 114.05 x 92.2 x 22.9 mm
Weight 9.06 oz / 257 g
Packaging Info
Package Weight 1.2 lb
Box Dimensions (LxWxH) 6 x 6 x 2"
