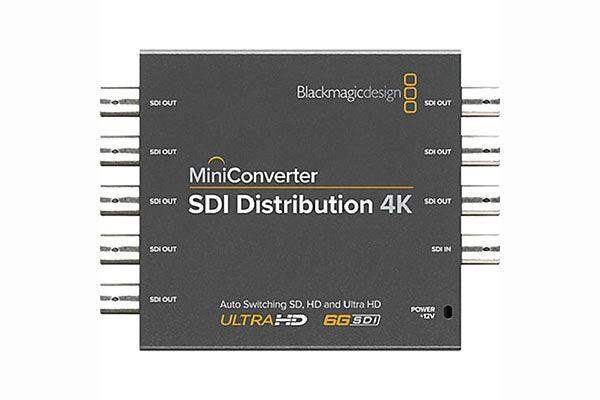

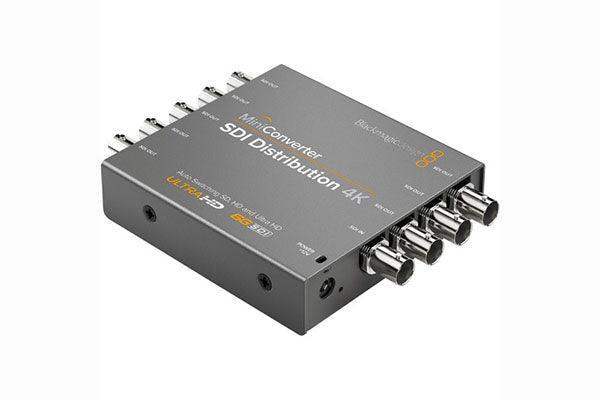

Blackmagic Design Mini Converter - SDI Distribution 4K - CONVMSDIDA4K

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVMSDIDA4K
No reviews
Price:
$315.00

Description

The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals - asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.

  • Single Link SD/HD/3G/6G-SDI Input
  • 8x Single Link SD/HD/3G/6G-SDI Outputs
  • Re-Clocked Outputs
  • Supports SD, HD, UHD 4K & DCI 4K Signals
  • Automatic Input Signal Detection
  • Ancillary Data & Embedded Audio
  • Supports ASI Signals
  • Control via DIP Switches or Software
  • USB 2.0 Port for Firmware Updates
  • 12V Universal Power Supply Included

Blackmagic Design Mini Converter Specs

 Interfaces
Input 1 x BNC (6G-SDI)
Output 8 x BNC (6G-SDI)
Other I/O 1 x USB Type-A Firmware
Standards
Video Standard Compliance SMPTE 259M/292M/296M/372M/425M
Reclocking Yes
Transmission
Video Format SDI (4:2:2 RGB, YUV)
NTSC: 23.98/29.97 fps
PAL: 25 fps
720p: 59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF: 23.98/24/25 fps
DCI 2K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30 fps
DCI 4K: 24 fps
Maximum Sampling Rate 48 kHz / 24-Bit
Power
Power Consumption Power Supply: 12 to 30 VDC (4.8 W)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
General
Dimensions 4.8 x 3.6 x 0.9" / 12.2 x 9.2 x 2.3 cm
Weight 11.88 oz / 336.79 g
Packaging Info
Package Weight 1.34 lb
Box Dimensions (LxWxH) 5.85 x 5.6 x 2.65"
