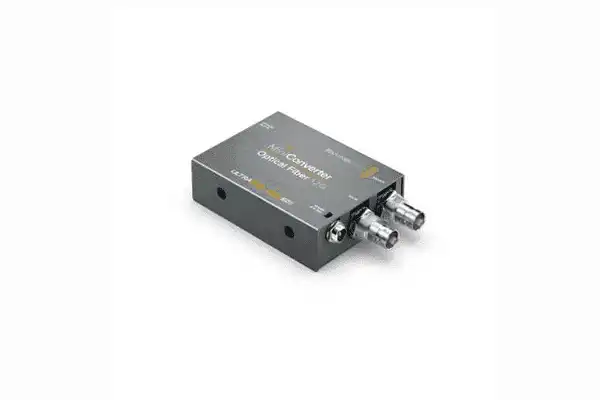

Blackmagic Design Mini Converter Optical Fiber 12G-SDI - CONVMOF12G

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVMOF12G
No reviews
Price:
$165.00

Description

Announcing the Blackmagic Mini Converter Optical Fiber 12G, a bi directional SDI to optical fiber converter that lets customers extend SDI connections up to 10 miles away.

Blackmagic Mini Converter Optical Fiber 12G is a compact converter that extends SDI connections over massive distances by converting SDI to optical fiber and optical fiber to SDI in both directions at the same time. Using the Blackmagic Mini Converter Optical Fiber 12G is an affordable way to increase camera coverage at live events because it lets broadcasters place cameras up to 10 miles away from their switchers, routers, and decks using low cost optical fiber cable. That makes it perfect for placing cameras around any studio, for use at outdoor sporting events or even concerts and theatrical performances in large venues.

The converter is also bi directional which means that it can simultaneously send different video formats in different directions at the same time. Depending on the video format being used, signals can be sent up to 10 miles away from the source. Plus, the advanced 12G-SDI connections on Mini Converter Optical Fiber 12G are multi rate. That means they automatically detect the video signal and switch speeds so they are compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices.

  • Converts 12G/6G/3G-SDI to Optical Fiber
  • Supports Signals up to DCI 4K25
  • Multi-Rate, Bidirectional Capability
  • Requires Separate SFP Optical Module
  • Automatic Input Signal Detection
  • 16-Channel Embedded Audio Support
  • Diagrammed Function Switches
  • Update via Converter Utility Software
  • Locking, Universal Power Supply
  • Compact Metal Housing

Blackmagic Design CONVMOF Specs
Video Inputs 1 x BNC (12G-SDI)
Video Outputs 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI)
Input Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
Output Video Format SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
Embedded Audio SDI Input/Output: 16-Channel
Standards
Video Standard Compliance SMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081
ITU -R BT.601
HDCP Support None
Connectivity
Expansion Slots 1 x SFP Slot
Power
Power I/O 1 x Barrel (6 to 36 VDC) Input
Power Consumption Power Supply: 2 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
General
Dimensions 4.33 x 2.32 x 0.9" / 109.98 x 58.93 x 22.86 mm
Weight 7.4 oz / 210 g
Packaging Info
Package Weight 0.925 lb
Box Dimensions (LxWxH) 5.8 x 4.7 x 2.75"
