Blackmagic Design Mini Converter Analog to SDI – Analog Converter
Product Overview

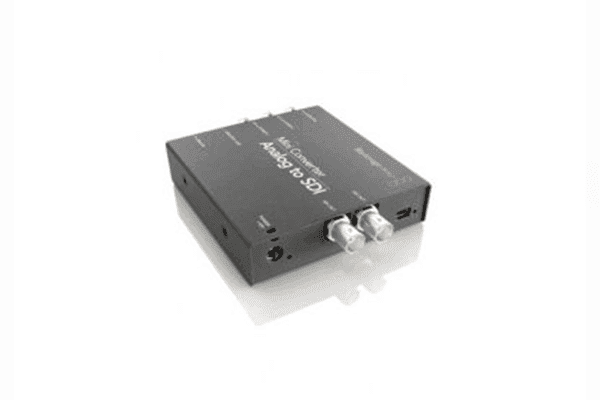

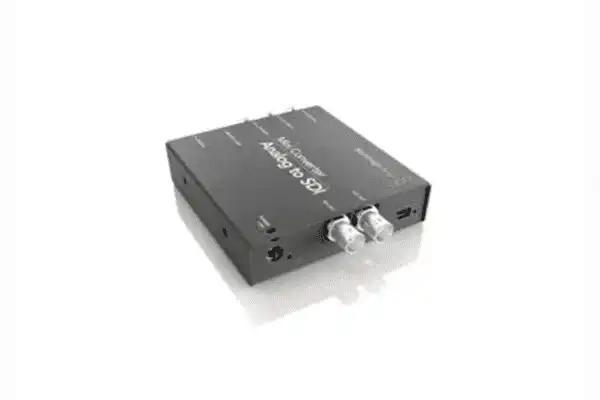

The Blackmagic Design Mini Converter Analog to SDI accepts an HD/SD component, NTSC, PAL, or S-Video signal and converts it to an SDI output, with the option to embed audio from balanced AES/EBU or analog inputs. It's designed for bringing analog sources such as Betacam SP, VHS, set-top boxes, and HDV cameras into an SDI workflow.
Product Description

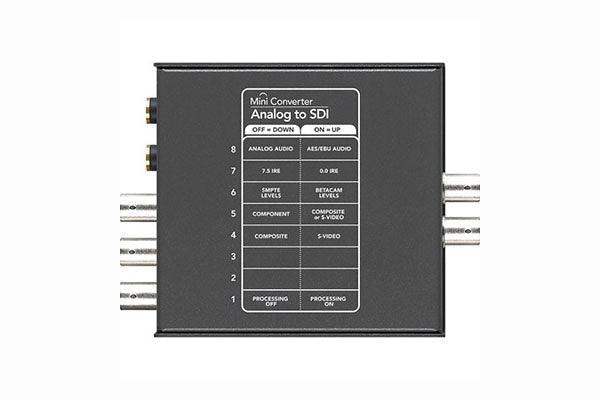

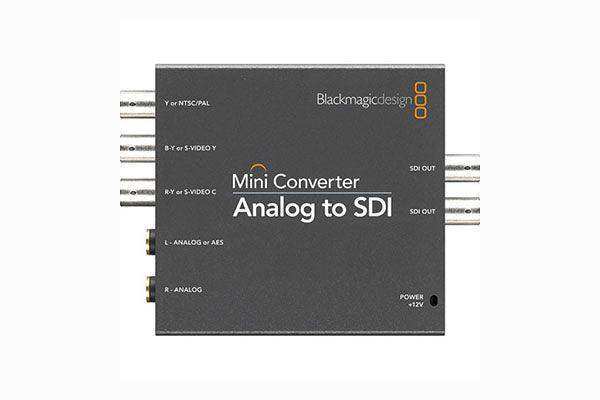

The Mini Converter Analog to SDI takes analog video — HD/SD component, composite (NTSC/PAL), or S-Video — across three BNC inputs and outputs SDI on two BNC connectors, switchable between SD, HD, and 3G-SDI. Audio can be embedded into the SDI output from two channels of balanced analog or two channels of AES/EBU digital via 1/4" jacks (the analog and digital audio inputs are shared). This makes it a straightforward way to digitize legacy analog equipment for modern SDI routing, capture, and monitoring. The unit is powered by an included 12V supply.
Key Features
- Analog to SDI — Converts component, composite (NTSC/PAL), and S-Video to SDI.
- Dual SDI outputs — Two SDI outputs switchable between SD, HD, and 3G-SDI.
- Audio embedding — Two channels of analog or AES/EBU digital via 1/4" jacks.
- Legacy source support — Ideal for Betacam SP, VHS, set-top boxes, and HDV cameras.
- Compact design — Powered by an included 12V supply.
Technical Specifications
| Model | CONVMAAS2 |
| Video Input | 3× BNC — component, NTSC, PAL, S-Video |
| Video Outputs | 2× BNC SDI (SD/HD/3G) |
| Audio Inputs | 1/4" jacks — 2-ch analog or 2-ch AES/EBU (shared) |
| Power | 12 VDC |
