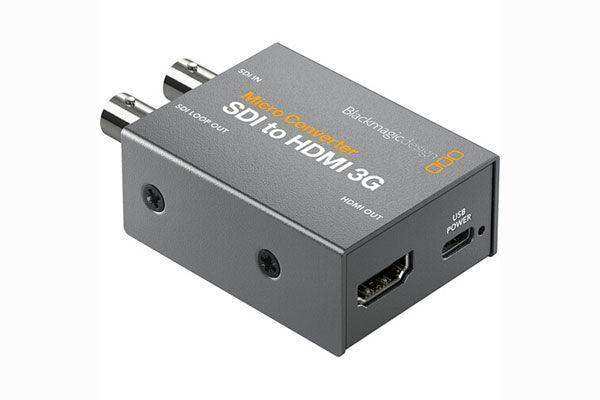

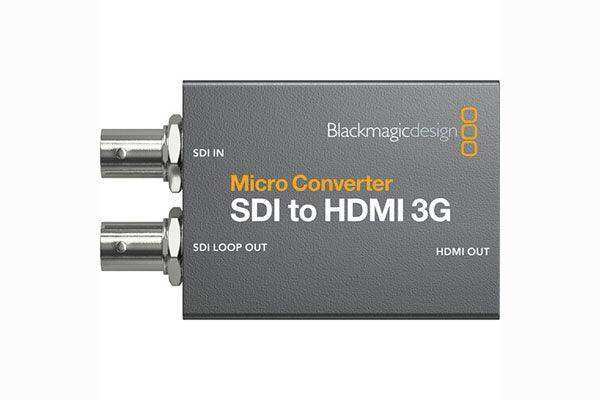

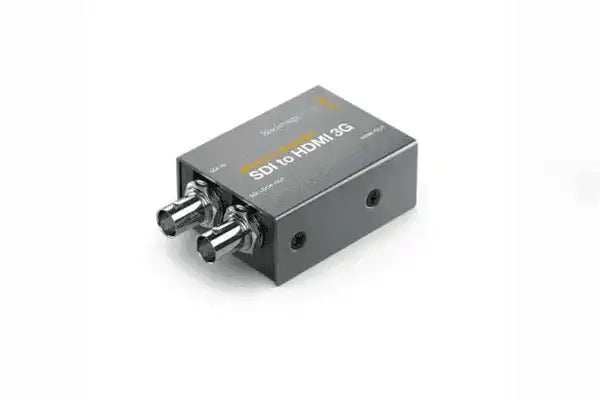

Blackmagic Design Micro Converter SDI to HDMI 3G – No PSU
Product Overview
The Blackmagic Design Micro Converter SDI to HDMI 3G lets you use HDMI monitors and televisions for production monitoring, with one 3G-SDI input, one HDMI output, and a 3G-SDI loop output. It includes a 3D LUT for monitor calibration, automatically detects SD/HD and Level A/B SDI, and supports resolutions up to 1080p60 on HDMI. This version does not include a power supply.
Product Description
This pocket-sized converter takes one SD/HD/3G-SDI input and provides an HDMI output plus a 3G-SDI loop output to pass the signal on. A built-in 3D LUT can calibrate the connected monitor, television, or projector, and the LUT can also be output for monitoring via the SDI loop. The converter automatically detects SD, HD, and Level A/B SDI across formats up to DCI 2K on SDI and 1080p60 on HDMI, including cine-style 48 fps. HDCP 2.2 and embedded audio are supported, and a tally light is available. The sturdy metal housing has power and signal LED indicators, and the USB-C port powers the unit from a monitor, laptop, or adapter and handles firmware updates from a Mac or Windows computer. It's powered using a separately available power supply, or over USB-C.
Key Features
- SDI to HDMI — One 3G-SDI input to HDMI output, plus a 3G-SDI loop.
- 3D LUT — Calibrate a monitor or output the LUT via the SDI loop.
- Up to 1080p60 — SDI up to DCI 2K; HDMI up to 1080p60.
- Auto SDI detection — Automatic SD/HD and Level A/B detection.
- Tally light — Built-in tally indicator.
- HDCP 2.2 — Copy-protection support; embedded audio.
- USB-C power — Powered from a monitor, laptop, or adapter (PSU not included).
- Rugged metal housing — LED video and power indicators.
Technical Specifications
| Model | CONVCMIC/SH03G |
| Video Input | 1× 3G/HD/SD-SDI (BNC) |
| Video Outputs | 1× HDMI; 1× 3G/HD/SD-SDI loop (BNC) |
| Max Format | SDI DCI 2K up to 60p; HDMI 1080p60 |
| Color | 3D LUT |
| Standards | SMPTE 259M/292M/296M/424M/425M-A/B; HDCP 2.2 |
| Other I/O | 1× USB-C (control/firmware); tally light |
| Power | USB-C 4.4–5.2 VDC, 2.5 W (supply not included) |
| Dimensions | 3.01 × 1.8 × 0.98" / 76.5 × 45.7 × 24.9 mm |
| Weight | 5.29 oz / 150 g |
