Blackmagic Design Micro Converter SDI to HDMI 12G - CONVCMIC/SH12G

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVCMIC/SH12G
No reviews
Price:
$145.00

Description

Blackmagic Design has introduced the Micro Converter SDI to HDMI 12G, a super compact and rugged device that will enable you to connect SDI cameras to pro-style HDMI monitors, projectors, or displays, and it will also feature a 33-point LUT for color calibration. With this compact converter, you will be able to connect one 12G-SDI input, one 12G-SDI loop output, and one HDMI output. As a result, it automatically detects and matches SDI inputs to HDMI outputs, and it supports input/output resolutions up to DCI/UHD 4K60 at the same time.

I/O
  • One 12G-SDI input
  • One HDMI output
  • One 12G-SDI loop output
 Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer
 SDI Re-Clocking
  • Built-in re-clocking on HDMI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
 Wider Resolution Support
  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60
 Embedded Audio
  • Supports embedded SDI input and embedded HDMI output
 LED Indicators
  • LED indicators for video and power signals
 Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Powered using a separately available power supply
 Operating System Support
  • macOS 10.15 Catalina
  • macOS 11.1 Big Sur or later
  • Windows 10, 64-bit

Blackmagic Design Micro Converter Specs
Video Inputs 1 x BNC (12G-SDI / 3G-SDI) Female
Audio Inputs None
Video Outputs 1 x HDMI (HDMI 2.0) Female
1 x BNC (12G-SDI / 3G-SDI) Female (Loop Output)
Audio Outputs None
Other I/O 1 x USB-C Control, Firmware Input
Expansion Slots None
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio SDI/HDMI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support Version 2.2
HDR Compatibility Not Specified by Manufacturer
Hardware
Wi-Fi None
OS Compatibility macOS 10.15.15 or Later
macOS 11.1 or Later
Windows 10
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption Device: 4 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Non-Condensing)
General

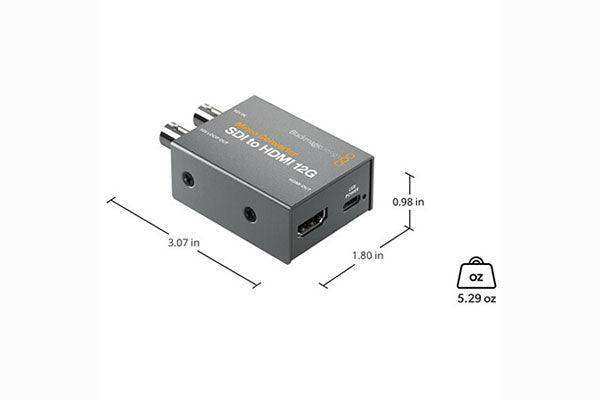

Dimensions 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight 5.29 oz / 150 g
Packaging Info
Package Weight 0.365 lb
Box Dimensions (LxWxH) 3.2 x 1.9 x 1"
