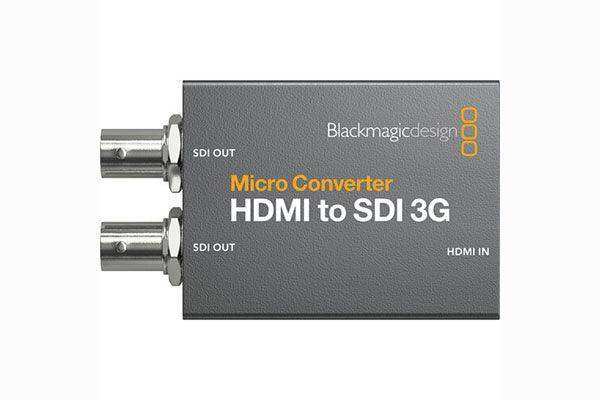

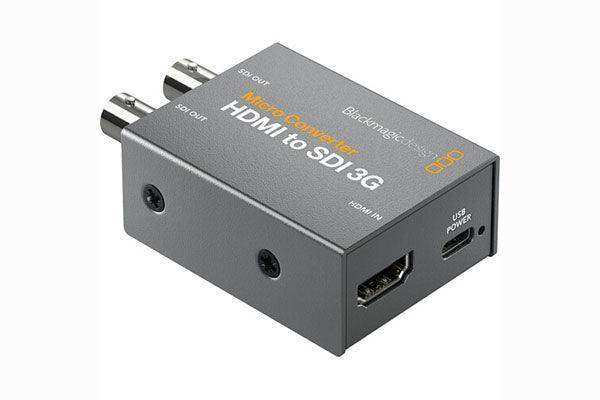

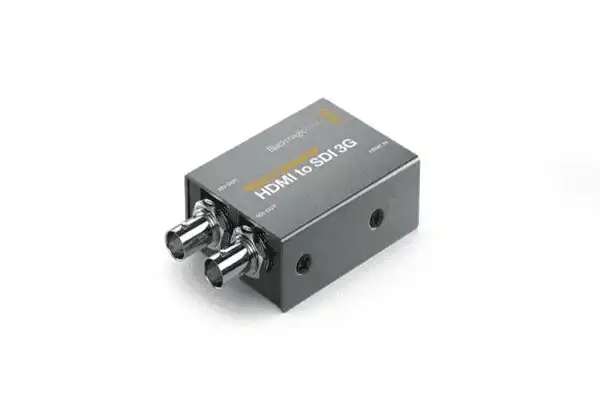

Blackmagic Design Micro Converter HDMI to SDI 3G (with Power Supply) - CONVCMIC/HS03G/WPSU

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVCMIC/HS03G/WPSU
No reviews
Price:
$65.00

Description

Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Dual SDI Outputs
  • One HDMI input
  • Two 3G-SDI outputs
  • Selectable A and B level formats
 Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC
 SDI & HDMI Timecode
  • HD and SD timecode support
  • Converts HDMI timecode to SDI
 SDI Re-Clocking
  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
 Wider Resolution Support
  • SDI support from NTSC and PAL up to DCI 2Kp60
  • HDMI support from NTSC and PAL up to 1080p60
 Embedded Audio
  • Supports embedded HDMI input and embedded SDI output
 LED Indicators
  • LED indicators for video and power signals
 Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Includes a 100-240 AC power supply with four socket adapters

Blackmagic Design Micro Converter Specs
Video Inputs 1 x HDMI (HDMI 2.0)
Audio Inputs None
Video Outputs 2 x BNC (3G-SDI / HD-SDI / SD-SDI)
Audio Outputs None
Other I/O 1 x USB-C Input
Expansion Slots None
Input Video Format HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M
HDCP Support Version 2.2
Hardware
Wi-Fi None
OS Compatibility macOS 10.14.15 or Later
Windows 10
*As of November, 2020: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption 2 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight 5.29 oz / 150 g
Packaging Info
Package Weight 0.75 lb
Box Dimensions (LxWxH) 5.7 x 4.2 x 2.9"
