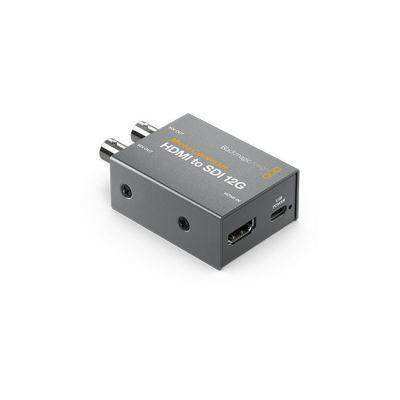

Blackmagic Design Micro Converter HDMI to SDI 12G with Power Supply - CONVCMIC/HS12G/WPSU

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVCMIC/HS12G/WPSU
No reviews
Price:
$135.00

Description

Featuring a super compact and rugged design, the Micro Converter HDMI to SDI 12G from Blackmagic Design is the ideal solution for connecting HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances, using an SDI cable. This compact converter has one HDMI input and two 12G-SDI outputs, and they can be set to Level A or B when using 3G-SDI. The device automatically detects and matches your HDMI input to the SDI output, as well as supporting input/output resolutions up to 4K60 DCI/UHD in both directions.

Dual SDI Outputs
  • One HDMI input
  • Two 12G-SDI outputs
  • Selectable A and B level formats
 Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer
 SDI & HDMI Timecode
  • HD and SD timecode support
  • Converts HDMI timecode to SDI
 SDI Re-Clocking
  • Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
 Wider Resolution Support
  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60
 Embedded Audio
  • Supports embedded HDMI input and embedded SDI output
 LED Indicators
  • LED indicators for video and power signals
 Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • A 5V power supply and an international plug adapter set is included
 Operating System Support
  • macOS 10.15 Catalina
  • macOS 11.1 Big Sur or later
  • Windows 10, 64-bit

Blackmagic Design Micro Converter Specs
Video Inputs 1 x HDMI (HDMI 2.0) Female
Audio Inputs None
Video Outputs 2 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
Audio Outputs None
Other I/O 1 x USB-C Control, Service Input
Expansion Slots None
Input Video Format HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10/ST-2084
HDCP Support Version 2.2
HDR Compatibility Not Specified by Manufacturer
Hardware
Wi-Fi None
OS Compatibility macOS 10.15.15 or Later
macOS 11.1 or Later
Windows 10
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption Device: 4 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Non-Condensing)
General
Dimensions 3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight 5.29 oz / 150 g
Packaging Info
Package Weight 0.785 lb
Box Dimensions (LxWxH) 5.8 x 4.1 x 2.8"
