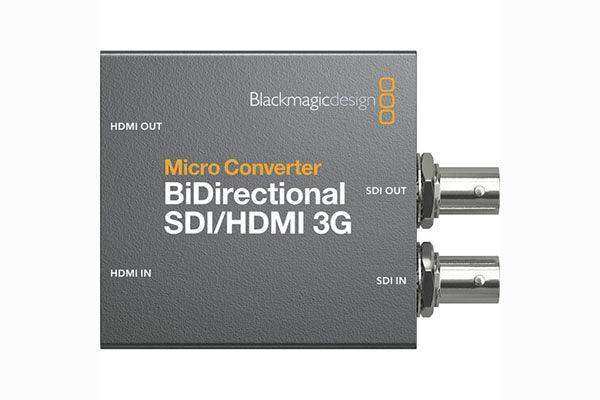

Blackmagic Design Micro Converter - BiDirectional SDI/HDMI 3G - CONVBDC/SDI/HDMI03G

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVBDC/SDI/HDMI03G
No reviews
Price:
$69.00

Description

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 3G from Blackmagic Design. This compact bidirectional converter can simultaneously convert SDI to HDMI and vice versa, even when using different standards, and it supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher. The Micro Converter BiDirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.

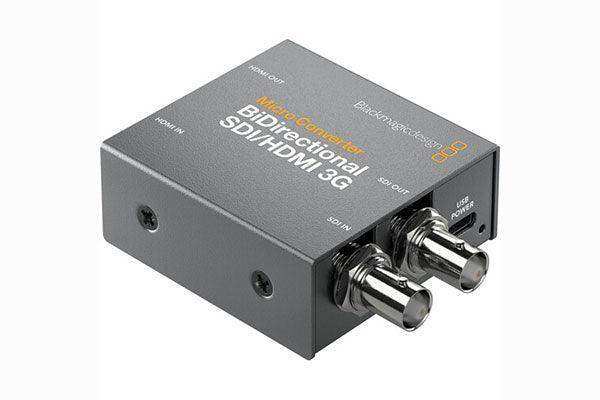

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the BiDirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC

HDMI Camera Control
  • Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher

SDI & HDMI Timecode
  • HD and SD timecode support
  • Converts HDMI timecode to SDI and vice versa

SDI Re-Clocking
  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support
  • SDI support from NTSC and PAL up to DCI 2Kp60
  • HDMI support from NTSC and PAL up to 1080p60

Embedded Audio
  • Supports embedded SDI and HDMI input and output

LED Indicators
  • LED indicators for video and power signals

Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Simultaneous SDI to HDMI & HDMI to SDI
  • 1 x SD/HD/3G-SDI & 1x HDMI Input/Output
  • Supports up to DCI 2K60 Video
  • BMPCC Control & Tally via SDI Switcher
  • USB Power/SDI Re-Clocking/HDMI Timecode
  • Automatic Input Signal Detection
  • Embedded HDMI & SDI Input/Output
  • LED Video &Power Signal Indicators

Blackmagic Design Micro Converter Specs

Video Inputs 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 2.0)
Audio Inputs None
Video Outputs 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 2.0)
Audio Outputs None
Other I/O 1 x USB-C Input
Expansion Slots None
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support Version 2.2
Hardware
Tally Light Yes
Wi-Fi None
OS Compatibility macOS 10.14.15 or Later
Windows 10
*As of November, 2020: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption 2.5 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight 6.13 oz / 174 g
Packaging Info
Package Weight 0.415 lb
Box Dimensions (LxWxH) 3.2 x 2.5 x 1.2"
