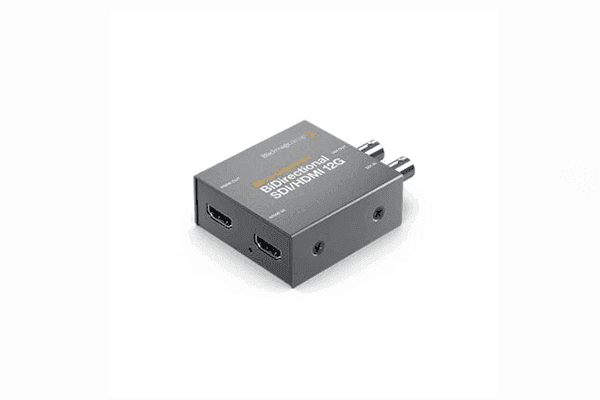

Blackmagic Design Micro Converter - BiDirect SDI/HDMI 12G - CONVBDC/SDI/HDMI12G

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: CONVBDC/SDI/HDMI12G
No reviews
Price:
$165.00

Description

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.

The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. The converter is powered using a separately available power supply.

Bidirectional Format Conversion You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Each conversion direction can be a different SD, HD, or UHD video standard, so it's like getting two converters in one. Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or Windows computer
 HDMI Camera Control
  • Camera control conversion for the HDMI-output Blackmagic Pocket Cinema Camera 4K or 6K, enables use with an SDI-based live switcher
 SDI & HDMI Timecode
  • HD and SD timecode support
  • Converts HDMI timecode to SDI and vice versa
 SDI Re-Clocking
  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
 Wider Resolution Support
  • SDI support from NTSC and PAL up to DCI/UHD 4K60
  • HDMI support from NTSC and PAL up to DCI/UHD 4K60
 Embedded Audio
  • Supports embedded SDI and HDMI input and output
 LED Indicators
  • LED indicators for video and power signals
 Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Powered using separately available power supply

Blackmagic Design Micro Converter Specs
Video Inputs 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female
Audio Inputs None
Video Outputs 1 x BNC (12G-SDI / 3G-SDI / HD-SDI / SD-SDI) Female
1 x HDMI (HDMI 2.0) Female
Audio Outputs None
Other I/O 1 x USB-C Firmware Input (Shared Power)
Expansion Slots None
Input Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 59.94 fps
576i / 625 lines 50 fps
HDMI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio HDMI/SDI
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support Version 2.2
HDR Compatibility Not Specified by Manufacturer
Hardware
Tally Light Yes
Wi-Fi None
OS Compatibility macOS 10.15.15 or Later
Windows 11.1 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power I/O 1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption Device: 5 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight 6.13 oz / 174 g
Packaging Info
Package Weight 0.435 lb
Box Dimensions (LxWxH) 3.3 x 2.4 x 1.2"
