Blackmagic Design HyperDeck Shuttle HD – Desktop Recorder/Player
Product Overview

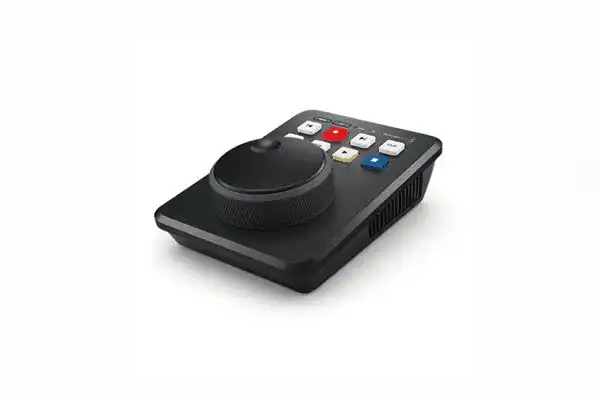

The Blackmagic Design HyperDeck Shuttle HD is a desktop HD broadcast recorder and player built for live production mastering and clip playback. It records and plays ProRes, DNx, and H.264 files in NTSC, PAL, 720p, and 1080p over HDMI, using SD/UHS-II cards or USB-C disks. With a large machined search dial and a control layout matching the ATEM Mini Extreme, this desktop clip player and recorder pairs naturally with ATEM Mini switchers and even includes a built-in teleprompter.
Product Description
HyperDeck Shuttle HD is designed for single-handed desktop operation: a gentle angle rests your hand on the inertia-weighted metal search dial, with broadcast-style transport buttons under your fingertips. As a mastering recorder it captures true broadcast masters in H.264, ProRes, or DNx with a choice of PCM or AAC audio — ideal for sending shows to broadcasters or uploading to YouTube from an ATEM Mini program output. As a media player, the search dial visually browses the clip library, with previous-clip and clip buttons to cue and stop cleanly at clip boundaries. HDMI connections link to switchers, cameras, and monitors, and media records to SD cards, UHS-II cards, or USB-C external disks. All deck-control functions — record, play, cue, next — can be triggered remotely over Ethernet, and ATEM switchers can remote-control the unit directly. Its depth and angle match the ATEM Mini Extreme so the two sit together as a combined switching-and-playback desktop kit.
Key Features
- Records ProRes, DNx, and H.264 — Broadcast-quality masters in NTSC, PAL, 720p, and 1080p.
- Player and recorder — Doubles as a live clip player and a master recorder.
- Machined search dial — Shuttle, jog, and scroll for fast clip browsing.
- Flexible media — Records to SD, UHS-II cards, or USB-C external disks.
- HDMI connectivity — Connects to switchers, cameras, and monitors.
- PCM or AAC audio — Selectable audio encoding for mastering or delivery.
- Ethernet deck control — Remote transport control; ATEM switchers can drive it directly.
- Built-in teleprompter — On-device teleprompter for presenter workflows.
- ATEM Mini Extreme match — Same desktop form factor for a paired kit.
Typical Applications
- Broadcast studio — Master live shows to ProRes/DNx and play back clips on cue.
- House of worship — Record services and roll pre-built clips alongside an ATEM Mini.
- All-hands room — Capture company broadcasts and play intro/outro clips from one desk.
- Auditorium — Desktop clip playback and recording for live events.
Technical Specifications
| Model | HYPERD/PTSHD |
| Codecs | H.264, ProRes, DNx |
| Video Formats | NTSC, PAL, 720p, 1080p |
| Audio | PCM or AAC (selectable) |
| Video Connections | HDMI (to switchers, cameras, monitors) |
| Media | SD, UHS-II cards, USB-C external disks |
| Control | Front panel with search dial; Ethernet remote; ATEM switcher control |
| Extras | Built-in teleprompter; ATEM Mini Extreme matched form factor |
Frequently Asked Questions
Is it a recorder or a player?
Both — it records broadcast masters and also serves as a live clip player, controlled from the search dial or over Ethernet.
What formats does it record?
H.264, ProRes, and DNx in NTSC, PAL, 720p, and 1080p, with a choice of PCM or AAC audio.
What media can I use?
SD cards, UHS-II cards, or USB-C external disks.
Does it work with ATEM switchers?
Yes. ATEM switchers can remote-control it over Ethernet, and it matches the ATEM Mini Extreme form factor for a combined desktop setup.
