Blackmagic Design HyperDeck Studio 4K Pro – 4K Rack Recorder
Product Overview
The Blackmagic Design HyperDeck Studio 4K Pro is a broadcast-grade deck for recording and playback of Ultra HD video up to 2160p60, built around fast SSD media and 12G-SDI connectivity. The 2U rackmount unit pairs dual 12G-SDI and HDMI in/out with a built-in LCD touchscreen, Ethernet and RS-422 control, and dual redundant power, making it suited to studios and live-production racks that need reliable 4K recording and playout.
Product Description

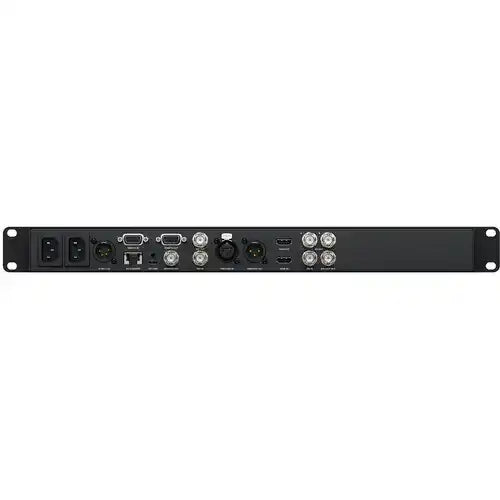

This rackmount recorder captures and plays Ultra HD video to SSD media, recording in ProRes, DNxHR, and uncompressed formats. It has two 12G-SDI inputs and two 12G-SDI outputs plus HDMI in and out for monitoring and switching, and records to internal SSD or external drives over USB-C. A front LCD touchscreen handles control and monitoring, with Ethernet and RS-422 for remote operation and deck control, and the deck can be configured for loop recording, playlist playback, and more. Dual redundant, hot-swappable power supplies provide broadcast reliability, and the 2U chassis fits a standard equipment rack.
Key Features
- Ultra HD up to 2160p60 — Recording and playback to SSD media.
- 12G-SDI and HDMI — Two 12G-SDI in and out, plus HDMI in and out.
- Pro codecs — ProRes, DNxHR, and uncompressed.
- SSD media — Internal SSD or external drives over USB-C.
- Touchscreen control — Built-in LCD, plus Ethernet and RS-422.
- Flexible playout — Loop recording and playlist playback.
- Redundant power — Dual hot-swappable power supplies.
Typical Applications
- Broadcast studio — 4K recording and playout in a rack-based production chain.
- Auditorium — Capturing or replaying UHD program feeds for live events.
- House of worship — Reliable 4K recording with redundant power.
Technical Specifications
| Model | HYPERD/ST/DG4P |
| Video Inputs | 2× 12G-SDI; 1× HDMI |
| Video Outputs | 2× 12G-SDI; 1× HDMI |
| Max Resolution | 2160p60 (Ultra HD) |
| Recording Media | SSD (internal / external via USB-C) |
| Codecs | ProRes, DNxHR, uncompressed |
| Control | LCD touchscreen; Ethernet; RS-422 |
| Power | Dual redundant, hot-swappable |
| Form Factor | 2U rackmount |
FAQ
How is this different from the Studio HD Pro? The Studio 4K Pro records up to 2160p60 (UHD); the HD Pro shares the same I/O and form factor but tops out at 1080p60.
What media does it record to? SSD media, either internal or external over USB-C.
Which codecs does it support? ProRes, DNxHR, and uncompressed.
Is the power redundant? Yes — dual hot-swappable power supplies.
