Blackmagic Design Fairlight HDMI Monitor Interface - DV/RESFA/MONINT

Regular price $299.00
Shipping calculated at checkout.
Blackmagic Design  |  SKU: DV/RESFA/MONINT

Shipping Now*

Free Ground Shipping on Orders Over $250.00

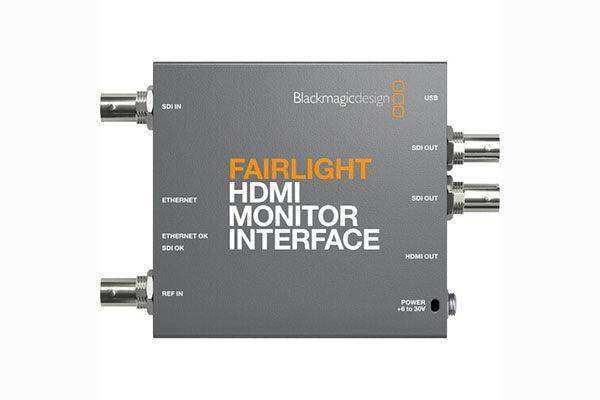

Make your existing HDMI monitor compatible with a Fairlight console by utilizing the Blackmagic Design Fairlight HDMI Monitor Interface, a compact video signal converter that changes the Ethernet data from a Fairlight Console Channel Control to standard HDMI format. It also features an Ethernet/SDI input switch to select the SDI input for lip sync checks.

In addition to the HDMI Type-A output for connection to your HDMI display, this interface incorporates two SDI outputs to allow hookup to a remote SDI monitor. LEDs are present for easy verification of valid Ethernet and SDI input signal. Configuration and updates are handled through USB and power is provided via the included external power supply.

Features
  • For DaVinci Resolve Systems
  • Enables Use of an HDMI Monitor
  • Compact Design is Easily Concealed
  • Ethernet/SDI Input Switch
  • HDMI Type-A Output
  • Dual SDI Outputs
  • Ethernet/SDI Status LEDs
  • USB Type-C Port for Configuration
  • Includes External Power Supply
Specification

Blackmagic Design RESFA/MONINT Specs

Video Inputs 1 x RJ45 Female
1 x BNC (3G-SDI) Female
Input Video Format SDI (4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
Audio Input Connectors None
Video Outputs 2 x BNC (3G-SDI) Female
1 x HDMI Female
Output Video Format SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Output Connectors None
Standards
Video Standard Compliance SMPTE 259M/292M/296M/424M-B/425M-A/425M-B
Other I/O 1 x BNC Reference Input
1 x USB-C Firmware, Control Input
Expansion Slots None
Wi-Fi None
Power
Power I/O 1 x Barrel (6 to 30 VDC) Input
Power Consumption 12 VDC (6 W)
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm
Weight 8.1 oz / 230 g
Packaging Info
Package Weight 1.095 lb
Box Dimensions (LxWxH) 5.8 x 5.6 x 2.6"
