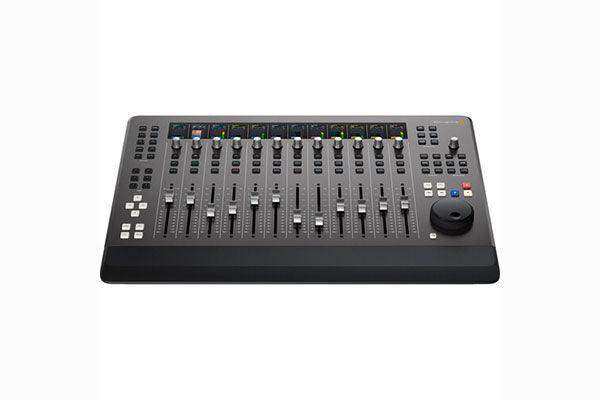

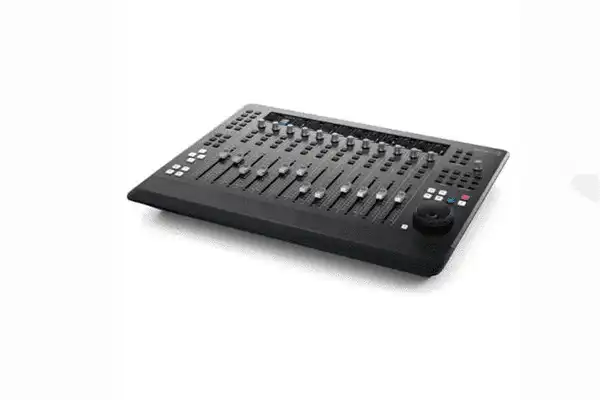

The Fairlight Desktop Console is a full audio control surface featuring a bank of 12 touch sensitive faders and pan knobs, built in LCDs above each channel strip, channel control buttons, automation transport and navigation controls, HDMI graphical interface output for connecting a monitor, and more.
The Fairlight Desktop Console is a complete audio mixing control surface for mixing multiple tracks at once, automating a variety of parameters and plug‑in settings, controlling channel functions, recording, monitoring, and navigating your project. It’s ideal for new users, smaller studios, commercials, online and independent work. You get a familiar mixer design with 12 motorized faders, precision control knobs and illuminated buttons for quickly identifying channels! You can use the knobs and buttons to control channel parameters, EQ, dynamics, plug-ins and more. The built in HDMI output lets you connect a display, giving you the same interactive graphical feedback as the larger consoles!
Compact and Professional
The Fairlight Desktop Console uses the same high quality faders as the full size modular consoles. The sculpted faders are smooth and provide the perfect amount of resistance for making subtle adjustments. The precision engineered encoder knobs ensure a long life of noiseless operation, and the console buttons are rated at a million presses. Individual LCDs display track information for each channel. The high quality search dial is extremely responsive and is much faster than a mouse. The soft front panel bumper makes long sessions more comfortable, the console can be installed flush in a custom desk, and there’s even a built in power supply, which means no power brick!
The Fairlight Desktop Console features 12 channel strips that can be used in a variety of ways for mixing audio. Each channel strip has a motorized fader for adjusting levels, a series of buttons for solo, mute and other parameters, a multifunction pan knob, and an LCD that shows you information about the channel or track on which you are working. Channel strips can be used to control an individual track and any strip can be assigned to any track in the project. You can also use a single strip to control multiple tracks in a group, or you can use the channel strips to control buses. This gives you the speed and flexibility you need for total control over your recording and mixing sessions!
Channel Status Displays
There are independent high resolution LCD screens located above each of the 12 fader strips. These displays include track name, number, and color, along with panning status, channel level meters, automation state, bus routing and more.
Multifunction Pan Knob
The multifunction pan knob can be used for panning or assigned to control other Fairlight parameters. Hold control and tap to reset, or hold shift for refined control. As it’s a rotary encoder it won’t introduce signal noise like mechanical knobs.
Channel Strip Controls
Each of the 12 fader channel strips has its own dedicated solo and mute buttons for quickly isolating or temporarily turning tracks off. Multi function select buttons can be used to load track parameters, and activate automation and plug‑in controls.
- 12 Touch-Sensitive Motorized Faders
- 12 Assignable Multifunction Pan Knobs
- 12 Informative High-Resolution LCDs
- Solo and Mute Buttons per Channel Strip
- Logical Navigation & Transport Controls
- Task-Based Controls
- Record and Edit Automaton
- Flexible Monitoring Controls
- External HDMI Monitoring
- Mac and Windows Compatible
Blackmagic Design DV/RESF/EDTAUSMIN Specs
|USB Port||1 x USB Type-C (Computer Interface, Software Configuration, and Updates)|
|Ethernet Port||1 x RJ45 (Supports 10/100/1000 Base-T)|
|HDMI Port||1 x HDMI Type-A (Video Output)|
|HDMI Video Standards||1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, and 1080p60|
|OS Compatibility||macOS 10.15 or Later
Windows 10 (64-Bit)
|Power Supply||Internal 100 to 240 VAC, 50/60 Hz with IEC C14 Mains Input|
|Power Consumption||20 W Maximum|
|Operating Temperature||32 to 104°F / 0 to 40°C|
|Storage Temperature||-4 to 140°F / -20 to 60°C|
|Relative Humidity||0 to 90% Noncondensing|
|Dimensions||20.8 x 15.6 x 3.1" / 52.8 x 39.7 x 7.8 cm|
|Weight||12.7 lb / 5.8 kg|
|Package Weight||20.67 lb|
|Box Dimensions (LxWxH)||25.6 x 19.6 x 6.3"|
