Blackmagic Design Fairlight Console Channel Fader - DV/RESFA/FADCS

Name: Blackmagic Design Fairlight Console Channel Fader - DV/RESFA/FADCS
SKU: DV/RESFA/FADCS
Price: 4595.0 USD

Authorized Dealer

$4,595.00

Shipping calculated at checkout.

Blackmagic Design | SKU: DV/RESFA/FADCS

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

Product Overview

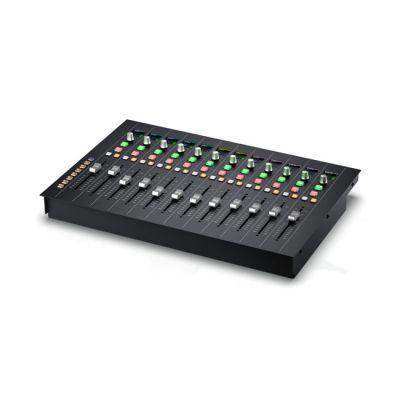

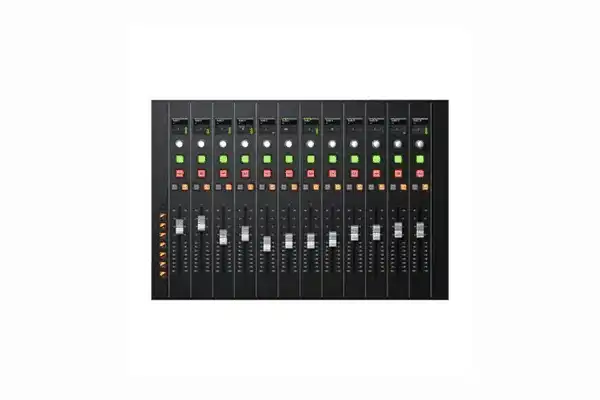

The Blackmagic Design Fairlight Console Channel Fader is a modular mixing surface for DaVinci Resolve Fairlight, offering 12 channels each with a touch-sensitive motorized fader, customizable pan knob, dedicated LCD, and illuminated solo, mute, call, and automation buttons. Tracks and buses can be mapped to the faders instantly, and Ethernet connectivity lets you combine multiple modules into a larger console for fluid, hands-on mixing and automation.

Key Specs

12 touch-sensitive 100 mm motorized faders
12 customizable pan knobs and per-channel LCDs
Solo, mute, call, and automation buttons per channel
Bank buttons map tracks and buses to faders
Ethernet, USB-C config, internal power supply

Product Description

With the Blackmagic Design Fairlight Console Channel Fader modular control surface at your fingertips, you can mix and automate your DaVinci Resolve 17 sessions with a fluid, hands-on workflow that helps you finish projects faster and more intuitively. It boasts 12 full-featured channels, each with a touch-sensitive motorized fader, a customizable pan knob, a crisp LCD screen, and more.

Below the LCDs and pan knobs, every channel has its own set of illuminated buttons for quick execution of solo, mute, call, and automation. Further enhancing your efficiency are the buttons to the left of the channels; these let you map tracks and buses to the faders. Ethernet connectivity and software configuration via USB Type-C ensure a straightforward setup.

Hands-On Workflow

The Fairlight Console Channel Fader gives you full mixing and automation control for your DaVinci Resolve 17 system.

Tactile Controls per Channel

Each of the 12 channels features a touch-sensitive 100mm belt-driven motorized fader, a customizable soft knob for panning, and buttons for solo, mute, call, and automation. Use the solo and mute buttons to quickly isolate tracks or temporarily turn them off. Call buttons can be used to load track parameters, set up fader banks, and spill bus tracks to adjoining faders. Auto buttons enable automation.

High-Quality Faders

The faders are sculpted and weighted for comfort and feature smooth-gliding high-precision motors that provide the sensitivity and feedback you need for the most sophisticated mixing sessions. Bank control buttons switch and control 12 banks of 12 faders plus an additional 12 banks of user-defined channels. Assigned faders can also adjust send and record levels.

Multifunction Pan Knobs

The multifunction pan knob features tap-to-reset functionality and can be used for panning or assigned to control other parameters. The pan knob is rotary encoder based, which means it won't introduce unwanted noise like mechanical knobs.

Crisp LCD Screens

The integrated high-resolution LCD screens located above each fader strip let you see track color, name and number, along with pan status, level meters, and more. This information correlates directly with the track headers and mixer in the software.

Bank Buttons

The Fairlight Console Channel Fader also provides automation controls and bank buttons for mapping tracks and buses to the faders. The six bank and control buttons on the left side of the panel let you quickly switch your faders to work on 12 different sets of sequentially mapped channels. You can also manually map an additional 12 banks of channel faders for each fader panel.

Easy Connectivity

The 10/100/1000 Base-T Ethernet port allows simple integration with your DaVinci Resolve 17 system. Additionally, a USB Type-C port is provided for software configuration (via Fairlight Studio and Console setup utility) and software updates.

Convenient Software Upgrades

The Fairlight Console Channel Fader utilizes an internal software upgrade function via an updater application.

Internal Power Supply

Equipped with an internal power supply, the Fairlight Console Channel Fader bypasses the need for an unsightly and cumbersome wall wart.

Features

For DaVinci Resolve 17 Systems
12 Touch-Sensitive Motorized Faders
12 Customizable Pan Knobs
Crisp LCD Screen per Channel
Solo, Mute, Call & Automation per Strip
Buttons to Map Tracks & Buses to Faders
Ethernet Connectivity
USB Type-C Port for Configuration
Internal Power Supply

Specifications

Blackmagic Design DV/RESFA/FADCS Specs

OS Compatibility	macOS 10.15 or Later Windows 10 (64-Bit)
Faders	12 x Touch-Sensitive 100 mm Motorized Fader
Pan	12 x Pan Knob
Displays	12 x LCD Screen
Ports	1 x RJ45 Ethernet (10/100/1000 Base-T) 1 x USB Type-C (Software Configuration and Software Updates)
Power Supply	Internal: 100 to 240 VAC at 50/60 Hz, IEC C14 Mains Input
Power Consumption	20 W Maximum
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Relative Humidity	0 to 90% Noncondensing
Dimensions	19.3 x 13 x 2.6" / 49.0 x 33 x 6.7 cm
Weight	14.8 lb / 6.7 kg

Packaging Info

Package Weight	19.56 lb
Box Dimensions (LxWxH)	22 x 17.4 x 6.6"

Frequently Asked Questions

How many channels does it provide?

12 motorized fader channels, expandable by combining modules into a larger console.

What system does it work with?

DaVinci Resolve Fairlight, connected over Ethernet.

Can faders control sends and records?

Yes, assigned faders can adjust send and record levels in addition to channel levels.
