Blackmagic Design Fairlight Console Channel Control - DV/RESFA/EFCCS

Name: Blackmagic Design Fairlight Console Channel Control - DV/RESFA/EFCCS
SKU: DV/RESFA/EFCCS
Price: 2815.0 USD

Authorized Dealer

$2,815.00

Shipping calculated at checkout.

Blackmagic Design | SKU: DV/RESFA/EFCCS

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

Product Overview

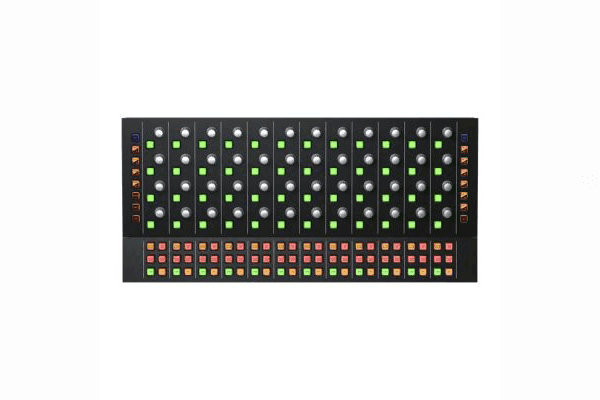

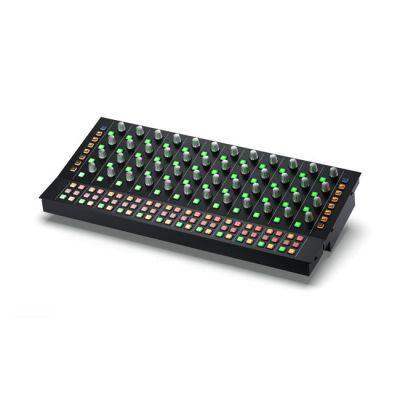

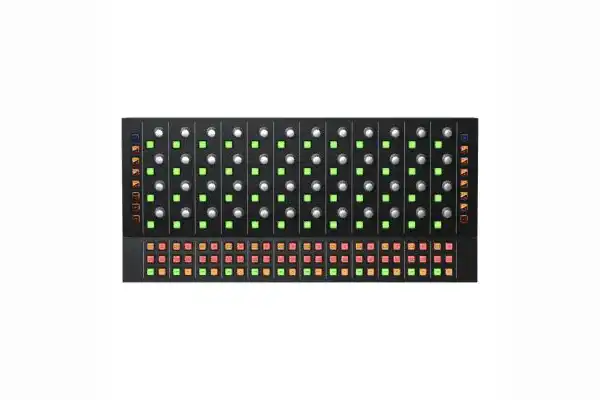

The Blackmagic Design Fairlight Console Channel Control is a modular surface for DaVinci Resolve Fairlight that pairs with a Channel Fader (sold separately) to add 12 groups of touch-sensitive knobs and illuminated buttons. Operators can shape individual channels, every parameter of a single track, or master-bus controls, and switch to in-line channel mode for 12 traditional channel strips, making it ideal for live recording and detailed mixing.

Key Specs

Modular control surface for DaVinci Resolve Fairlight
48 touch-sensitive knobs in 12 groups plus illuminated buttons
In-line, single-channel, and master control modes
Up to 192 parameters for a selected track
Ethernet, USB-C config, internal power supply

Product Description

Expand hands-on control of your DaVinci Resolve 17 system with the Blackmagic Design Fairlight Console Channel Control, a modular control surface designed to work in tandem with a Fairlight Console Channel Fader (available separately) to provide 12 groups of touch-sensitive knobs and illuminated buttons that can be used to manipulate individual channels, all parameters of a single track, or parameters of the master buses.

The in-line channel mode configures the controls into 12 traditional channels, an ideal way to operate live recording sessions. Single channel mode is optimal for intense channel-by-channel mixing as it utilizes all 12 groups of controls to access up to 192 parameters for a selected track. Switch to the master channel mode when mixing and mastering soundtracks; the 12 groups of controls are assigned to the master buses and organized in order of processing.

Hands-On Workflow

This module features 12 groups of touch-sensitive rotary encoder knobs (four knobs per group) and illuminated buttons (10 buttons per group), each of which can be assigned to a single channel, the 12 adjacent fader channels, or the master bus. When used in single channel mode, you get instant access to over 192 different parameters for the current selection. That means you don't have to take your hands off the panel or use the mouse to adjust EQ, dynamics, and other settings.

Your selections control the LCD monitor (available separately), so you have a precise display of your changes as you make them. Channel display buttons on the sides let you select the channel display mode, while buttons at the bottom let you set Insert In, Solo Safe, Select, and Arm for the active channel.

In-Line Channel Control Mode

In-line channel control mode splits the knobs and buttons into 12 groups that line up vertically with the 12-fader Fairlight Console Channel Fader (available separately). This mode is perfect during live recording sessions because it allows you to easily see and control parameters of multiple microphone inputs simultaneously.

Single Channel Control Mode

Single channel control mode assigns all 12 groups of controls to a single channel, giving you instant access to 192 parameters for the selected track. This is the most common mode used in audio postproduction, as it provides quick access to all controls for a specific track.

Master Channel Control Mode

Master channel control mode utilizes all channel controls to adjust parameters for the master buses. The controls in master mode are organized from left to right in order of processing. Master mode is commonly used for mixing and mastering soundtracks.

Easy Connectivity

The 10/100/1000 Base-T Ethernet port allows simple integration with your DaVinci Resolve 17 system. Additionally, a USB Type-C port is provided for software configuration (via Fairlight Studio and Console setup utility) and software updates.

Convenient Software Upgrades

The Fairlight Console Channel Control utilizes an internal software upgrade function via an updater application.

Internal Power Supply

Equipped with an internal power supply, the Fairlight Console Channel Control bypasses the need for an unsightly and cumbersome wall wart.

Features

For DaVinci Resolve 17 Systems
Extends Functionality of Channel Faders
48 Touch-Sensitive Knobs in 12 Groups
12 Groups of Illuminated Buttons
In-Line, Single & Master Control Modes
Selections Control Optional LCD Monitor
Ethernet Connectivity
USB Type-C Port for Configuration
Internal Power Supply

Specifications

Blackmagic Design DV/RESFA/EFCCS Specs

OS Compatibility	macOS 10.15 or Later Windows 10 (64-Bit)
Knobs	48 x Touch-Sensitive Control Knobs (4 per Channel)
Ports	1 x RJ45 Ethernet (10/100/1000 Base-T) 1 x USB Type-C (Software Configuration and Software Updates)
Power Supply	Internal: 100 to 240 VAC at 50/60 Hz, IEC C14 Mains Input
Power Usage	20 W Maximum
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Relative Humidity	0 to 90% Noncondensing
Dimensions	19.3 x 9 x 2.6" / 49 x 22.9 x 6.7 cm
Weight	11.5 lb / 5.2 kg

Packaging Info

Package Weight	13.46 lb
Box Dimensions (LxWxH)	22.2 x 13.1 x 6.6"

Frequently Asked Questions

Does it work alone?

It is designed to pair with the Fairlight Console Channel Fader (sold separately) for full hands-on control.

What are the control modes?

In-line channel, single channel (up to 192 parameters), and master bus modes.

How does it connect?

Over Ethernet, with USB-C for configuration and updates.
