Blackmagic Design Cloud Store Mini 16TB – Network Media Storage
Product Overview

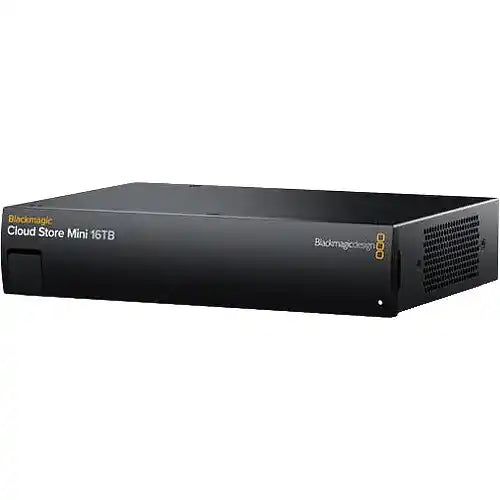

The Blackmagic Design Cloud Store Mini 16TB is a compact, high-performance network storage unit for collaborative film, television, and post-production work. In a half-rack chassis it pairs a four-card M.2 NVMe flash core in RAID 0 with a 10G Ethernet interface, delivering fast, low-latency shared access. A built-in HDMI display shows real-time status, and cloud sync simplifies sharing files across teams and locations.
Product Description
This 16TB Mini uses four M.2 NVMe SSDs in a RAID 0 flash core to sustain the maximum possible speed over its 10G Ethernet port, making it well suited to single-room teams that need fast shared media. A USB-C port with built-in Ethernet lets a laptop connect directly without an adapter, and the unit also has a 1G Ethernet connection. The HDMI monitor output provides live visual feedback — storage usage, network activity, and sync status — on any connected TV or display. It shares over SMB and supports cloud sync, and it's managed by the free Blackmagic Cloud Store utility for Mac and Windows. The half-rack form factor keeps it portable for location use.
Key Features
- 16TB flash core — Four M.2 NVMe SSDs in RAID 0 for sustained speed.
- 10G Ethernet — High-speed, low-latency network access; plus 1G Ethernet.
- USB-C direct connect — Built-in Ethernet over USB for laptops.
- HDMI status display — Live storage, network, and sync feedback.
- SMB sharing & cloud sync — Shares over SMB with cloud sync support.
- Half-rack and portable — Compact chassis for studio or location.
Technical Specifications
| Model | DWCLDE/CLDMINI16 |
| Storage Capacity | 16 TB (4× M.2 NVMe SSD) |
| RAID | RAID 0 |

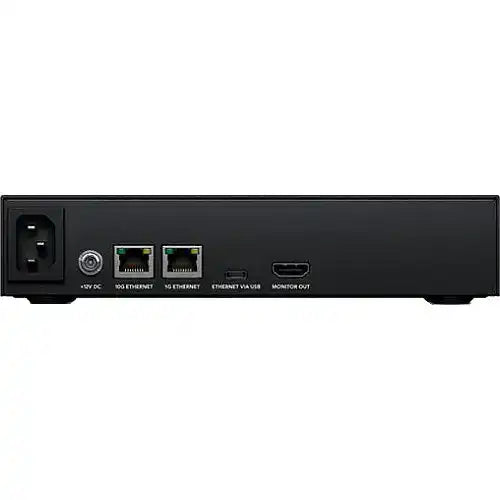

| Network | 10G Ethernet; 1G Ethernet; USB-C (Ethernet over USB) |
| Monitor Output | HDMI (status display) |
| Protocols | SMB; cloud sync support |
| Form Factor | Half-rack, portable |
| Power | IEC C14 AC |
| Operating Temperature | 0–40°C |
FAQ
What RAID does the Mini use? A four-card RAID 0 flash core, tuned to sustain the maximum speed of its 10G Ethernet port.
Can I plug a laptop in directly? Yes — the USB-C port has built-in Ethernet, so a laptop can connect without a separate adapter.
How does it compare to the Cloud Store 320TB? The Mini is a compact half-rack unit with a single 10G port and a RAID-0 core for speed and portability; the 320TB flagship adds far greater capacity, four 10G ports, RAID 5, and redundant power.
Is there a status display? Yes — an HDMI monitor output shows storage usage, network activity, and sync status.
