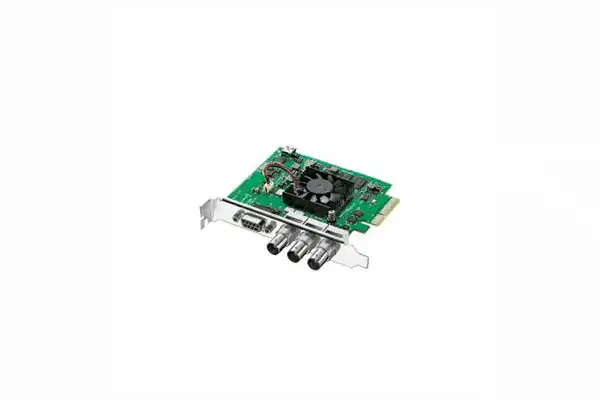

Blackmagic Design Decklink SDI 4K Capture & Playback Card - BDLKSDI4K
Blackmagic Design Decklink SDI 4K Capture & Playback Card - BDLKSDI4K is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Blackmagic Design Decklink SDI 4K Capture & Playback Card - BDL...
Product Overview
The Blackmagic Design DeckLink SDI 4K is a PCIe capture and playback card with a single multi-rate SDI input and output that handle SD, HD, 3G, and 6G-SDI signals up to Ultra HD 4K and DCI 4K. It also offers reference input and RS-422 deck control for editing and OEM workflows on Mac, Windows, and Linux.
Key Specs
- PCIe capture and playback card
- Single multi-rate SDI in and out
- SD, HD, 3G, and 6G-SDI up to UHD/DCI 4K
- Reference input and RS-422 deck control
- For Mac, Windows, and Linux
Product Description
The Decklink SDI 4K Capture & Playback Card from Blackmagic Design features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the Decklink SDI 4K includes RS-422 deck control, internal keying, and a reference input.
Decklink SDI 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. Decklink SDI 4K is compatible with Mac, Windows, and Linux based workstations.
Features
- PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
- 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
- 10-bit, 4:4:4 1080p by single-link 6G-SDI
- HD to SD down-conversion
- SD to HD up-conversion
- Hardware cross conversion between 720p and 1080p on playback
- RS-422 deck control
- Internal keying
- Reference input
- Blackburst and tri-sync
- Supports 16 channels of embedded SDI audio in HD, 2K, and 4K resolutions; 8 channels in SD
Specification
Blackmagic Design SDI Specs
| System Connection | PCIe 1.0 x1 |
| Video Inputs | 1 x BNC (6G-SDI) |
| Input Video Format | SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
| Video Outputs | 1 x BNC (6G-SDI) |
| Output Video Format | SDI (10-Bit 4:4:4/4:2:2) 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps 720p 50/59.94/60 fps 1080p 23.98/24/25/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 4K 23.98/24/25 fps DCI 2K 23.98/24/25 fps |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
| HDCP Support | None |
| HDR Compatibility | Not Specified by Manufacturer |
| Operating Temperature | 37 to 72°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Certifications | C-Tick, CE, FCC *as per Manufacturer |
| Dimensions | 3.75" / 9.53 cm |
| Weight | 4.5 oz / 128 g |
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 5.5 x 5.3 x 1.1" |
Frequently Asked Questions
What connections does it have?
A single multi-rate SDI input and output, plus reference and RS-422 deck control.
What resolutions are supported?
SD, HD, and Ultra HD/DCI 4K via 6G-SDI.
Which systems work with it?
Mac, Windows, and Linux.
