Blackmagic Design DeckLink Mini Recorder 4K - BDLKMINIREC4K

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: BDLKMINIREC4K
No reviews
Price:
$195.00

Description

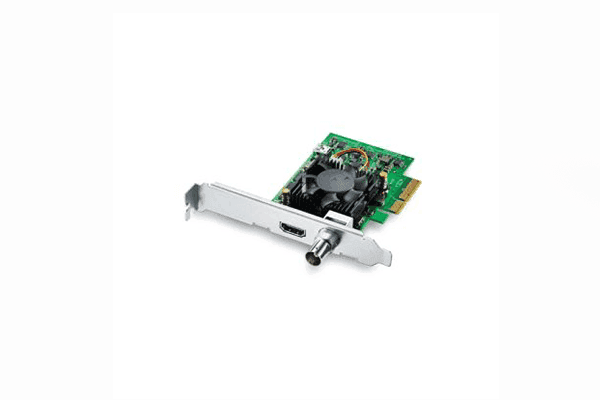

The DeckLink Mini Recorder 4K from Blackmagic Design is a low profile PCIe capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer! The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI, along with support for Rec. 2020 color space. The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more! You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slots.

  • SD/HD/3G/6G-SDI Input
  • HDMI Input
  • PCI-Express 2.0 x4 Interface
  • DCI 4K, UHD, HD, and SD Video Support
  • 10-Bit Processing
  • Hardware Color Space Conversion
  • Software HD Down-Conversion
  • MacOS X, Windows, and Linux Compatible

Blackmagic Design Mini Recorder 4K Specs
System Connection PCIe 2.0 x4
Video Inputs 1 x BNC (6G-SDI) Female
1 x HDMI (HDMI 2.0a) Female
Audio Inputs None
Input Video Format SDI (8/10-Bit 4:2:2 YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30 fps
DCI 2K 23.98/24/25 fps
DCI 2KPsF 23.98/24/25 fps
SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines
480i / 525 lines
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24/25 fps
UHD 4K 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576i / 625 lines
480i / 525 lines
Embedded Audio SDI: 16-Channel
HDMI: 8-Channel
Standards
Video Standard Compliance SMPTE 259M/292M/296M/372M/425M/ST-2081
ITU -R BT.601/BT.656
Hardware
OS Compatibility Windows 7 or Later
macOS 10.14 or Later
Linux
*As of April, 2020: Check with manufacturer for the most up-to-date compatibility
Power Consumption 8 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
General
Dimensions 4.7" / 11.94 cm
Weight 3.17 oz / 90 g
Packaging Info
Package Weight 0.4 lb
Box Dimensions (LxWxH) 5.4 x 5.3 x 1.2"
