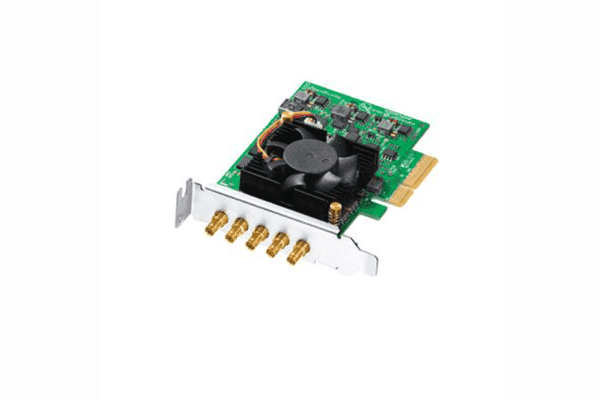

Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card - BDLKDUO2LP

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: BDLKDUO2LP
No reviews
Price:
$495.00

Description

Featuring 4 independent mini 3G-SDI connections, DeckLink Duo 2 Mini is a compact, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60! You get the flexibility of 4 separate capture or playback cards in one! Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more!

The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.

  • Low-profile PCIe capture/playback card compatible with macOS, Windows, and Linux-based workstations and servers
  • Up to 1080p60 capture/playback
  • 8-/10-bit 4:2:2 in all modes up to 1080p30
  • 12-bit 4:4:4 up to 1080p30 in playback mode
  • HD to SD downconversion
  • SD to HD upconversion
  • Hardware cross conversion between 720p and 1080p on playback
  • Rec. 601 and Rec. 709 color space
  • BNC reference input
  • Blackburst and tri-sync
  • Supports 16 channels of embedded 24-bit 48 kHz SDI audio in HD and SD resolutions

Blackmagic Design Duo 2 Specs
Supported Operating Systems macOS 10.13, 10.14 or Later
Windows 7, 8.1, 10 (All 64-Bit)
Linux
Inputs/Outputs 4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
1 x Reference In
Sync Input Tri-Sync or Black Burst
Computer Interface PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)
Audio Channels 16 x Embedded, HD and SD (Input and Output)
Video Support HD:
1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF: 23.98, 24, 25, 29.97, 30
1080i: 50, 59.94, 60
720p: 50, 59.94, 60

SD:
525i: 59.94 NTSC
625i: 50 PAL
Audio Sample Rate 24-Bit, 48 kHz
Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4
Conversion Modes Playback: 720p to 1080p, 1080p to 720p
Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)
Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)
Color Space Conversion: Hardware-Based, Real-Time
Color Space Rec. 601, Rec. 709
SDI Color Precision 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Video Sampling 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
SDI Metadata Support RP 188/SMPTE 12M-2 and Closed Captioning
Power Consumption 10 W
Certifications FCC, CE, and C-Tick
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Relative Humidity (non-condensing) 0 to 90%
Length 3.9" / 9.9 cm, Low-Profile Form Factor
Weight 3.1 oz / 87 g
Packaging Info
Package Weight 0.29 lb
Box Dimensions (LxWxH) 5.3 x 4.15 x 1.15"
