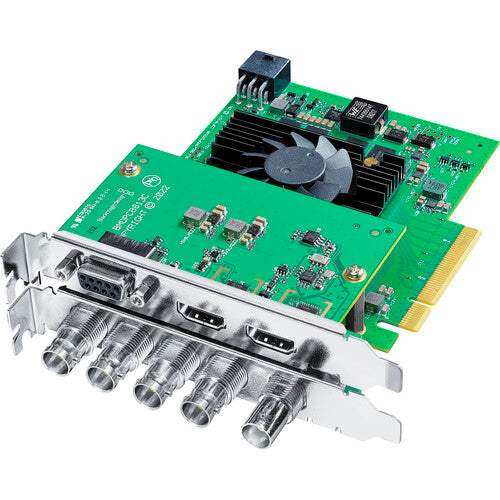

Blackmagic Design DeckLink 8K Pro G2 – 8K Capture Card
Product Overview
The Blackmagic Design DeckLink 8K Pro G2 is an 8K PCIe capture and playback card with four bidirectional 12G-SDI ports plus HDMI 2.1 input and output, supporting all SD, HD, Ultra HD, 4K, and 8K standards. It captures and plays 8/10-bit YUV 4:2:2 and 10/12-bit RGB 4:4:4 with full Rec. 2020 color, at up to 120 fps in HD/4K and 60 fps in 8K. As a high-end PCIe SDI/HDMI capture card for macOS, Windows, and Linux, it targets feature-film, high-frame-rate, and HDR workflows.
Product Description
The DeckLink 8K Pro G2 combines four 12G-SDI connections with HDMI 2.1 in and out to cover everything from SD up to 8K (8192x4320 and 7680x4320) to 60p, 4K DCI/UHD to 120p, and HD to 120p. Using the free DeckLink SDK, the four SDI links can be configured in any direction, format, or frame rate up to 4K DCI 60p for true multi-channel capture and playback. It supports 8/10/12-bit 4:4:4 and 4:2:2 (RGB/YUV) with full Rec. 2020 color and Hybrid Log Gamma HDR, and the SDI connections carry up to 64 channels of embedded audio (32 over HDMI). A blackburst reference input and RS-422 deck control round out the I/O for integration into professional pipelines. As a PCIe capture and playback card it is compatible with macOS, Windows, and Linux and works with the broad ecosystem of Blackmagic-supported editing, grading, and live software, making it suited to the next generation of high-resolution, high-frame-rate, and HDR production.
Key Features
- 8K capture and playback — Handles SD, HD, UHD, 4K, and 8K up to 60p (8K) and 120p (HD/4K).
- 4× bidirectional 12G-SDI — Plus HDMI 2.1 input and output for modern high-bandwidth sources.
- Deep color and HDR — 8/10/12-bit 4:4:4 / 4:2:2, full Rec. 2020, Hybrid Log Gamma.
- Multi-channel via SDK — Configure up to four streams in any direction up to 4K DCI 60p.
- 64-channel SDI audio — Up to 64 embedded channels over SDI (32 over HDMI).
- RS-422 deck control — Industry-standard control for broadcast deck integration.
- Reference input — Blackburst reference for genlocked workflows.
- Cross-platform — macOS, Windows, and Linux compatible.
Typical Applications
- Broadcast studio — High-resolution, high-frame-rate ingest and playout in an SDI/HDMI workstation.
- Auditorium — Capture/playback workstation for large-venue 4K/8K production.
- Government space — High-quality proceedings capture within a professional workstation.
Technical Specifications
| Model | BDLKHCPRO8K12GG2 |
| Video I/O | 4× 12G-SDI (BNC) bidirectional; HDMI 2.1 in and out |
| Other I/O | 1× blackburst reference; 1× DE-9 RS-422 |
| Max Resolution | 8K (8192/7680 × 4320) to 60p; 4K to 120p; HD to 120p |
| Color | 8/10/12-bit 4:4:4 / 4:2:2 (RGB, YUV); Rec. 2020 |
| HDR | Hybrid Log Gamma |
| Embedded Audio | SDI 64-channel; HDMI 32-channel |
| Standards | SMPTE 259M/274M/292M/296M/372M/424M/425M/2081/2082 |
| OS Compatibility | macOS 13+, Windows 10+ (64-bit), Linux |
| Power | 30 W |
| Dimensions | 6.41" / 16.28 cm |
| Weight | 10.4 oz / 295 g |
Frequently Asked Questions
What resolutions and frame rates does it support?
SD through 8K — up to 60 fps in 8K, and up to 120 fps in HD and 4K.
How many capture/playback streams can it run?
Using the DeckLink SDK, up to four streams in any direction, format, or frame rate up to 4K DCI 60p.
Does it support HDR and wide color?
Yes — full Rec. 2020 color with Hybrid Log Gamma HDR, in up to 12-bit 4:4:4.
Which connections and OSes are supported?
Four bidirectional 12G-SDI plus HDMI 2.1 in/out, RS-422 deck control, on macOS, Windows, and Linux.
