Blackmagic Design DaVinci Resolve Micro Panel with Resolve Studio Software - DV/RES/BBPNLMIC
Blackmagic Design DaVinci Resolve Micro Panel with Resolve Studio Software - DV/RES/BBPNLMIC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Blackmagic Design DaVinci Resolve Micro Panel with Resolve Studio S...
Product Overview

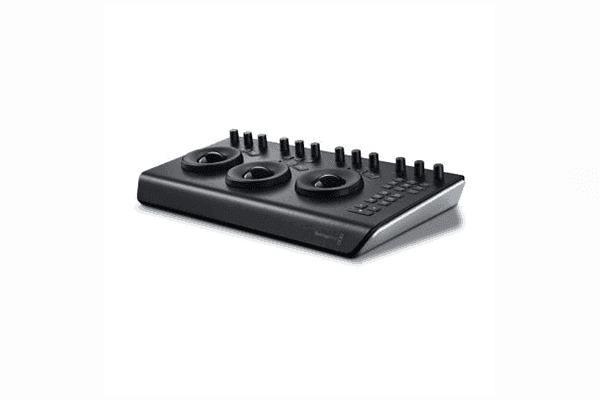

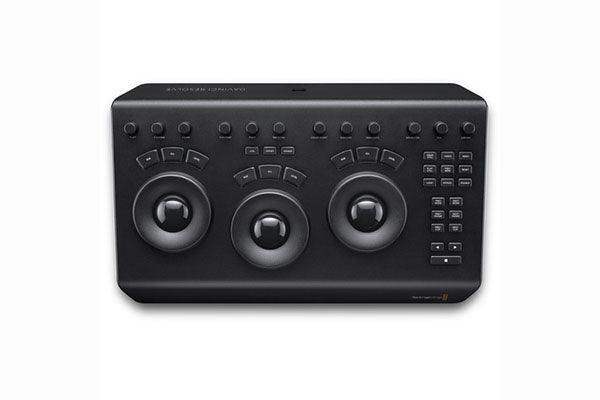

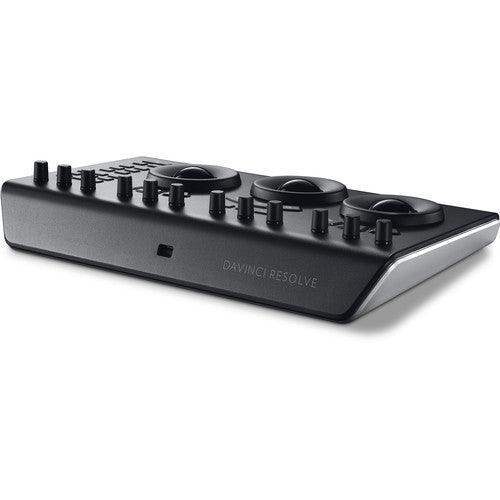

The Blackmagic Design DaVinci Resolve Micro Panel is a portable color grading control surface that speeds up DaVinci Resolve far beyond a keyboard and mouse. It features three high-resolution weighted trackballs, 12 control knobs for primary color tools, and 18 dedicated keys for the most-used grading functions, and this version includes a DaVinci Resolve Studio software license, making it ideal for editors and colorists who need portability.
Key Specs
- Portable color grading surface for DaVinci Resolve
- 3 weighted trackballs and 12 high-resolution control knobs
- 18 dedicated grading and transport keys
- USB-C connection, bus-powered
- Includes a DaVinci Resolve Studio license
Product Description
Blackmagic DaVinci Resolve Micro Panel
The DaVinci Resolve Micro Panel from Blackmagic Design is a portable control surface that provides more control and a faster workflow to DaVinci Resolve software than working with a keyboard and mouse alone. Suitable for editors and colorists that need a portable control surface. It features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the Resolve software. Eighteen dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.
The Micro Panel uses a USB 3.0 Type-C interface that allows you to connect to a computer or laptop and power the panel, alleviating the need for a separate power supply. It also interfaces with Mac, Windows, or select Linux systems. For the panel to work with Resolve, your computer must be running DaVinci Resolve 12.5.5 or DaVinci Resolve Studio 12.5.5 or later. An included USB 3.0 Type-A to USB Type-C cable provides backward compatibility for systems that have USB 3.0 Type-A ports.
- Small enough to take with you, so you can bring it to any Resolve system (12.5.5 or later) and do color correction on location or at the editor's suite
- Shares basic layout with Mini and Advanced Panels
- Interfaces with and controls software
- Three track balls with outer control rings
- Log and Offset color-correction selection buttons
- Custom control knobs with 4096 steps per rotation and push-button reset
- Primary Correction Creative Control Knobs
- Control knobs are grouped into four sets of three knobs
- Luminance
-
- Y lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows changing the black point without changing saturation.
- Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.
- Contrast
-
- Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
- Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
- Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features making it popular for beauty shots.
- Detail
-
- Color Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without over saturating the image.
- Shadow Control: Selectively lighten or darken shadow detail without affecting your images mid-tones.
- Highlight Control: Enable retrieving blown out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid tones for a natural-looking image.
- Saturation
- Increases or decreases overall image saturation, you can turn your color image into a grayscale image with this control.
- Hue Control: Rotate all hues of the image around 360° of the color wheel. The default setting is 50, which retains the original distribution of hues.
- Luminance Mix Control: Control the balance between the YRGB adjustments and Y only adjustments made using the Y channel lift, gamma, and gain controls.
Features
- 3 x High-Resolution Trackballs
- 12 x Primary Correction-Control Knobs
- 18 x Navigation and Transport Keys
- USB Type-C Interface
- Supports Mac and Windows
- Supports Select Linux Installations
- USB 3.0 Type-A to Type-C Cable Included
Specifications
Blackmagic Design DaVinci Resolve Micro Specs
| Controls | 30 x Pre-Labeled Key 12 x Dial 3 x Trackball |
| Display | None |
| OS Compatibility | Windows 10 or Later macOS 10.15 or Later CentOS 7.3 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| USB I/O | 1 x USB-C Female Input |
| Power Source | USB |
| Power Consumption | 2 W (Maximum) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 16.81 x 10.15 x 2.95" / 42.7 x 25.78 x 7.49 cm |
| Weight | 7.9 lb / 3.6 kg |
| Package Weight | 11.03 lb |
| Box Dimensions (LxWxH) | 20.3 x 14.5 x 5.1" |
Frequently Asked Questions
Does it include software?
Yes, this version includes a DaVinci Resolve Studio license.
How does it connect and power?
Over a single USB-C cable that also powers the panel; a USB-A to USB-C cable is included.
What Resolve version is required?
DaVinci Resolve 12.5.5 or later (current versions recommended).
