Blackmagic Design DaVinci Resolve Advanced Panel - DV/RES/AADPNL

Blackmagic Design SKU: DV/RES/AADPNL
No reviews

Sale price$27,585.00

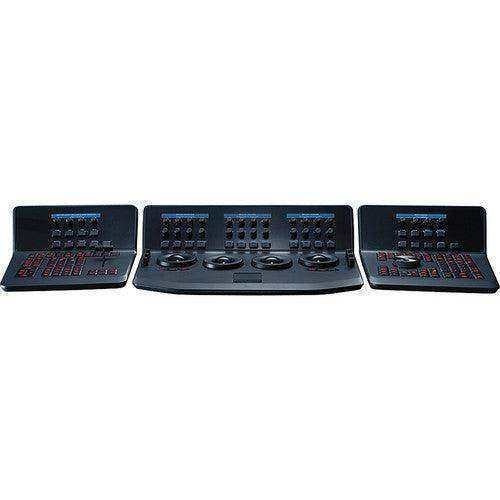

The DaVinci Resolve Advanced Panel from Blackmagic Design is a significant step up in functionality from the Micro or Mini panel. It consists of a main console and two auxiliary consoles, one on each side, as well as a slide-out keyboard in the center console. It enables one-touch access to virtually every control and parameter within the DaVinci Resolve software.

The center console incorporates four high-resolution, weighted trackballs and 30 soft, customizable control knobs for accessing color-correction tools in the Resolve software. The custom control knobs feature 4096 steps per rotation and push-button reset so you can achieve high-quality and precise color correction using the DaVinci Resolve system.

The Resolve control surface incorporates a slide-out keyboard that is useful when naming or renaming files, and it can be neatly tucked away when not in use. All functions are accessible via separate keys, such as the reference keys, and the fader T-bar that allows you to wipe between reference stills.

You can easily control the image sections via keys located for easy access at your natural hand positions. Lift, gamma, and gain adjustments along with RGB control are achieved via trackballs. Menus and indicators are visible via five high-resolution LCD screens that offer a view of the functions of all the knobs and buttons. Soft knobs that can precisely control parameters via single touch are provided, and no electrical contact eliminates wearing out of the knobs. Aesthetically illuminated keys are backlit using RGB color and intensity. Complete control of the project timeline or deck is offered via the jog/shuttle knob and transport controls.

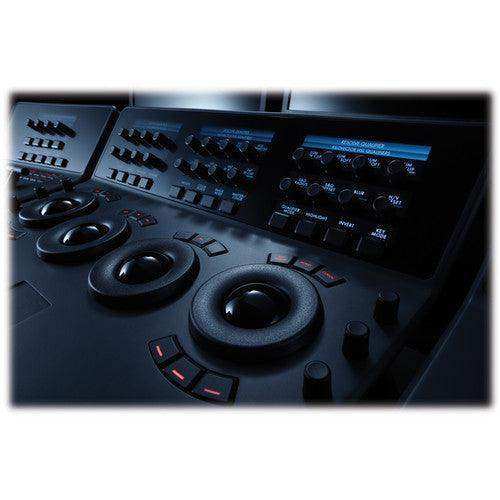

Menus, Soft Keys, and Soft Knob Control All Resolve panels have soft keys and variable control knobs within the LCD panel, which provide an accurate visual reference to the control without the risk of error. Trackball Panel The center panel has four trackballs, each with a surrounding control ring. The three trackballs to the left control lift, gamma, and gain when Resolve is set for primary grading. When in Log grading, they adjust lowlights, mid-tones, and highlights. The fourth trackball works similar to a mouse for moving the on-screen cursor. It can also be used to draw Power Windows, control color curve point position, and act as an offset control for the primary grade. Keyboard The center panel incorporates a slide-out keyboard that is useful when naming or renaming files, and it can be neatly tucked away when not in use. Luminance
  • Y lift control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows for changing the black point without changing saturation.
  • Y gamma control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.
  • Y gain: You can reduce hot spots or tweak the whites to define a look.
  • Contrast control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
  • Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
  • Mid-tone detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. It's often used for softening facial features, making it popular for beauty shots.
  • Color boost control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding color without oversaturating the image.
  • Shadow control: Selectively lighten or darken shadow detail without affecting your image's mid-tones.
  • Highlight control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid-tones, for a natural-looking image.
Saturation Increases or decreases overall image saturation; you can turn your color image into a grayscale image with this control.


  • Hue control: Rotates all hues of the image 360° around the color wheel. The default setting is 50, which retains the original distribution of hues.
  • Luminance mix control: Controls the balance between the YRGB adjustments and Y-only adjustments made using the Y channel lift, gamma, and gain controls.

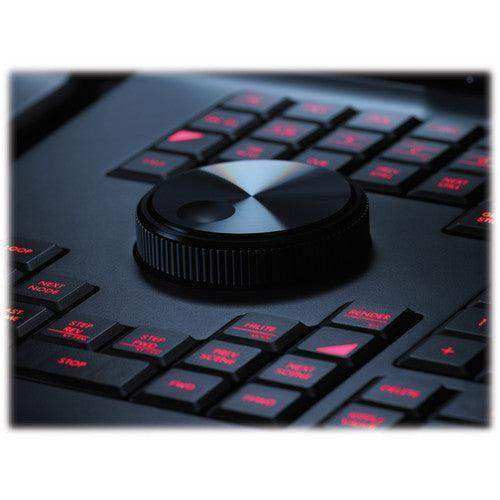

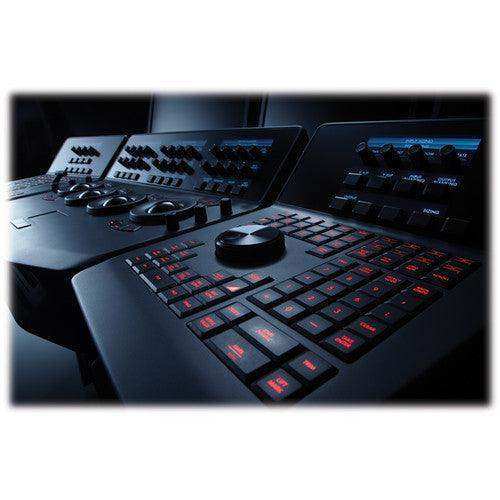

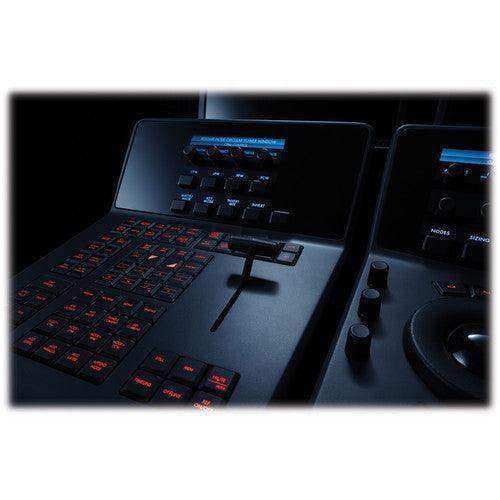

T-Bar Panel The panel features a T-bar mix/wipe control and a number of menu and function keys. You can position the T-bar panel on either side of the Trackball panel. Transport Panel The Transport panel features the timeline transport controls and a jog/shuttle control, as well as a numerical keypad and associated function keys. The Transport panel can be positioned on either side of the Trackball panel.
System Requirements for DaVinci Resolve System requirements as of DaVinci Resolve 18: Minimum System Requirements for Mac OS
  • macOS 11 Big Sur
  • 8GB of system memory. 16GB when using Fusion
  • Blackmagic Design Desktop Video version 12.0 or later
  • Integrated GPU or discrete GPU with at least 2GB of VRAM
  • GPU that supports Metal or OpenCL 1.2
Minimum System Requirements for Windows
  • Windows 10 Creators Update
  • 16GB of system memory. 32GB when using Fusion
  • Blackmagic Design Desktop Video 10.4.1 or later
  • Integrated GPU or discrete GPU with at least 2GB of VRAM
  • GPU that supports OpenCL 1.2 or CUDA 11
  • NVIDIA/AMD/Intel GPU Driver version–as required by your GPU
Minimum System Requirements for Linux
  • CentOS 7.3
  • 32GB of system memory
  • Blackmagic Design Desktop Video 10.4.1 or later
  • Discrete GPU with at least 2GB of VRAM
  • GPU that supports OpenCL 1.2 or CUDA 11
  • NVIDIA/AMD Driver version–as required by your GPU
  • Control Surface for Resolve Controls
  • T-Bar Panel and Transport Panel
  • Slide-Out Keyboard, Reference Keys
  • RGB Lift, Gamma, Gain Trackballs
  • Node-Based Real-Time Image Processing
  • 32-Bit Floating Point/YRGB Processing
  • 5 x LCDs with Real-Time Key Information
  • 30 x Soft Knobs, Illuminated Keys
  • Jog/Shuttle Knob and Transport Controls
  • Compatible with Mac, Linux, Windows

Blackmagic Design DaVinci Resolve Specs

Controls Center Panel
4 x Trackball
30 x Pre-Labeled Key
30 x Dial
Side Panel
1 x Slider
94 x Pre-Labeled Key
Side Panel
5 x Dial
86 x Pre-Labeled Key
Display 5 x LCD
OS Compatibility macOS 10.15 or Later
Windows 10 or Later
CentOS 7.3 or Later
*As of August, 2021: Check with manufacturer for the most up-to-date compatibility
USB Center Panel: 1 x USB Type-B Female Input (System Connection)
2 x USB Type-A Female Output (Side Panel Connection)
2 x USB Type-A Female Input
1 x Mini-USB Female Input (Software Updates)
Side Panel: 1 x USB Type-B Female Input
1 x Mini-USB Female Input (Software Updates)
Power I/O Center Panel:1 x 3W3 D-Sub Input
2 x 3W3 D-Sub Output
Side Panel:1 x 3W3 D-Sub Input
Power Source AC Adapter with Power Brick (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.5
Power Consumption 80 W (Maximum)
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90%
Dimensions Fully Assembled: 48.75 x 18.5 x 7.69" / 123.83 x 47 x 19.53 cm
Center Panel: 22.6 x 18.14 x 7.7" / 57.4 x 46.08 x 19.6 cm
Side Panel: 16.6 x 13.1 x 7.7" / 42.2 x 33.3 x 19.6 cm
Weight Fully Assembled: 48.06 lb / 21.8 kg
Packaging Info
Package Weight 61.1 lb
Box Dimensions (LxWxH) 32.5 x 23 x 18"
