Blackmagic Design 2110 IP Presentation Converter – Podium IP Converter
Product Overview

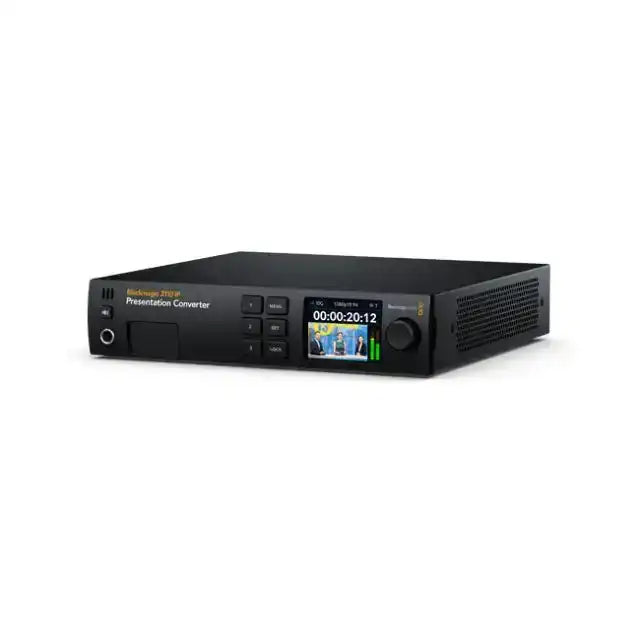

The Blackmagic Design 2110 IP Presentation Converter brings SMPTE ST-2110 IP video to speaker podiums and presentation spaces. It connects a presenter's laptop, microphones, and a projector at the podium, sending video into a 2110 IP system over a single 10G Ethernet connection while handling mic input and PA output locally. It supports resolutions up to DCI 4K60 and can power the presenter's laptop over USB-C.
Product Description

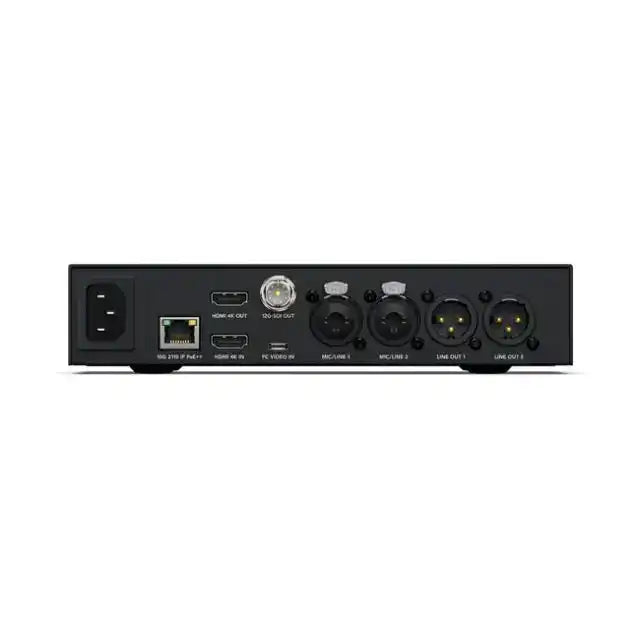

Designed for the lectern, this converter accepts HDMI and USB-C video from a presenter's computer and outputs to a projector, with the projector feed switchable between the local input and the 2110 IP return feed. A 45W USB-C port can power the laptop while it sends video. On the audio side it provides balanced XLR mic/line inputs with selectable phantom power, a balanced XLR output for PA speakers, and a 1/4" headphone output, with embedded audio across all I/O. A single 10G Ethernet (RJ45) connection carries bidirectional video and can power the entire converter over PoE, even while charging the laptop, so a podium needs only one cable back to the rack. The unit also includes 12G-SDI input and output.
Key Features
- Built for podiums — Connects laptop, mics, projector, and PA at the lectern.
- Up to DCI 4K60 — HDMI, USB-C, and 12G-SDI video in and out.
- Laptop power — 45W USB-C powers the presenter's computer.
- Mic and PA audio — XLR mic/line inputs with phantom power; XLR PA output; headphone jack.
- Single-cable IP — 10G Ethernet carries bidirectional video and can power the unit over PoE.
- Switchable projector feed — Show the local input or the 2110 IP return.
- ST-2110 compliant — Works within Blackmagic's 2110 IP product range.
Typical Applications
- Auditorium — Lectern connection point for presenter laptops, mics, and projection.
- House of worship — Podium video and audio into an IP production system.
- Conference room — Single-cable presenter input to a 2110 IP setup.
- All-hands room — Stage podium feeding video and PA audio over one Ethernet run.
Technical Specifications
| Model | CONVNVIPH/PRESC |
| Video I/O | 12G-SDI in/out; HDMI in/out; USB-C input |
| Network | 1× RJ45 10 GbE (ST-2110), PoE-capable |
| Audio | XLR mic/line in (phantom power); XLR PA out; 1/4" headphone out |
| Max Resolution | DCI 4K up to 60p |
| Laptop Power | 45W USB-C |
| Standards | SMPTE ST-2110 (-20/-21/-30/-40); multicast |
| Power | PoE over 10G Ethernet |
FAQ
What is this converter for? It sits at a speaker's podium, connecting a laptop, microphones, projector, and PA speakers, and sends the presentation video into a SMPTE ST-2110 IP system over a single Ethernet cable.
Can it power the presenter's laptop? Yes. Its 45W USB-C port can charge a laptop while that laptop sends video to the converter.
Does it need its own power supply? Not necessarily — the 10G Ethernet connection can power the whole converter over PoE, even while charging the laptop.
Can the projector show a return feed? Yes. The HDMI projector output can be switched between the local video input and the 2110 IP return feed.
