Blackmagic Design 2110 IP Mini BiDirect 12G SFP – Fiber Converter
Product Overview

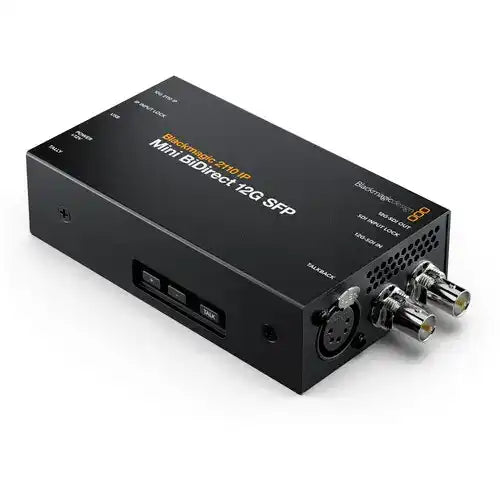

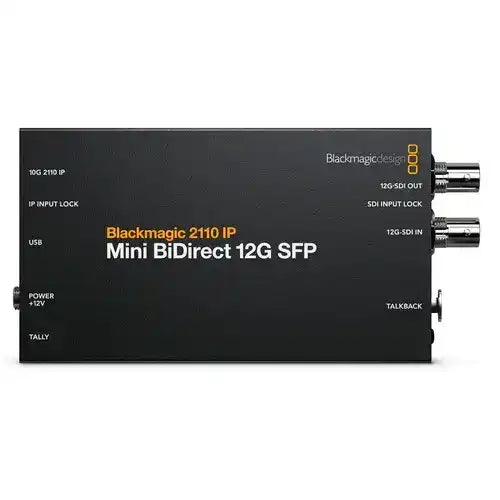

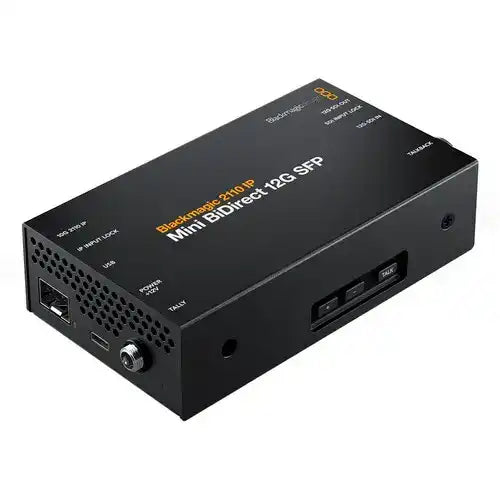

The Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter performs bidirectional 12G-SDI to SMPTE ST-2110 IP conversion in a compact unit, using an SFP socket for optical-fiber modules to carry signals over long distances. It's built for live production, broadcast facilities, and post-production moving to IP, supporting UHD 4K over fiber with talkback and video monitoring to and from a Studio camera. It can be powered over PoE or 10G Ethernet.
Product Description
This mini converter bridges 12G-SDI and ST-2110 IP in both directions, with an SFP cage that takes an optical-fiber module for long-distance, low-latency transport. It supports UHD 4K video over the fiber link and multi-rate SDI from SD through 12G. Beyond video, it carries talkback and provides video monitoring to and from a connected Studio camera, and it can draw power over PoE or its 10G Ethernet connection. A Windows/macOS software utility handles configuration. The lightweight aluminum housing suits rack or field use. For a copper-Ethernet alternative, a separate non-SFP version is available.
Key Features
- Bidirectional 12G-SDI ↔ IP — Convert SDI to ST-2110 and back over fiber.
- SFP fiber socket — Optical module for long-distance runs.
- UHD 4K over fiber — Supports 4K video; multi-rate SDI from SD to 12G.
- Talkback & monitoring — Talkback and video monitoring to/from a Studio camera.
- PoE power — Powered over PoE or 10G Ethernet.
- Software utility — Configuration via Windows/macOS utility.
- Lightweight build — Aluminum mini-converter housing.
Typical Applications
- Broadcast studio — Integrating SDI equipment into a 2110 IP system over fiber.
- Auditorium — Long-distance fiber links for live multi-camera production.
- House of worship — Camera connectivity and monitoring over an IP fiber run.
Technical Specifications
| Model | CONVNVIPF/IP/12GSFP |
| SDI Support | 12G / 6G / 3G / HD / SD-SDI |
| Conversion | Bidirectional (SDI ↔ ST-2110 IP) |
| Connectivity | 1× SFP cage (optical fiber) |
| Network | SMPTE ST-2110 IP |
| Max Resolution | UHD 4K |
| Features | Talkback; video monitoring to/from Studio camera |
| Standards | SMPTE ST-2110 |
| Power | External DC; PoE / 10G Ethernet |
FAQ
How does this differ from the copper version? This model uses an SFP optical-fiber module for long-distance connectivity; a separate version connects over copper RJ45 Ethernet.
Is conversion one-way or both ways? Both — it converts 12G-SDI to ST-2110 IP and back in a single unit.
Does it support talkback and camera monitoring? Yes — it carries talkback and provides video monitoring to and from a connected Studio camera.
How is it powered? It can draw power over PoE or its 10G Ethernet connection, with external DC also supported.
