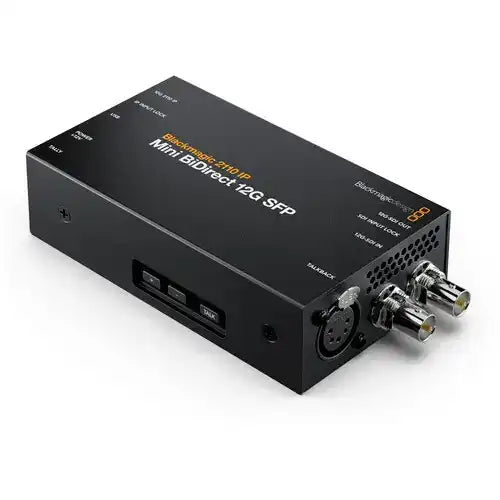

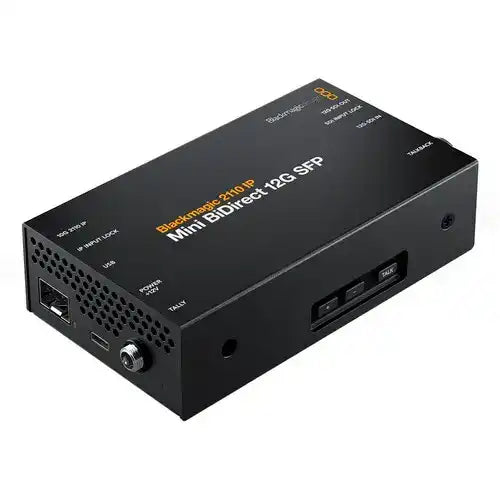

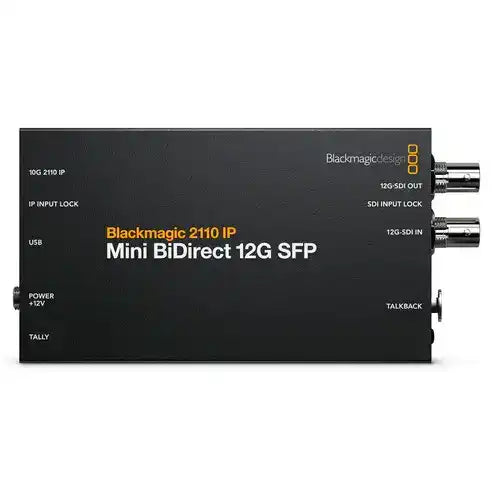

Blackmagic Design 2110 IP Mini BiDirect 12G – Copper Converter
Product Overview
The Blackmagic Design 2110 IP Mini BiDirect 12G Converter bridges traditional SDI workflows with SMPTE ST-2110 IP infrastructure in a compact, broadcast-grade unit. It performs bidirectional conversion between 12G-SDI and 2110 IP over 10G Ethernet, handling resolutions up to 2160p60 and multi-rate SDI from HD through 12G. It's built for studios, OB vans, and control rooms transitioning to IP, with locking connectors for secure operation.
Product Description
This mini converter handles 12G-SDI to ST-2110 IP conversion in both directions, so a single unit can send an SDI source onto an IP network or take an IP feed back out to SDI. It supports multi-rate SDI — 12G, 6G, 3G, and HD-SDI — for resolutions up to 2160p60, and carries embedded audio over both the SDI and IP connections. The compact body suits rack or field use, and locking power, SDI, and IP connectors keep it secure in live environments. A separate SFP version is available for optical-fiber connectivity.
Key Features
- Bidirectional 12G-SDI ↔ IP — Convert SDI to ST-2110 and back in one unit.
- Up to 2160p60 — Full UHD support.
- Multi-rate SDI — 12G, 6G, 3G, and HD-SDI.
- 10G Ethernet — SMPTE ST-2110 over copper.
- Embedded audio — Audio over SDI and IP.
- Secure connectors — Locking power, SDI, and IP ports.
- Compact — Mini-converter form factor for rack or field.
Typical Applications
- Broadcast studio — Integrating SDI gear into a 2110 IP system over copper Ethernet.
- Auditorium — Bidirectional SDI/IP links for live production.
- House of worship — Bringing existing SDI equipment onto an IP network.
Technical Specifications
| Model | CONVNVIPF/IP/12G |
| SDI Support | 12G / 6G / 3G / HD-SDI |
| Conversion | Bidirectional (SDI ↔ ST-2110 IP) |
| Network | SMPTE ST-2110 IP over 10G Ethernet (RJ45) |
| Max Resolution | Up to 2160p60 |
| Audio | Embedded (SDI / IP) |
| Standards | SMPTE ST-2110 |
| Power | Locking DC input |
FAQ
How does this differ from the SFP version? This model uses copper RJ45 Ethernet; a separate SFP version connects over optical fiber for longer distances.
Is conversion one-way or both ways? Both — it converts 12G-SDI to ST-2110 IP and back in a single unit.
Which SDI rates does it support? 12G, 6G, 3G, and HD-SDI, for resolutions up to 2160p60.
Does it carry audio? Yes — embedded audio over both SDI and IP.
