Blackmagic Design PYXIS 12K PL – Large-Format Cube Camera
Product Overview

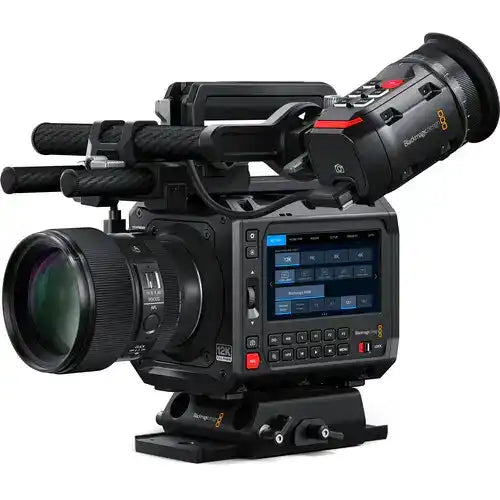

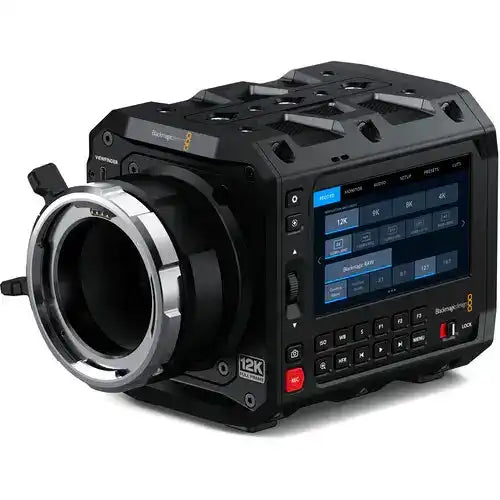

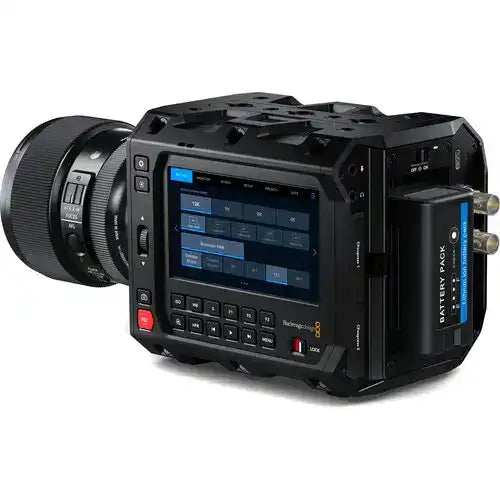

The Blackmagic Design PYXIS 12K PL pairs Blackmagic's large-format 12K sensor with an ARRI PL lens mount for compatibility with professional cinema lenses. It captures 98.8 megapixel images (12288×8040) at 16 stops of dynamic range in a compact, modular cube-style body, recording Blackmagic RAW and ProRes for feature films, television, and high-end commercial productions.
Product Description
This PL version of the PYXIS 12K is built around a 35.64×23.32mm large-format CMOS sensor with an effective 98.8 megapixels and a built-in optical low-pass filter matched to the sensor. It records Blackmagic RAW up to 12K 3:2 open gate to dual CFexpress Type B cards or external USB-C drives, with a wide range of resolution and frame rate modes up to 112 fps. The ARRI PL mount supports lens communication, and the compact cube body uses switchable side plates with extensive 1/4"-20, 3/8"-16, and M4 mounting points for flexible rigging. A fixed 4" 1080 HDR touchscreen, 12G-SDI output, 10 Gigabit Ethernet, USB-C control/data and viewfinder ports, Bluetooth control, and mini-XLR / 3.5mm audio round out the connectivity. The PYXIS 12K is also available in EF and LPL mounts.
Key Features
- Large-format full-frame 12K sensor — 35.64×23.32mm CMOS, 98.8MP (12288×8040).
- 16 stops of dynamic range — Blackmagic RAW up to 12K 3:2 open gate.
- Built-in optical low-pass filter — Matched to the sensor.
- ARRI PL lens mount — With lens communication, for professional cinema lenses.
- Dual CFexpress + USB-C — Two Type B card slots plus external recording.
- 4" HDR touchscreen — 1920×1080 fixed display.
- 10GbE & 12G-SDI — Networking and monitoring output.
- HFR button & assignable shortcuts — Plus mini-XLR and 3.5mm audio inputs.
Technical Specifications
| Model | CINECAMCPYXO12LFPL |
| Sensor | 35.64×23.32mm large-format CMOS |
| Resolution | Effective 98.8MP (12288×8040) |
| Dynamic Range | 16 stops |
| Lens Mount | ARRI PL (with lens communication) |
| Recording Formats | Blackmagic RAW, ProRes |
| Media | Dual CFexpress Type B; USB-C external drives |
| Max Frame Rate | Up to 112 fps (resolution dependent) |
| Video I/O | 1× 12G-SDI BNC out |
| Other I/O | USB-C (VF), USB-C (control/data), BNC ref/timecode, RJ45 10GbE |
| Audio | 3.5mm mic in; 3.5mm headphone out; stereo built-in mic |
| Power | LEMO 2-pin 12VDC; Sony BP-U series battery |
| Display | Fixed 4" 1920×1080 touchscreen LCD |
| Wireless | Bluetooth control; Android & iOS app |
| Dimensions | 5.94×4.69×4.17" (15.09×11.91×10.59 cm); 3.5 lb / 1.6 kg (body only) |
FAQ
Is the sensor Super 35? No — it's a large-format 35.64×23.32mm full-frame CMOS sensor at an effective 98.8MP.
Which lens mount is this? ARRI PL, with lens communication; EF and LPL versions are also available.
What does it record to? Dual CFexpress Type B cards or external USB-C drives, in Blackmagic RAW or ProRes.
What battery does it use? Sony BP-U series, or LEMO 2-pin 12VDC external power.
