Blackmagic Design Streaming Encoder HD – Hardware Encoder
Product Overview

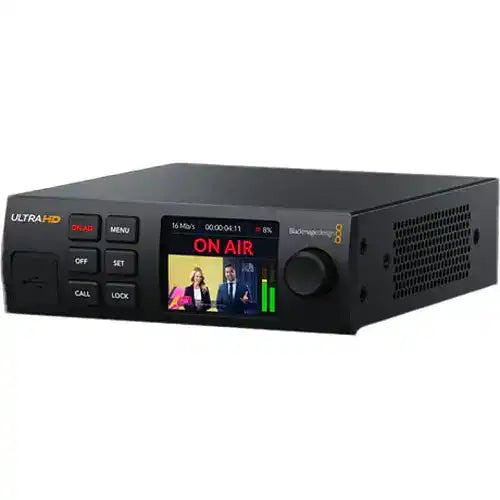

The Blackmagic Design Streaming Encoder HD is a self-contained hardware encoder that streams H.264 or H.265 over SRT or RTMP to a wide range of live platforms. It takes a 12G-SDI input up to UHD 4K60 and streams 1080p up to 60 fps, connecting over Gigabit Ethernet or tethering to a 4G/5G phone over USB-C. A built-in LCD, six front-panel buttons, and a spin knob give direct tactile control.
Product Description
This compact 1U encoder streams H.264 or H.265 via SRT or RTMP with direct support for services and software including Facebook, Twitch, YouTube, Vimeo, Restream.IO, BoxCast, Castr, Zoom, Microsoft Teams, OBS Studio, VLC, Wirecast, and Wowza. It streams over its built-in 10/100/1000BASE-T Ethernet port or tethers via USB-C to a high-speed 4G or 5G phone. The 12G-SDI input accepts resolutions up to UHD 4K60, with a 3G-SDI loop output plus SDI and HDMI monitor outputs. A 2.2" LCD shows video, audio, status, and menus, the rear USB-C can connect the unit as a webcam to a computer, and front-panel buttons and a spin knob provide hands-on control. It can be powered from mains (IEC) or a 12V DC 4-pin XLR source.
Key Features
- H.264 & H.265 streaming — To SRT or RTMP with direct platform support.
- 12G-SDI input — Accepts up to UHD 4K60; 3G-SDI loop output.
- 1080p up to 60 fps — Stream output resolution.
- Ethernet or phone — 10/100/1000BASE-T, or USB-C tether to 4G/5G phones.
- Monitor outputs — SDI and HDMI monitor outs.
- 2.2" LCD & tactile control — Six buttons and a spin knob.
- Webcam mode — Rear USB-C connects as a webcam to a computer.
- Flexible power — 100–240 VAC and 12V DC 4-pin XLR inputs.
Typical Applications
- House of worship — Live-streaming services to multiple platforms from an SDI feed.
- Auditorium — Streaming events with on-site monitoring and tactile control.
- Broadcast studio — Dedicated hardware encoding for SRT/RTMP delivery.
- Conference room — Streaming presentations over Ethernet or a phone connection.
Technical Specifications
| Model | BDLKWEB/C/SEDHD |
| Encoding | H.264 / H.265, 1920×1080 |
| Protocols | RTMP, SRT |
| Video Input | 1× 12G/6G/3G/HD-SDI (BNC), up to UHD 4K60 |
| Video Outputs | 1× 12G-SDI loop; 1× 12G-SDI monitor; 1× HDMI monitor |
| Network | 1× RJ45 10/100/1000BASE-T; cellular via 4G/5G phone tether |
| Other I/O | 2× USB-C (phone tether / webcam out) |
| Audio | SDI 16-ch; HDMI 2-ch; LAN/USB |
| Display | 2.2" LCD; 6 buttons and spin knob |
| Power | 1× IEC C14; 1× 4-pin XLR 12V DC (25 W) |
| Dimensions | 6.9 × 5.5 × 1.75" (1U); 1.66 lb / 753 g |
FAQ
What can it stream to? Any SRT or RTMP destination, including Facebook, Twitch, YouTube, Vimeo, Zoom, Teams, and software like OBS and Wirecast.
What input resolution does it accept? Up to UHD 4K60 over 12G-SDI; the stream output is 1080p up to 60 fps.
Can it stream without wired internet? Yes — it can tether over USB-C to a 4G or 5G phone.
Is it paired with a decoder? Yes — the Blackmagic Streaming Decoder 4K turns the stream back into SDI/HDMI at the receiving end.
