Blackmagic Design DeckLink Mini Recorder HD – HD Capture Card
Blackmagic Design DeckLink Mini Recorder HD – HD Capture Card is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Blackmagic Design DeckLink Mini Recorder HD – HD Capture Card
Product Overview

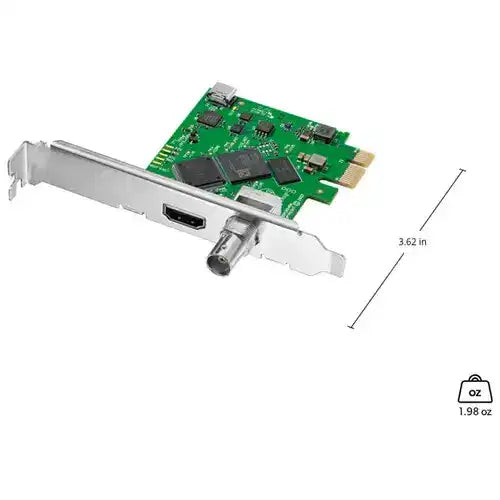

The Blackmagic Design DeckLink Mini Recorder HD is a compact, low-profile PCIe capture card that records 3G-SDI and HDMI sources up to 1080p60. Built to fit small-form-factor systems with a low-profile bracket, it handles straightforward HD capture for live production, streaming, or digitizing legacy content. As a low-profile HD capture card for macOS, Windows, and Linux, it's a budget-friendly single-channel input for editing and capture workstations.
Product Description
The DeckLink Mini Recorder HD provides one 3G-SDI input and one HDMI input, capturing up to 1080p60 in uncompressed 10-bit 4:2:2 as well as common compressed formats. It works with DaVinci Resolve, Premiere Pro, Final Cut Pro, and other major applications, making it well suited to simple live capture, streaming, or digitizing older HD and SD material. The low-profile PCIe Gen2 x4 card is bus-powered through the slot and fits compact PCs, with compatibility across macOS, Windows, and Linux. It's a dedicated single-channel capture card; for monitoring output, the matching Mini Monitor HD provides SDI and HDMI outputs instead.
Key Features
- 3G-SDI and HDMI input — Capture from either connection up to 1080p60.
- Uncompressed 10-bit 4:2:2 — Plus support for common compressed formats.
- Low-profile PCIe — Fits small-form-factor workstations; bus-powered.
- Broad software support — DaVinci Resolve, Premiere Pro, Final Cut Pro, and more.
- Cross-platform — macOS, Windows, and Linux compatible.
Technical Specifications
| Model | BDLKMINIREC3G |
| Inputs | 1× 3G-SDI, 1× HDMI |
| Max Resolution | 1080p60 |
| Capture Format | Uncompressed 10-bit 4:2:2 |
| Interface | PCIe Gen2 x4 (low-profile) |
| Power | Bus-powered via PCIe slot |
| OS Compatibility | macOS, Windows, Linux |
