Blackmagic Design DeckLink Mini Monitor HD – SDI/HDMI Output
Product Overview

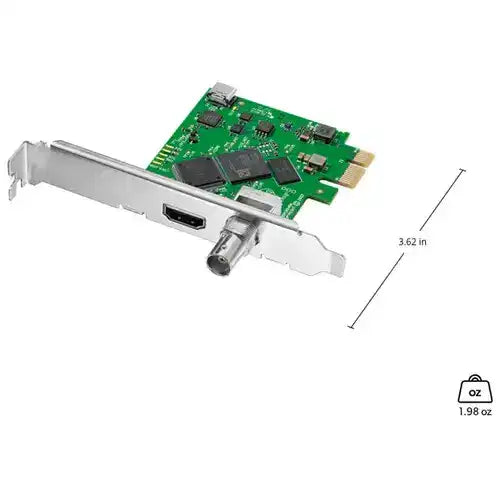

The Blackmagic Design DeckLink Mini Monitor HD is a compact, low-profile PCIe playback card that outputs video over 3G-SDI and HDMI up to 1080p60. It's designed to embed a professional monitoring output into a workstation or small production system, delivering uncompressed 10-bit 4:2:2 video with low latency. As a low-profile SDI/HDMI output card for macOS, Windows, and Linux, it suits editing and playback systems that need accurate video-out for a reference display.
Product Description
The DeckLink Mini Monitor HD provides a single 3G-SDI output and a single HDMI output, both up to 1080p60, for sending a clean program or timeline feed to a broadcast monitor or display. It outputs uncompressed 10-bit 4:2:2 video for accurate color and low-latency monitoring, and works with DaVinci Resolve, Premiere Pro, Final Cut Pro, and other major applications. The low-profile PCIe Gen2 x4 card is bus-powered through the slot, fitting compact and small-form-factor PCs, and is compatible with macOS, Windows, and Linux. It's a dedicated video-output card; for capture, the matching Mini Recorder HD provides an input instead.
Key Features
- 3G-SDI and HDMI output — Dual output connections up to 1080p60.
- Uncompressed 10-bit 4:2:2 — Accurate, low-latency monitoring output.
- Low-profile PCIe — Fits small-form-factor workstations; bus-powered.
- Broad software support — DaVinci Resolve, Premiere Pro, Final Cut Pro, and more.
- Cross-platform — macOS, Windows, and Linux compatible.
Technical Specifications
| Model | BDLKMINIMON3G |
| Outputs | 1× 3G-SDI, 1× HDMI |
| Max Resolution | 1080p60 |
| Output Format | Uncompressed 10-bit 4:2:2 |
| Interface | PCIe Gen2 x4 (low-profile) |
| Power | Bus-powered via PCIe slot |
| OS Compatibility | macOS, Windows, Linux |
