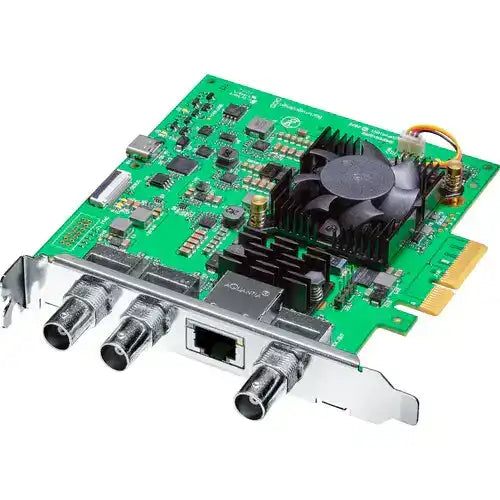

Blackmagic Design DeckLink IP/SDI HD – IP & SDI Capture Card
Product Overview
The Blackmagic Design DeckLink IP/SDI HD is a hybrid capture and playback card that combines SMPTE 2110 IP workflows with traditional 3G-SDI in a single low-profile PCIe card. It pairs dual-channel IP capture and playback over 10G Ethernet with two 3G-SDI inputs and two 3G-SDI outputs, supporting HD up to 1080p60. As an IP-and-SDI hybrid card for macOS, Windows, and Linux, it fits facilities bridging existing SDI gear into ST 2110 IP infrastructure.
Product Description
The DeckLink IP/SDI HD connects to a SMPTE 2110 network over 10G RJ45 Ethernet while also providing two 3G-SDI inputs and two 3G-SDI outputs, for a total of two IP capture, two IP playback, and four SDI channels. It supports SD and HD formats up to 1080p60 with industry-standard codecs — ProRes, DNxHD/HR, AVC-Intra, HEVC, and uncompressed 10-bit 4:4:4 — and includes a frame-buffer video firewall that isolates the workstation from the network. NMOS IS-04 and IS-05 support provides standardized device discovery and connection management. On a low-profile PCIe Gen2 x4 card, it fits compact and rack-mounted systems and integrates with major editing and broadcast applications. Within the DeckLink IP HD family, this model is distinguished by its onboard SDI ports: the IP/SDI HD adds 2-in/2-out 3G-SDI alongside 10G RJ45 IP, while the standard IP HD is RJ45-only and the IP HD Optical uses a 10G SFP+ fiber connection.
Key Features
- IP and SDI in one card — Dual-channel SMPTE 2110 IP plus 2× 3G-SDI in and 2× out.
- 10G Ethernet (RJ45) — Copper connection to ST 2110 IP networks.
- HD up to 1080p60 — Plus legacy SD formats.
- Wide codec support — ProRes, DNxHD/HR, AVC-Intra, HEVC, uncompressed 10-bit 4:4:4.
- Video firewall — Frame-buffer isolation for network security.
- NMOS IS-04 / IS-05 — Standardized discovery and connection management.
- Low-profile PCIe Gen2 x4 — Fits compact and rack-mounted systems.
- Cross-platform — macOS, Windows, and Linux compatible.
Typical Applications
- Broadcast studio — Bridge SDI sources into a SMPTE 2110 IP workflow from one card.
- Government space — Mixed IP/SDI capture and playback for proceedings within a workstation.
- Training room — Capture and play back both IP and SDI feeds for recording systems.
Technical Specifications
| Model | BDLKIPFIP/SDI/HD |
| Interface | PCIe Gen2 x4 (low-profile) |
| Network | 10G RJ45 Ethernet (SMPTE 2110) |
| SDI Ports | 2× 3G-SDI in, 2× 3G-SDI out |
| Channels | 2 IP capture + 2 IP playback + 2 SDI in + 2 SDI out |
| Supported Formats | SD and HD up to 1080p60 |
| Codecs | ProRes, DNxHD/HR, AVC-Intra, HEVC, uncompressed 10-bit 4:4:4 |
| Security | Frame-buffer video firewall |
| IP Control | NMOS IS-04 / IS-05 |
| OS Compatibility | macOS, Windows, Linux |
| Warranty | 3 years |
Frequently Asked Questions
What makes this different from the other DeckLink IP HD cards?
It adds onboard 3G-SDI (2 in, 2 out) alongside 10G RJ45 IP, so it bridges SDI gear and ST 2110 in one card; the standard IP HD is RJ45-only and the Optical model uses SFP+ fiber.
How many channels does it provide?
Two IP capture, two IP playback, plus two SDI inputs and two SDI outputs.
What's the maximum resolution?
HD up to 1080p60, plus legacy SD formats.
Does it support NMOS and network security?
Yes — NMOS IS-04/IS-05 for discovery and control, plus a frame-buffer video firewall for network isolation.
