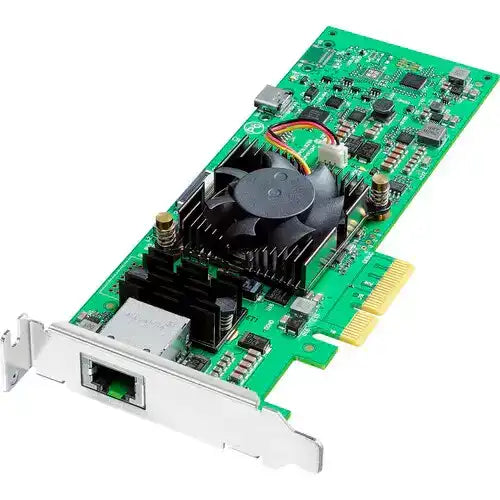

Blackmagic Design DeckLink IP HD – SMPTE 2110 Capture Card
Product Overview
The Blackmagic Design DeckLink IP HD is a SMPTE 2110 IP capture and playback card for network-based broadcast workflows. It provides dual bidirectional 3G-SDI channels, 10G Ethernet connectivity, and low-latency HD capture and playback, bridging traditional SDI gear with ST 2110 IP infrastructure. As an IP-based broadcast PCIe card for macOS, Windows, and Linux, it suits broadcasters and production facilities moving toward IP.
Product Description
The DeckLink IP HD connects workstations into SMPTE 2110 IP video environments while retaining two bidirectional 3G-SDI channels for simultaneous HD capture and playback. It supports 720p, 1080i, and 1080p up to 60 fps with 16 channels of embedded audio, and connects over a 10GBASE-T Ethernet interface for high-bandwidth, low-latency operation. On a PCIe Gen3 4-lane interface, it works with DaVinci Resolve, Premiere Pro, Media Composer, and other professional applications across macOS, Windows, and Linux. Within the DeckLink IP range, this HD model targets HD broadcast workflows over 10G Ethernet; the DeckLink IP 4K model steps up to 4K (2160p60) channels over 25G Ethernet for high-end UHD work. As a ST 2110 video capture and playback card, the IP HD is a practical entry point for facilities transitioning SDI rooms to IP.
Key Features
- SMPTE 2110 IP support — Integrates with industry-standard IP video workflows.
- Dual 3G-SDI channels — Two bidirectional channels for simultaneous HD capture and playback.
- 10G Ethernet — 10GBASE-T for high-bandwidth, low-latency connectivity.
- Wide HD format support — 720p, 1080i, and 1080p up to 60 fps.
- 16-channel embedded audio — Full multi-channel audio handling.
- Low-latency performance — Real-time streaming and operation.
- Broad software support — DaVinci Resolve, Premiere Pro, Media Composer, and more.
- Cross-platform — macOS, Windows, and Linux compatible.
Typical Applications
- Broadcast studio — Bridge SDI sources into a SMPTE 2110 IP production workflow.
- Government space — IP-based capture/playback for proceedings within a workstation.
- Training room — HD capture and playback over IP infrastructure for recording systems.
Technical Specifications
| Model | BDLKIPBIP/HD |
| Video Standards | SMPTE 2110 IP video |
| SDI Channels | 2× bidirectional 3G-SDI |
| Supported Formats | 720p, 1080i, 1080p up to 60 fps |
| Ethernet | 10GBASE-T |
| Audio | 16-channel embedded |
| Interface | PCIe Gen3 x4 |
| OS Compatibility | macOS, Windows, Linux |
Frequently Asked Questions
What IP standard does it use?
SMPTE 2110, for integration into modern network-based broadcast production.
How many SDI channels does it have?
Two bidirectional 3G-SDI channels for simultaneous HD capture and playback.
How does it differ from the DeckLink IP 4K?
The IP HD handles HD (up to 1080p60) over 10G Ethernet; the IP 4K handles 4K (2160p60) channels over 25G Ethernet.
Which operating systems are supported?
macOS, Windows, and Linux, with support across major editing applications.
