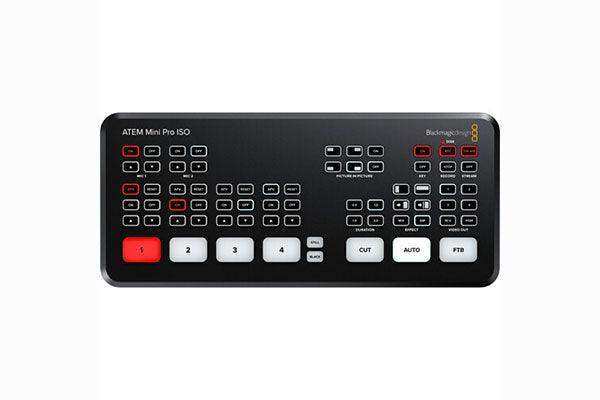

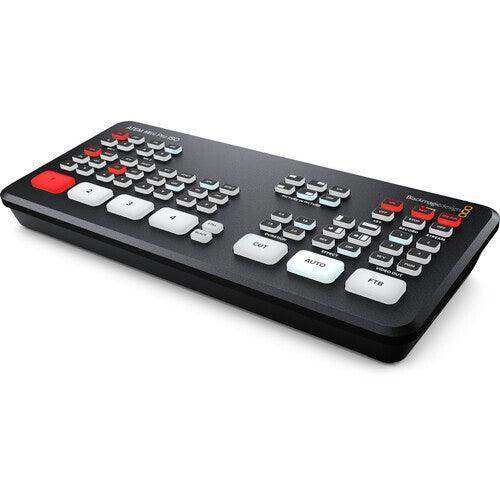

Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher - SWATEMMINIBPRISO

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: SWATEMMINIBPRISO
No reviews
Price:
$495.00

Description

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet via Ethernet output. It features a USB output that allows you to record the program output as well as record the individual HDMI inputs to an external USB drive (not included). In addition to recording the program stream and individual inputs, the ATEM Mini Pro ISO also records the embedded audio and analog audio inputs, generating a DaVinci Resolve project file of your live stream. This allows you to take your live production into DaVinci Resolve to make tweaks or adjustments using the source material that is already on your USB drive.

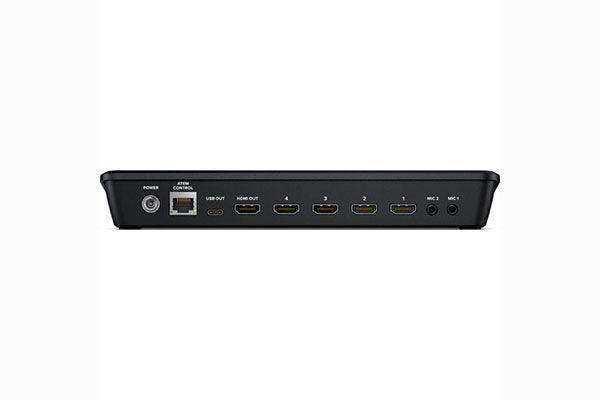

The ATEM Mini Pro ISO retains the same size, button layout, and rear panel interface connections as the ATEM Mini Pro, with new electronics that allow for the ISO recording and generation of the DaVinci project file. The ATEM Mini Pro ISO supports all the same features as the ATEM Mini Pro including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The ATEM Software Control Panel is used for control and configuration, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. And you can use the panel to set up streaming to an optional Blackmagic Design Streaming Bridge anywhere in the world, as long as it is connected to the internet.

Transitions

 Available transitions include:
  • Cut: When you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.
  • Mix: The mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.
  • Dip: Just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.
  • Wipe: Built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened and can even have customized colored borders.
  • DVE: With the powerful built-in digital video effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.
  • Connecting a USB drive to the ATEM Mini Pro ISO's USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program
  • The device has the same footprint, layout, and connections of the ATEM Mini Pro
  • Stream video up to 1080p HD
  • Quick stream, on-air, and record buttons
  • Hardware encoder so there's no need for additional streaming software
  • Control and configure timecode, stream status
  • Full support and control features for BMPCC 6K/4K cameras
  • Simultaneous USB recording
  • Integration with MultiDock for live hard drive switching
  • Customize advanced settings with XML files
  • Software multiview with program previews, graphics, record status, on-air status, and audio meters
  • Program preview input and output buttons
  • Tally light control for BMPCC 6K/4K cameras
  • Automatic timecode sync for all cameras

Blackmagic Design ATEM Mini Pro Specs
Available M/E Layers 5 M/E
Effect Types 1 x DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys 1 x Chroma, DVE
2 x Luma
Generators 1 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing
Processing
Switching Type Pushbutton
Color Processing 10-Bit 4:2:2 YUV
Input
Number of Video Input Sources 4
Video Inputs 4 x HDMI Female
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input)
Output
Video Output Channels 1
Video Outputs 1 x HDMI
Output Video Format HDMI / RJ45 (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output HDMI: 2-Channel (per Output)
Multiview Output Yes
Monitor Output 1 x HDMI
Connectivity
Other I/O 1 x RJ45 LAN, Sync, Tally, Timecode, Firmware, Control Input/Output
1 x USB-C Firmware, Control Input/Output
IP Video H.264:
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams
Hardware
OS Compatibility macOS 10.14 or Later
Windows 10
*As of August, 2020: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power I/O 1 x Barrel (12 VDC) Input
Power Consumption 36 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 90%
General
Dimensions 9.35 x 4.07 x 1.38" / 23.75 x 10.34 x 3.51 cm
Weight 19.4 oz / 550 g
Packaging Info
Package Weight 2.315 lb
Box Dimensions (LxWxH) 11.05 x 5.7 x 4.55"
