Blackmagic Design ATEM Mini Pro – HDMI Live Stream Switcher
Product Overview

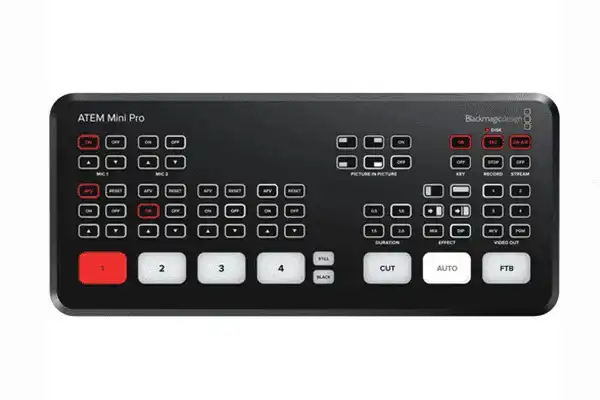

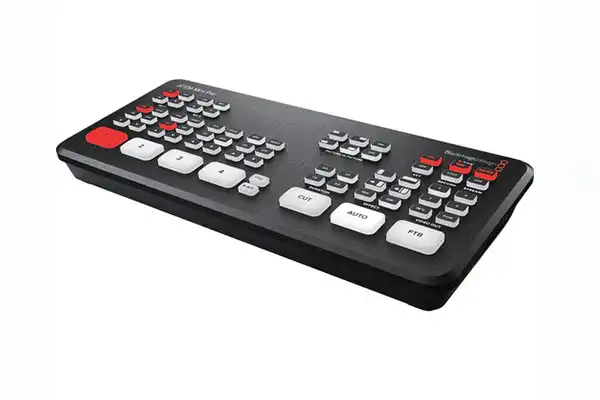

The Blackmagic Design ATEM Mini Pro is a four-input HDMI live streaming switcher with an integrated control panel for multicamera streaming up to 1080p HD. A built-in hardware encoder streams directly over Ethernet with no streaming computer, and it records to USB drives at the same time. As a compact multicamera streaming switcher, it suits corporate, education, gaming, and broadcast feeds from HDMI cameras and computers.
Product Description

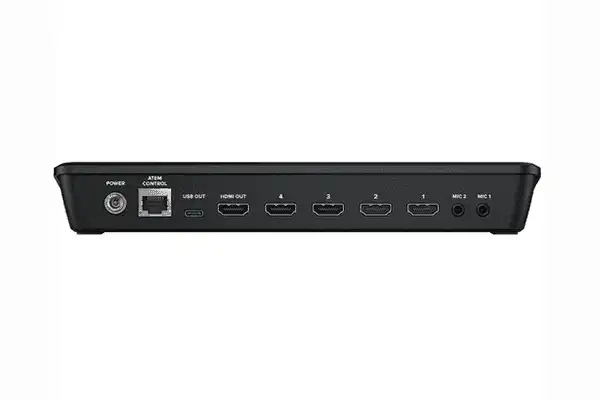

The ATEM Mini Pro builds on the ATEM Mini with a built-in hardware encoder, direct live streaming, and simultaneous USB recording. Four HDMI inputs accept sources up to 1080p HD, an HDMI output drives a projector or multiview monitor, a USB-C output records HD video or acts as a webcam source, and an RJ45 10/100/1000 Ethernet port handles direct streaming, control, and updates. Because the encoder is built in, no additional streaming software is required, and the frame rate can be adjusted to match stream quality. Added front-panel buttons provide quick record, on-air, and stream control, plus program-preview selection per source; recording can hot-swap drives using the Blackmagic MultiDock for fast handoff to editing. The switcher includes an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, pattern and color generators, and media-player support for up to 20 fill/key stills (PNG, TGA, BMP, JPEG, TIFF). The free ATEM Software Control configures the unit over USB or Ethernet and monitors data rate, audio meters, and status; engineers can apply settings in bulk via XML, and the color controls mirror DaVinci Resolve. It also supports tally and timecode sync for Blackmagic Pocket Cinema Camera 6K and 4K sources.
Key Features
- Four HDMI inputs — Switches up to four 1080p HD sources such as cameras, computers, and consoles.
- Built-in hardware encoder — Streams directly over Ethernet with no separate streaming software.
- Simultaneous USB recording — Records the program to USB while streaming, with MultiDock hot-swap.
- On-air, stream, and record buttons — Dedicated controls plus per-source program-preview selection.
- Keying and effects — Advanced chroma keyer, two luma keyers, DVE transition keyer, pattern and color generators.
- Media player — Up to 20 fill/key stills in common image formats.
- USB-C webcam output — Presents the program as a webcam source for conferencing platforms.
- BMPCC integration — Tally and timecode sync for Pocket Cinema Camera 6K and 4K.
Typical Applications
- All-hands room — Multicamera company streaming with a webcam output and USB recording.
- Training room — Recording and streaming of lessons and presentations from several HDMI sources.
- House of worship — Affordable multicamera streaming of services to the internet.
Technical Specifications
| Model | SWATEMMINIBPR |
| Video Inputs | 4× HDMI (up to 1080p HD) |
| Video Outputs | 1× HDMI (program/multiview), 1× USB-C (record/webcam) |
| Network | 1× RJ45 10/100/1000 Ethernet (streaming, control, updates) |
| Streaming | Built-in hardware encoder; up to 1080p HD |
| Keyers / Effects | Advanced chroma keyer, 2× luma keyers, DVE transition keyer, pattern and color generators |
| Media Player | Up to 20 stills (PNG, TGA, BMP, JPEG, TIFF) |
| Control | ATEM Software Control over USB or Ethernet; XML configuration |
Frequently Asked Questions
Do I need streaming software?
No. The ATEM Mini Pro has a built-in hardware encoder and streams directly over its Ethernet port.
Can it record while streaming?
Yes. It records to a connected USB drive at the same time as streaming, and supports drive hot-swapping with the Blackmagic MultiDock.
How many cameras can it switch?
Up to four HDMI sources at up to 1080p HD.
Can it act as a webcam for conferencing?
Yes. The USB-C output presents the program as a webcam source for platforms like Zoom and Teams.
