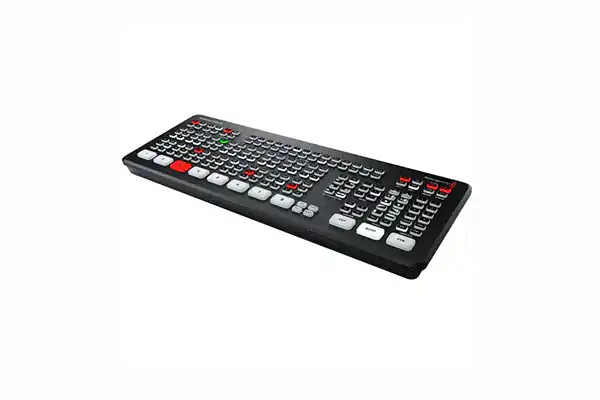

Blackmagic Design ATEM Mini Extreme – 8-Input HDMI Switcher

Product Overview

The Blackmagic Design ATEM Mini Extreme is an eight-input HDMI live production switcher with an integrated control panel, built for multicamera live streaming and webcam production. Its eight HDMI inputs accept HD signals up to 1080p60, each with discrete frame-rate and format conversion plus re-syncing for seamless switching between cameras, consoles, and computers. As an 8-input HDMI live production switcher, it streams over RTMP or outputs the program as a USB webcam to platforms like Zoom, Teams, and YouTube.

Product Description

The ATEM Mini Extreme switches, adds effects, color grades, and keys in real time from the control surface or the free software control panel. Eight independent HDMI inputs support popular HD formats to 1080p60, and per-input frame-rate/format converters allow non-matching pro and consumer sources to be mixed cleanly. It supports up to nine layers with four upstream and two downstream keyers (up to four chroma and four linear keyers), two DVEs with borders and drop shadow, five pattern generators, and two color generators. For monitoring, the HDMI output offers up to a 16-screen multiview showing program, preview, all eight inputs, SuperSource, clean feed, media player, and stream/record status. As a multicamera HDMI streaming switcher, it streams over Ethernet via RTMP or presents the program as a USB webcam source; for location work it can tether to a 4G/5G phone over USB as a primary or backup connection, and powers the phone while connected. CCU functions control Blackmagic Studio and URSA cameras, and the switcher can control Pocket Cinema Camera 4K/6K settings — iris, gain, focus, detail, zoom, and color — over HDMI.

Key Features

• Eight HDMI inputs — Switches up to eight HD sources to 1080p60 with per-input conversion and re-sync.
• RTMP streaming and USB webcam out — Streams over Ethernet or appears as a webcam to conferencing and streaming software.
• 4G/5G phone tethering — Connects a phone over USB for mobile data as a primary or backup link, powering the phone.
• Up to 16-view multiview — Monitors program, preview, all inputs, SuperSource, and status on one HDMI output.
• Keying and effects — Up to nine layers, 4 upstream / 2 downstream keyers, chroma and linear keyers, two DVEs.
• Camera control — CCU control of Blackmagic Studio/URSA cameras and Pocket Cinema Camera 4K/6K over HDMI.
• Integrated control surface — Large source buttons plus audio, record, stream, and output-select controls.

Typical Applications

• All-hands room — Multicamera company streaming with a webcam output for conferencing platforms.
• Training room — Streaming and recording lessons from multiple HDMI sources.
• House of worship — Multicamera streaming of services with keying and multiview.
• Auditorium — Portable live event switching with phone-tether backup for streaming.

Technical Specifications

Frequently Asked Questions

How many cameras can it switch?
Eight HDMI sources at up to 1080p60, with per-input conversion so mismatched sources switch cleanly.

Can it act as a webcam?
Yes. The USB-C output presents the switched program as a webcam input to Zoom, Teams, Skype, OBS, and similar software.

What happens if my wired internet drops mid-stream?
You can tether a 4G/5G phone over USB; the switcher will fail over to the phone as the primary connection and powers the phone while connected.

Can it control my cameras?
Yes. It provides CCU control of Blackmagic Studio/URSA cameras and can control Pocket Cinema Camera 4K/6K settings over HDMI.
