Blackmagic Design ATEM 2 M/E Constellation 4K – 20-Input Switcher
Product Overview
The Blackmagic Design ATEM 2 M/E Constellation 4K is an advanced 2 M/E Ultra HD live production switcher with 20 standards-converted 12G-SDI inputs, 12 12G-SDI aux outputs, 8 ATEM Advanced Keyers, two multiviews, two DVEs, and a SuperSource processor for a total of 6 DVEs. It's built for demanding multi-camera live production with a built-in control panel and Fairlight audio.
Product Description
Part of the ATEM Constellation family — Blackmagic's most powerful HD and 4K live production switchers — the 2 M/E model offers 20 inputs, each with a full standards converter so mixed-format sources just work. It includes ATEM Advanced Chroma Keyers, media players, dual multiviews, and a SuperSource multi-layer processor, plus a built-in Fairlight audio mixer with a compressor, limiter, 6-band parametric EQ, and expander on every input. The free ATEM Software Control is included, and you can add a 1 M/E, 2 M/E, or 4 M/E ATEM Advanced Panel.

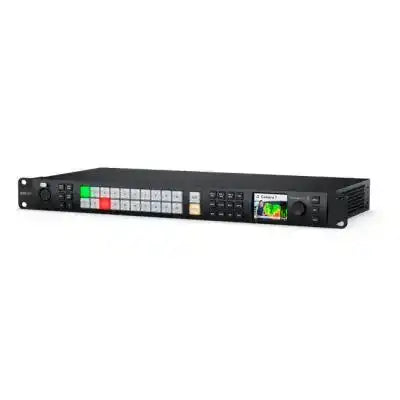

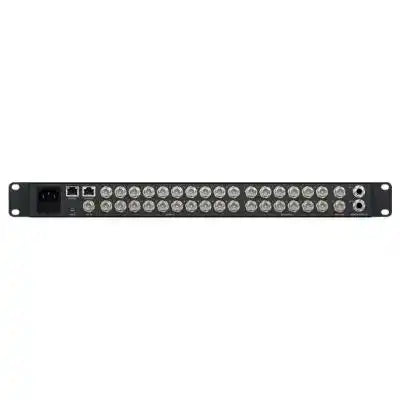

The compact rack-mount chassis has a built-in control panel for walk-up operation — critical during setup or emergencies — with a large LCD for program output and on-screen menus. The rear panel carries 12G-SDI inputs, aux outputs, balanced audio, and Ethernet control, and the switcher runs quietly thanks to a high-efficiency thermal system. ATEM Constellation uses professional program/preview operation, the same two-step workflow used by broadcasters, so sources are confirmed on preview before being cut to air. Front-panel access includes keyer, media, and fade-to-black control plus a 5-pin talkback headset connector.
Key Features
- 20× 12G-SDI inputs — Each with a dedicated standards converter.
- 12× 12G-SDI aux outputs — Independently routable feeds.
- 8 ATEM Advanced Keyers — Chroma, luma, pattern, and DVE keying.
- SuperSource + 2 DVEs — 6 DVEs total for multi-layer compositions.
- Two multiviews — Monitor up to 32 views across two displays.
- Fairlight audio mixer — 6-band EQ, compressor, limiter, expander per input.
- Built-in control panel — Walk-up operation with LCD and talkback.
- Program/preview switching — Broadcast-standard two-step workflow.
Typical Applications
- House of worship — Professional multi-camera services with a volunteer-friendly workflow.
- Broadcast studio — News, sports, and virtual sets with multiple keyers.
- Auditorium and live events — Concerts and festivals with cameras across the stage.
- Training rooms — Broadcast-career training on program/preview switching.
- All-hands spaces — Large-scale internal broadcasts and multi-feed events.
Technical Specifications
| Model | SWATEMSCN2/2ME2/4K |
| M/E Rows | 2 M/E |
| Video Inputs | 20× 12G-SDI (per-input standards conversion) |
| Aux Outputs | 12× 12G-SDI (independently routable) |
| Keyers | 8 ATEM Advanced Keyers |
| DVE | 2 DVEs + SuperSource (6 DVEs total) |
| Multiview | 2 independent multiviews |
| Audio Mixer | Fairlight (6-band EQ, compressor, limiter, expander per input) |
| Control | Front panel, ATEM Software Control, optional ATEM Advanced Panel |
FAQ
How does this compare to the 1 M/E and 4 M/E models? The 2 M/E has 20 inputs, 8 keyers, and one SuperSource; the 1 M/E has 10 inputs and 4 keyers; the 4 M/E has 40 inputs, 16 keyers, and dual SuperSource.
Do all inputs handle different video standards? Yes — each of the 20 12G-SDI inputs has its own standards converter.
What audio processing is built in? A Fairlight mixer with 6-band parametric EQ, compressor, limiter, noise gate, and expander on each input.
Can I add a hardware panel? Yes — the free ATEM Software Control is included and a 1/2/4 M/E ATEM Advanced Panel can be added.
Are there hidden license fees? No — all features are enabled at purchase.
