Blackmagic Design ATEM 2 M/E Advanced Panel 30 – Control Panel
Product Overview

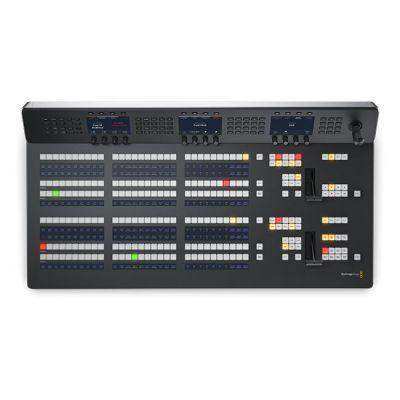

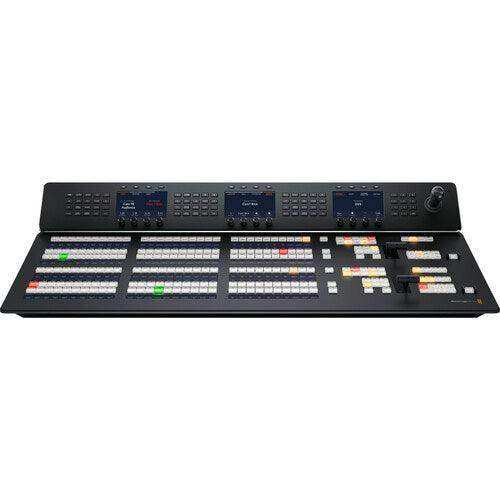

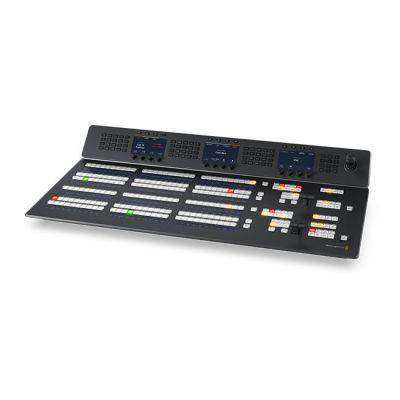

The Blackmagic Design ATEM 2 M/E Advanced Panel 30 is a professional hardware control panel for ATEM Constellation HD switchers. It features two M/E rows with 30 input buttons each, three system-control LCDs per row, two fader bars, and a 3-axis joystick, giving complex live productions a fast, tactile control surface. Broadcast-quality buttons, knobs, and customizable LCD labeling let operators reach every switcher feature at once.
Product Description
The ATEM 2 M/E Advanced Panel 30 provides hands-on control of ATEM Constellation HD switchers with two M/E rows of 30 input buttons, each row carrying an independent select bus and three system-control LCDs. Tri-color LED crosspoint buttons offer 30 direct crosspoints (60 shifted) with 6-row, 24-character LCD scribble strips for custom labels on every row and button. Operators get two fader bars, a 3-axis joystick for DVE and camera control, a numeric keypad, 12 on-air indicators, four DSK transition selectors (auto, cut, tie/preview), two-by-thirty dedicated macro buttons, eight transport-control buttons, and three 20-button menu controls. It connects over four 10/100/1000 BASE-T Ethernet ports with loop outputs for linking additional panels or a media-management computer, plus USB-C for firmware updates. Dual internal 100–240V AC supplies provide redundant power (120 W), and the panel works alongside the free ATEM Software Control for Mac and Windows.
Key Features
- Two M/E rows — 30 input buttons per row, each with an independent select bus.
- 30 direct / 60 shifted crosspoints — Tri-color LED buttons with 6-row, 24-character LCD labels.
- Three LCDs per row — System-control displays with custom labeling throughout.
- Full control surface — Two fader bars, 3-axis joystick, numeric keypad, transport controls.
- Macro buttons — 2×30 dedicated macro buttons for fast recall.
- 12 on-air indicators — Plus four auto/cut/tie DSK transition selectors.
- Ethernet with loop-out — 4× Gigabit Ethernet for linking panels or computers; USB-C firmware.
- Redundant power — Dual internal 100–240V AC supplies.
Typical Applications
- Broadcast studio — Dedicated control for complex, multi-M/E live switching.
- Auditorium — Hands-on control for large live events and performances.
- House of worship — Tactile multi-camera switching for services and streaming.
Technical Specifications
| Model | SWPANELADV2ME30 |
| Compatibility | ATEM Constellation HD switchers |
| M/E Rows | 2 (30 input buttons each) |
| Crosspoints | 30 direct / 60 shifted; tri-color LED |
| Labels | 6-row, 24-character LCD scribble strips |
| Displays | 3 system-control LCDs per row; 3×20-button menu control |
| Controls | 2 fader bars, 3-axis joystick, numeric keypad, 8 transport, 2×30 macros |
| Indicators | 12 on-air; 4× auto/cut/tie DSK selectors |

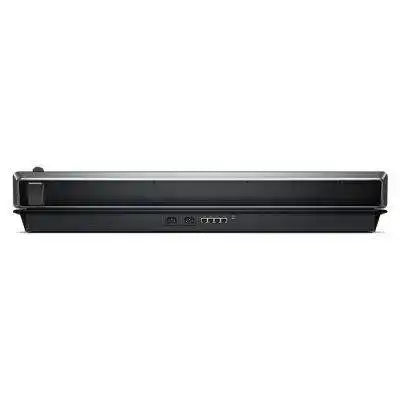

| Connections | 4× RJ45 GbE (loop-out); 1× USB-C (firmware) |
| Power | Dual internal 100–240V AC (redundant); 120 W |
| Dimensions | 36.3 × 19 × 5.9" / 92.2 × 48.3 × 15 cm |
| Weight | 33 lb / 15 kg |
What's in the Box
- ATEM 2 M/E Advanced Panel 30
- Welcome wallet with QR code for software download
Frequently Asked Questions
Which switchers does it control?
ATEM Constellation HD switchers, connected over Gigabit Ethernet.
How many M/E rows and crosspoints does it have?
Two M/E rows with 30 input buttons each — 30 direct crosspoints, expandable to 60 when shifted.
Does it have redundant power?
Yes — dual internal 100–240V AC supplies provide redundancy at 120 W total.
Can multiple panels or computers be linked?
Yes — four Gigabit Ethernet ports with loop outputs allow linking additional control panels or a media-management computer.
