Blackmagic Design ATEM 1 M/E Advanced Panel 10 – Control Panel
Product Overview

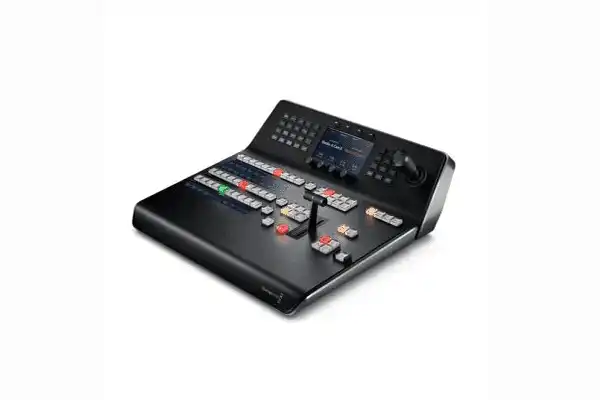

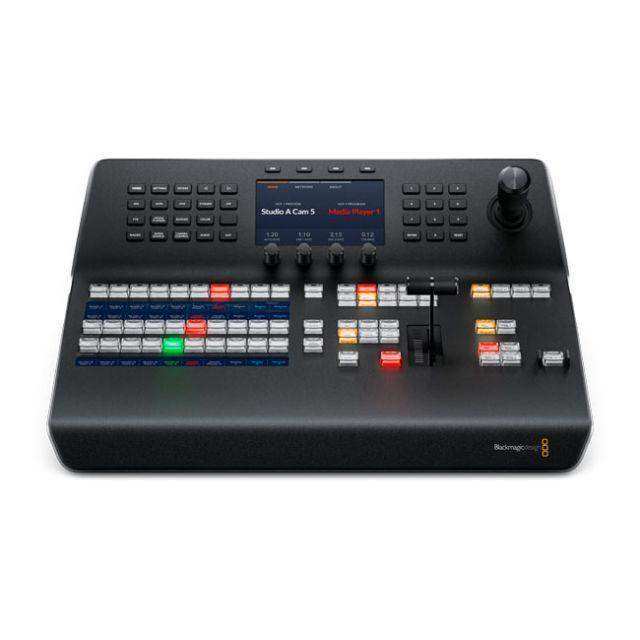

The Blackmagic Design ATEM 1 M/E Advanced Panel 10 is a professional hardware control panel for ATEM live production switchers. It combines a machined-metal chassis with curved, color-backlit buttons, three built-in LCDs, a weighted T-bar fader, and a 3-axis joystick for fast, tactile switching. With 10 direct crosspoints (20 when shifted), it gives demanding live-production environments a dedicated control surface that fits a standard equipment rack.
Product Description
The ATEM 1 M/E Advanced Panel 10 provides hands-on control of ATEM switchers with high-quality curved buttons designed to reduce incorrect presses and color backlighting to highlight important keys. Ten direct crosspoint buttons cover your sources, and shift buttons double that to control up to 20 inputs; tri-color LED crosspoint buttons carry 3-row, 24-character LCD scribble strips with fully customizable labels and colors. Three LCD menu displays and a 20-button menu control put switcher settings within reach, while a weighted T-bar fader, 3-axis joystick (for DVE and camera adjustments), numeric keypad, on-air indicators, and dedicated auto/cut/tie DSK transition selectors round out the surface. It connects to the switcher over Gigabit Ethernet (2x RJ45), with USB-C for firmware and both IEC AC and 4-pin XLR 12V DC power inputs. The compact, durable design fits a standard rack for shelf mounting in studios, broadcast trucks, mobile racks, and fly-away kits, and works alongside the free ATEM Software Control for Mac and Windows.
Key Features
- 10 direct / 20 shifted crosspoints — Control up to 20 inputs via shift buttons.
- LCD scribble strips — Tri-color LED crosspoint buttons with 3-row, 24-character labels.
- Three LCD menu displays — Plus 20-button menu control for switcher settings.
- Weighted T-bar and joystick — Smooth transitions and 3-axis DVE/camera control.
- Customizable buttons — Dynamic displays with custom labels and colors.
- DSK transition controls — Auto, cut, and tie/preview selectors with on-air indicators.
- Rack-friendly build — Machined-metal panel sized for standard equipment racks.
- Flexible connection and power — 2x Gigabit Ethernet, USB-C firmware, IEC AC and 12V DC.
Typical Applications
- Broadcast studio — Dedicated control surface for multi-camera live switching.
- Auditorium — Hands-on switching for live events and performances on large screens.
- House of worship — Tactile control for multi-camera services and streaming.
Technical Specifications
| Model | SWPANELADV1ME10 |
| Type | Hardware control panel for ATEM switchers |
| Crosspoints | 10 direct / 20 shifted |
| Controls | Weighted T-bar, 3-axis joystick, numeric keypad, DSK transition selectors |
| Displays | 3 LCD menu displays; LCD scribble strips (3-row, 24-char) |

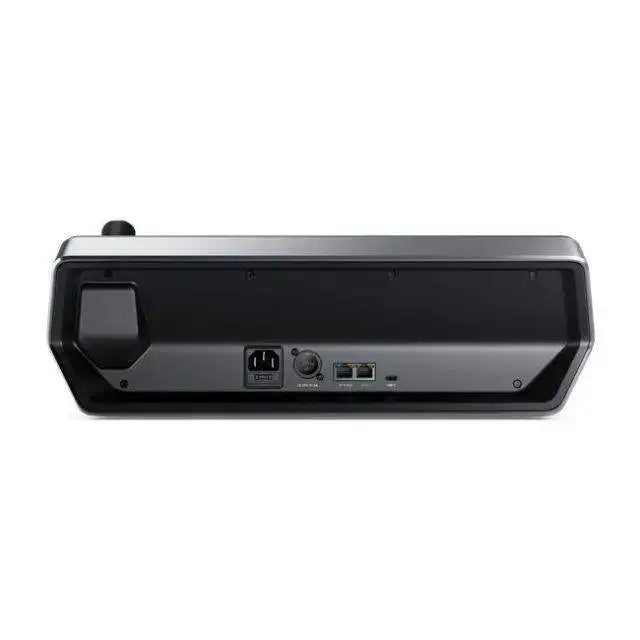

| Connections | 2× RJ45 GbE; 1× USB-C (firmware); IEC AC; 4-pin XLR 12V DC |
| Power | 110–240 VAC; 45 W |
| Dimensions | 15.3 × 16.9" / 38.9 × 43 cm |
| Weight | 12.7 lb / 5.7 kg |
Frequently Asked Questions
What does this panel control?
It's a hardware control surface for ATEM live production switchers, connecting over Gigabit Ethernet.
How many inputs can it switch?
10 direct crosspoints, expandable to 20 using the shift buttons.
Does it include video connections?
No — it's a control panel. Video I/O is handled by the ATEM switcher it controls; the panel connects via Ethernet.
Can I still use software control?
Yes — it works alongside the free ATEM Software Control for Mac and Windows.
