Black Box IC400A-R2 – USB 2.0 CATx Extender, 4-Port
Product Overview
The Black Box IC400A-R2 is a 4-port USB 2.0 extender over CATx that allows USB devices to be located up to 100 meters from their host computer using standard Cat5e or Cat6 cabling. Built for commercial AV and IT deployments requiring USB peripheral extension in conference rooms, training rooms, and corporate facilities, this extender eliminates the distance limitations of native USB while maintaining full USB 2.0 speeds for connected devices including cameras, microphones, touch panels, and interactive displays.
Product Description

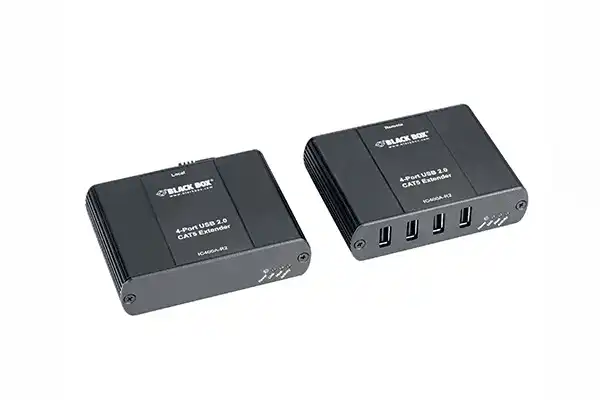

The IC400A-R2 consists of a local unit (connected to the host PC) and a remote unit (placed at the USB device location), connected by a single Cat5e or Cat6 cable. The system extends USB 2.0 at up to 480 Mbps across the full 100-meter span, making it practical for auditoriums, training rooms, house of worship installations, and any space where AV equipment needs to be physically separated from the control room or presenter location. Four USB 2.0 ports on the remote unit allow simultaneous connection of a webcam, microphone, touch controller, and additional peripheral without additional hubs. The extender is bus-powered from the host side, simplifying installation by reducing the need for local power outlets at the remote location in many configurations. This product integrates cleanly into AV systems using USB-based control systems, video conferencing codecs, and presentation technology. For USB cables, CATx cabling infrastructure, and complementary AV connectivity products, visit Creation Networks.
Key Features
- 4 USB 2.0 Ports at Remote Unit — Supports four simultaneous USB 2.0 devices at the remote location, suitable for webcams, audio interfaces, touch panels, and input devices.
- Up to 100-Meter Extension — Extends USB 2.0 over Cat5e/Cat6 cable at distances up to 100 meters (328 feet), well beyond the 5-meter native USB limit.
- USB 2.0 High-Speed Support — Maintains USB 2.0 protocol at up to 480 Mbps, compatible with cameras, audio devices, and HID peripherals.
- CATx Infrastructure Compatibility — Uses standard Cat5e or Cat6 structured cabling already present in most commercial buildings, avoiding dedicated coax or fiber runs.
- Bus-Powered Local Unit — Local transmitter unit draws power from the host USB port, reducing installation complexity in many deployments.
- Transparent USB Operation — No drivers required on Windows, macOS, or Linux; the extension is transparent to the operating system and connected applications.
- Commercial-Grade Build — Designed for permanent installation in racks, credenzas, or AV furniture in active commercial spaces.
Typical Applications
- Conference room
- Training room
- Boardroom
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Specification | Value |
|---|---|
| Model | IC400A-R2 |
| USB Version | USB 2.0 (High-Speed, 480 Mbps) |
| Number of Remote USB Ports | 4 |
| Maximum Extension Distance | 100 m (328 ft) over Cat5e/Cat6 |
| Cable Type | Cat5e or Cat6 (sold separately) |
| Power | Bus-powered (local unit); external power supply (remote unit) |
| OS Compatibility | Windows, macOS, Linux (driver-free) |
| USB Device Classes Supported | HID, Audio, Video, Mass Storage, and others |
Frequently Asked Questions
Can I connect a USB webcam and microphone simultaneously on the IC400A-R2?
Yes. The 4-port remote unit supports simultaneous connection of multiple USB device classes, including webcams, USB microphones, touch controllers, and HID devices. Total bandwidth is shared across all four ports up to USB 2.0 speeds.
What cable is required between the local and remote units?
The IC400A-R2 requires Cat5e or Cat6 UTP or STP cable between the local and remote units. Standard structured cabling terminated with RJ45 connectors is sufficient. Shielded cable is recommended in electrically noisy environments.
Does the remote unit need a local power supply?
The local (host-side) unit is bus-powered from the host computer's USB port. The remote unit may require a separate power supply depending on the power demands of the connected USB devices. A power supply is typically included or available as an accessory.
Is this extender compatible with video conferencing systems like Zoom Rooms or Microsoft Teams Rooms?
Yes. The IC400A-R2 is transparent to USB host software and works with USB cameras, speakerphones, and touch controllers used in Zoom Rooms, Teams Rooms, and similar unified communications platforms.
Can I daisy-chain multiple IC400A-R2 units to extend USB further than 100 meters?
Daisy-chaining USB extenders is generally not supported and can cause device enumeration and timing issues. For distances beyond 100 meters, consider fiber-based USB extension solutions.
