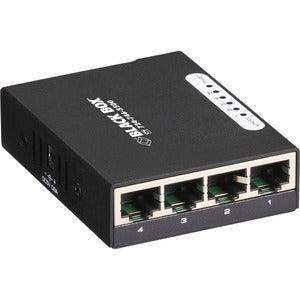

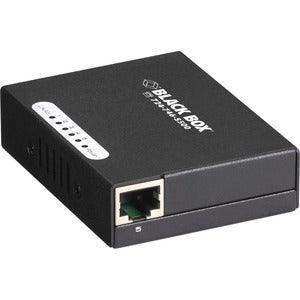

Black Box LBS005A – 5-Port Fast Ethernet Desktop Switch
Product Overview
The Black Box LBS005A is a compact 5-port Fast Ethernet (10/100Mbps) unmanaged desktop switch for small workgroup and AV equipment networking. It provides five auto-negotiating RJ-45 ports in a plug-and-play form factor suited for conference rooms, huddle spaces, wiring closets, and any location requiring a small shared Ethernet segment without switch configuration overhead.
Product Description
The LBS005A provides five 10/100BASE-TX auto-negotiating ports in a compact desktop housing for environments where a small, simple Ethernet switch is needed without configuration complexity. All five ports support auto-MDI/MDIX, eliminating the need for crossover cables. The switch operates as an unmanaged device — it forwards traffic based on MAC address learning with no VLAN, QoS, or management configuration required. The compact form factor makes it suitable for desktop deployments, AV equipment tables, and other space-limited locations where a small shared segment is needed. LED indicators on each port provide link and activity status at a glance. The switch is powered by a DC adapter and draws minimal power, appropriate for always-on deployment in shared spaces. For network switches, Gigabit infrastructure, and AV networking products, visit creationnetworks.net.
Key Features
- 5-Port Fast Ethernet — Five 10/100BASE-TX ports for small workgroup or AV equipment LAN segments.
- Auto-Negotiation and Auto-MDI/MDIX — Automatic speed, duplex, and cable type detection; straight-through or crossover cables both work.
- Unmanaged Plug-and-Play — No configuration software or management interface; connects and operates immediately.
- Compact Desktop Form Factor — Small footprint suitable for desk surfaces, AV equipment shelves, and tight spaces.
- Per-Port LED Indicators — Link and activity LEDs on each port for quick visual status confirmation.
- Low Power Consumption — Minimal draw appropriate for continuous operation in shared or conference spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | LBS005A |
| Port Count | 5 |
| Port Speed | 10/100BASE-TX (Fast Ethernet) |
| Connector | RJ-45 |
| Auto-Negotiation | Yes |
| Auto-MDI/MDIX | Yes |
| Management | Unmanaged |
| Form Factor | Desktop |
| Brand | Black Box |
